Home » Dahua ARM2C0-P-W 2-Channel Alarm Expansion Module, PoE, Wired-to-Wireless Bridge

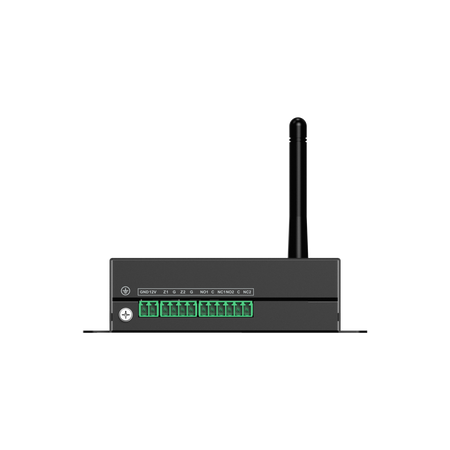

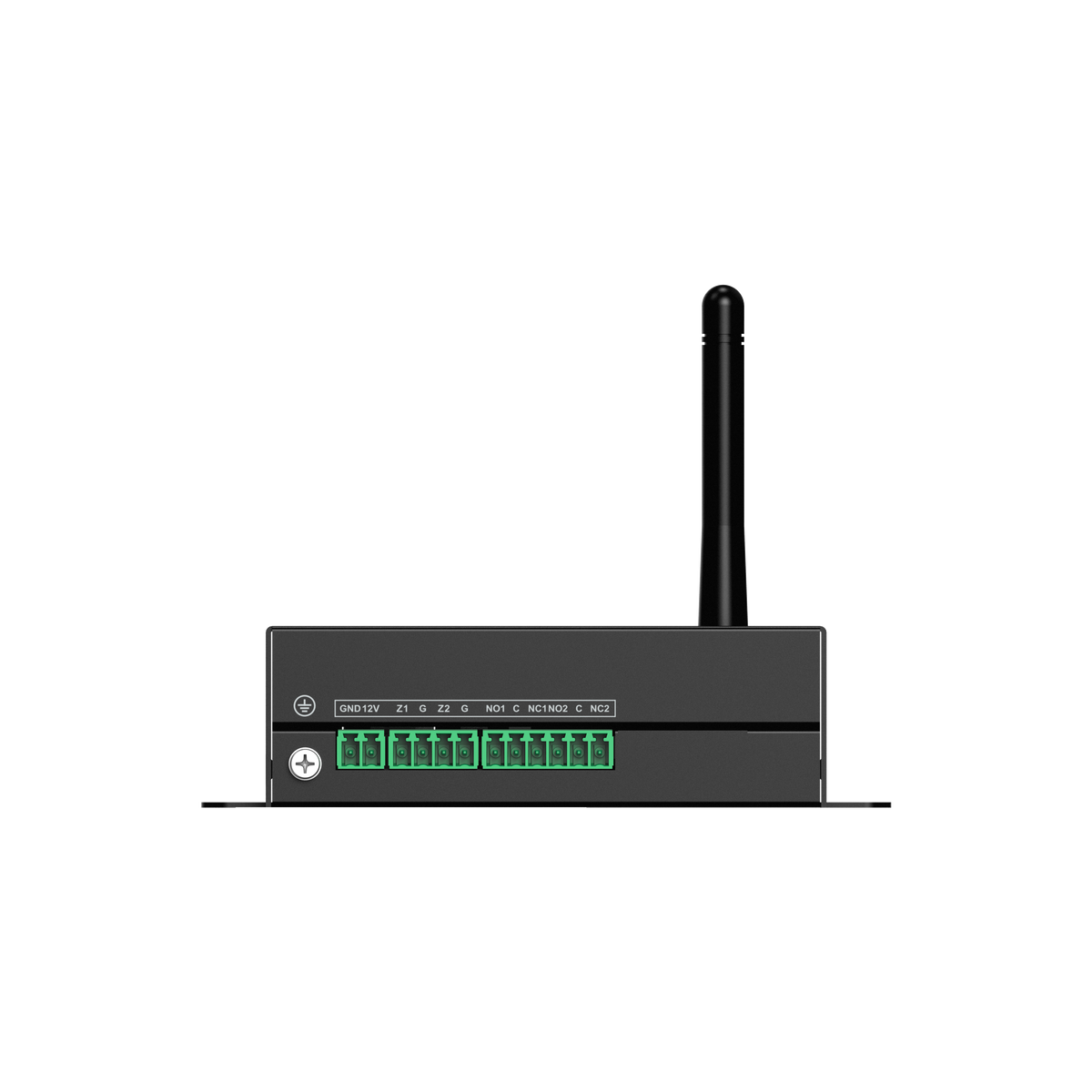

DAHUA ARM2C0-P-W Alarm Expansion Module
DAHUA ARM2C0-P-W Alarm Expansion Module
icctvzone

Dahua ARM2C0-P-W 2-Channel Alarm Expansion Module, PoE, Wired-to-Wireless Bridge

In stock
SKU: ARM2C0-P-W
$1,000,000.00

This is a placeholder price. Please contact us for a quote.

Lead time & order confirmation

Most orders ship within 30 working days. Stock status shown on this page is not real-time.

After you place your order, please check the order confirmation email from our team. We will confirm stock, lead time and shipping before dispatch. If an item is out of stock, we may propose a compatible replacement model for your approval.

Working to a project deadline? Contact us before ordering.

Need help with this product?

Our team can confirm specifications, stock and pricing before you order.

Email sales@icctvzone.com or contact us.
Authentic productsGenuine brands, traceable supply
Worldwide shippingTracked delivery to 200+ countries
Technical supportPre-sales and after-sales help
Daniel Levent
Daniel LeventSenior Engineer SalesOnline now

Need help choosing the right model? I can confirm specifications, stock and lead time before you order.

Email meContact us

ARM2C0-P-W

Alarm Expansion Module

> 12 VDC and standard PoE power supply.
> 2-channel alarm input onboard, and 2-channel relay output onboard.
> Multiple types of zone loops such as NO/NC, 1EOL, 2EOL, and 3EOL.
> Supports 3 EOLR values (2.7 K, 4.7 K, and 6.8 K).
> Converts the wireless data form wireless peripherals into TCP/IP net working data sent to the wired control panel.
> Supports up to 1024 event buffers when the connection with the control panel is lost.
> Remote update.



Product Data

Port

Alarm Input

2-channel dry contact input onboard
Multiple types of zone loops: NO/NC, 1EOL, 2EOL, 3EOL
3 EOLR values: 2.7 K, 4.7 K and 6.8 K

Alarm Output

2-channel relay output onboard (≤30 VDC, 1 A, resistive load only)

Wireless Peripheral

A single module supports up to 16 wireless peripherals, including sirens (no more than 6), detectors (door detectors, IR, panic buttons, single-channel input modules), and keyfobs.

Network Port

10 Mbps/100 Mbps self-adaptive Ethernet port, standard PoE

Function

Indicator Light

3×
Power supply indicator: Red
Wireless connection indicator: Green
Paring indicator: Green

Button

2×, a pairing button and a button to restore the device to its factory settings

Offline Cache

Max. 1024 buffer data

Remote Update

Yes

Network Protocol

TCP/IP

Tamper

Case tamper detection

Signal Strength

Detects the wireless signal strength through the alarm controller webpage

Power Failure Protection for Configured Parameters

Yes

Technical

Scenario

Indoors

Operating Current

130 mA

Alarm Current

160 mA

Wireless

Carrier Frequency

433.1 MHz–434.6 MHz

Communication Mechanism

Two-way communication

Communication Distance

Up to 2 km (6,561.68 ft) in an open space

Encryption Mode

AES128

Frequency Hopping

Yes

General

Power Supply

12 VDC/PoE (802.3af)

Operating Temperature

–10 °C to +55 °C (+14 °F to +131 °F)

Operating Humidity

10%–90% (RH)

Product Dimensions

126.0 mm × 57.0 mm × 33.2 mm (4.96" × 2.24" × 1.31")

Net Weight

230 g (0.51 lb)

Gross Weight

390 g (0.84 lb)

Installation

Wall mount

Casing Material

Electro-galvanized sheet

Certifications

CE

Anti-corrosion Level

Basic Protection

Storage Temperature

–10 °C to +55 °C (+14 °F to +131 °F)

Storage Humidity

10%–90% (RH)

Packaging Dimensions

187.0 mm × 164.0 mm × 58.0 mm (7.36" × 6.46" × 2.28")

Order & Pricing Information for Surveillance Products

Please note the following important details when ordering surveillance products from ICCTVZONE:

  • Order confirmation: After you place an order, please check the confirmation email from our team. We will confirm stock, lead time and shipping before dispatch.
  • Stock & replacements: Inventory status is not real-time. If an item is out of stock, we may propose a compatible replacement model for your approval.
  • Final pricing: Prices shown are indicative. The final price is confirmed on the Proforma Invoice (PI) after order confirmation.
  • Project-specific pricing: Some products are configured for project requirements; pricing may vary with quantity and specification.
  • Minimum order: A minimum order value may apply to non-stock or project items; our team will confirm before processing.
  • Shipping costs: Shipping is calculated separately and added to the order total.
  • Duties & taxes: Import duties, taxes and customs clearance fees are not included in the product price or shipping quote. These charges are the customer's responsibility.
  • Genuine products: We supply genuine products from leading brands with current firmware.
  • Technical support: Our engineers provide pre-sales and after-sales technical support.
  • Warranty: Warranty terms depend on the product and order type; we will confirm the applicable coverage in writing.

Questions? Contact sales@icctvzone.com.
Why this model

Product Features

What this model is for, what it does well, and what to confirm before it goes on a project.

Best for

Extending a wired alarm control panel with wireless sirens, detectors, panic buttons and keyfobs while adding two dry-contact inputs and two relay outputs.

Before you orderConfirm your control panel supports this module's TCP/IP integration and that your planned peripheral mix stays within 16 devices with no more than 6 sirens.
01
Wired-to-Wireless Bridge

Converts wireless data from paired peripherals into TCP/IP network data for your wired control panel, so legacy wiring keeps working alongside new wireless devices.

02
Flexible Zone Loops

Two dry-contact inputs accept NO/NC, 1EOL, 2EOL and 3EOL loops with 2.7 K, 4.7 K or 6.8 K end-of-line values to match your existing resistor setup.

03
Keeps Events on Outage

Up to 1024 events are buffered when the link to the control panel drops, and configured parameters survive power failure for cleaner incident review.
