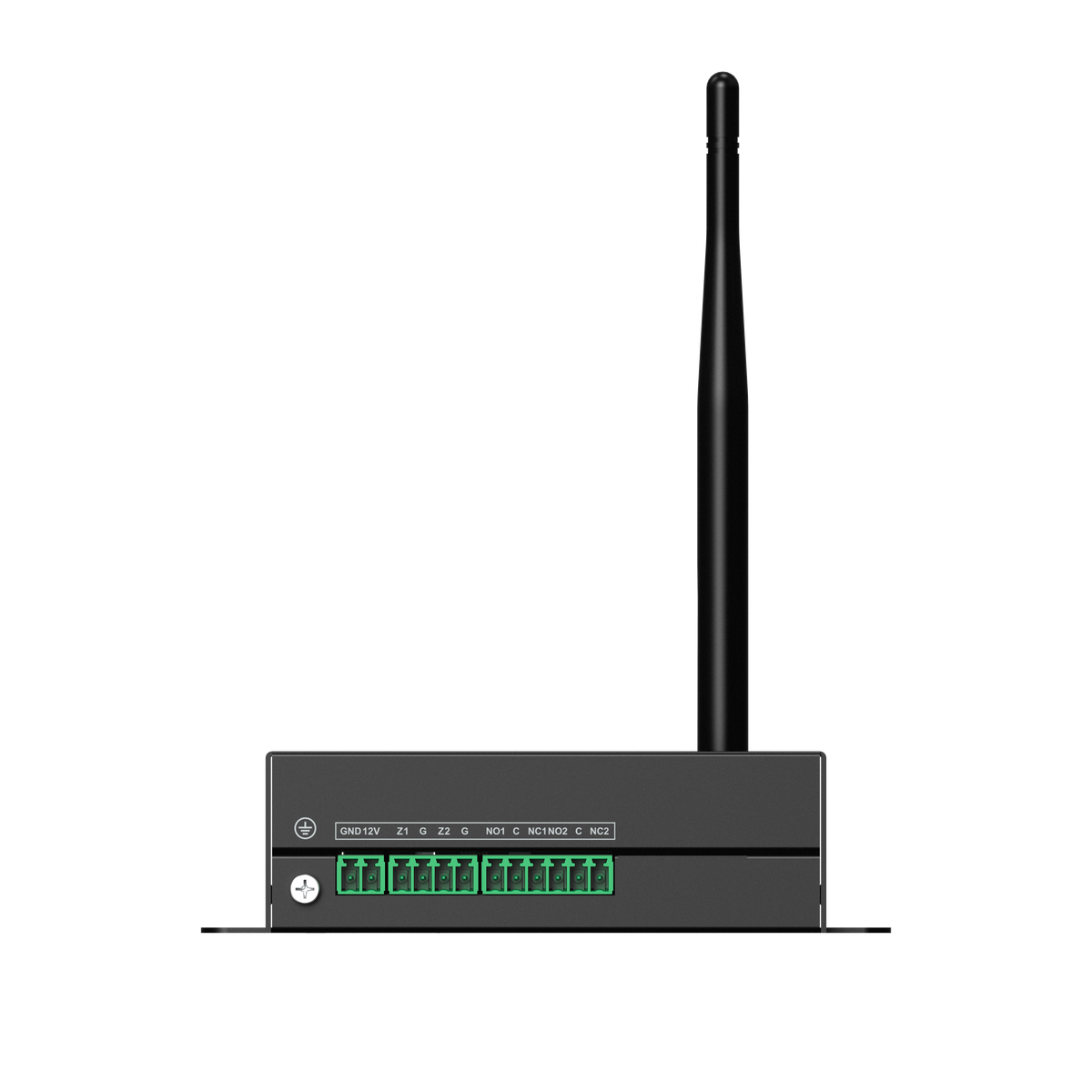

DAHUA ARM2C0-P-W(868) Alarm Expansion Module
DAHUA ARM2C0-P-W(868) Alarm Expansion Module
icctvzone

Dahua ARM2C0-P-W(868) 868MHz Wireless Alarm Expansion Module

In stock
SKU: ARM2C0-P-W(868)
$1,000,000.00

This is a placeholder price. Please contact us for a quote.

Lead time & order confirmation

Most orders ship within 30 working days. Stock status shown on this page is not real-time.

After you place your order, please check the order confirmation email from our team. We will confirm stock, lead time and shipping before dispatch. If an item is out of stock, we may propose a compatible replacement model for your approval.

Working to a project deadline? Contact us before ordering.

Need help with this product?

Our team can confirm specifications, stock and pricing before you order.

Email sales@icctvzone.com or contact us.
Authentic productsGenuine brands, traceable supply
Worldwide shippingTracked delivery to 200+ countries
Technical supportPre-sales and after-sales help
Daniel Levent
Daniel LeventSenior Engineer SalesOnline now

Need help choosing the right model? I can confirm specifications, stock and lead time before you order.

Email meContact us

ARM2C0-P-W(868)

Alarm Expansion Module

> 12 VDC and standard PoE power supply.
> 2-channel alarm input onboard, and 2-channel relay output onboard.
> Multiple types of zone loops such as NO/NC, 1EOL, 2EOL, and 3EOL.
> Supports 3 EOLR values (2.7 K, 4.7 K, and 6.8 K).
> Converts the wireless data form wireless peripherals into TCP/IP net working data sent to the wired control panel.
> Supports up to 1024 event buffers when the connection with the control panel is lost.
> Remote update.



Product Data

Port

Indicator Light

1 × green alarm indicator

Button

1 × power button

Function

Tamper Alarm

Yes

Remote Upgrade

Cloud update

Test Mode

Yes

Low Battery Alarm

Yes

Search

Signal strength detection

Wireless

Carrier Frequency

868.0 MHz–868.6 MHz

Communication Distance

Up to 1,000 m (3,280.84 ft) in an open space

Communication Mechanism

Two-way

Frequency Hopping

Yes

Encryption Mode

AES128

General

Power Supply

2 × CR123A batteries

Power Consumption

Max. 240 mW

Operating Temperature

–10 °C to +55 °C (+14 °F to +131 °F) (indoor)

Operating Humidity

10%–90% (RH).

Product Dimensions

81.0 mm × 81.0 mm × 26.0 mm (3.19" × 3.19" × 1.02") (L × W × H)

Packaging Dimensions

135.0 mm × 98.5 mm × 56.8 mm (5.31" × 3.88" × 2.24") (L × W × H)

Installation

Bracket mount

Net Weight

105 g (0.23 lb)

Gross Weight

175 g (0.39 lb)

Certifications

CE

Battery Life

2.5 years in working status (triggered twice every week and alerts 120 s for each triggering)

Sound Pressure

≥ 105 ± 3 dB\1M

Casing

PC + ABS

Temperature

Measuring Range

–15 °C to +65 °C (+18.8 °F to +149 °F) (indoor)

Measuring Precision

± 1 °C (± 33.8 °F)

Resolution

1 °C (33.8 °F)

Audio/Video Parameter

Volume Adjustment

3 volumn levels

Order & Pricing Information for Surveillance Products

Please note the following important details when ordering surveillance products from ICCTVZONE:

  • Order confirmation: After you place an order, please check the confirmation email from our team. We will confirm stock, lead time and shipping before dispatch.
  • Stock & replacements: Inventory status is not real-time. If an item is out of stock, we may propose a compatible replacement model for your approval.
  • Final pricing: Prices shown are indicative. The final price is confirmed on the Proforma Invoice (PI) after order confirmation.
  • Project-specific pricing: Some products are configured for project requirements; pricing may vary with quantity and specification.
  • Minimum order: A minimum order value may apply to non-stock or project items; our team will confirm before processing.
  • Shipping costs: Shipping is calculated separately and added to the order total.
  • Duties & taxes: Import duties, taxes and customs clearance fees are not included in the product price or shipping quote. These charges are the customer's responsibility.
  • Genuine products: We supply genuine products from leading brands with current firmware.
  • Technical support: Our engineers provide pre-sales and after-sales technical support.
  • Warranty: Warranty terms depend on the product and order type; we will confirm the applicable coverage in writing.

Questions? Contact sales@icctvzone.com.
Why this model

Product Features

What this model is for, what it does well, and what to confirm before it goes on a project.

Best for

Bridging 868MHz Dahua wireless alarm peripherals into a wired control panel over TCP/IP.

Before you orderConfirm your wired control panel accepts this 868MHz module and that you have the required 2 × CR123A batteries and mounting location ready.
01
Wireless to IP Bridge

Converts wireless peripheral data into TCP/IP networking data for delivery to the wired control panel.

02
Flexible Zone Wiring

Onboard 2-channel alarm input and 2-channel relay output support NO/NC, 1EOL, 2EOL and 3EOL zone loops.

03
Buffered Event Logging

Holds up to 1024 event buffers when the link to the control panel is lost, so records are not dropped.
