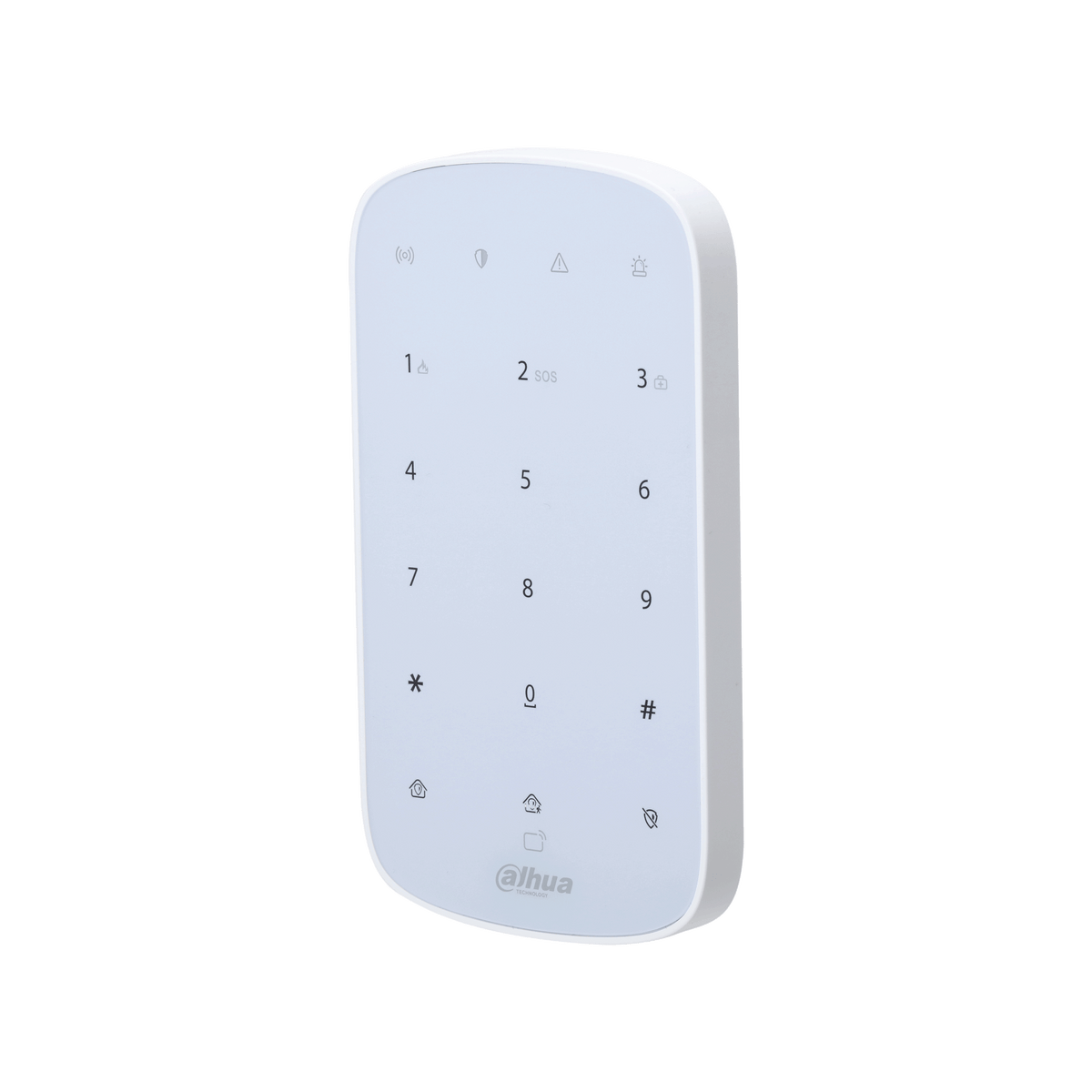

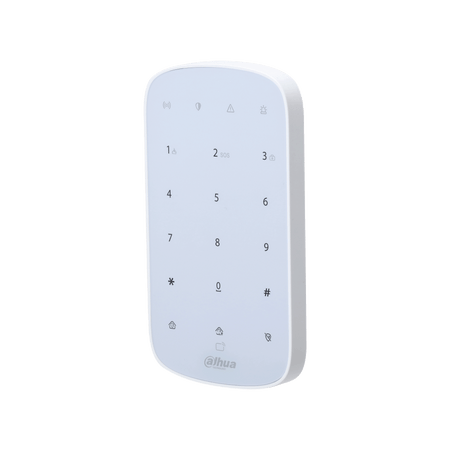

ARK30T-W2
Wireless Keypad
> Arm/Disarm with password or IC card.
> Supports signal strength detection to select suitable installation sites.
> Low battery alarm.
> Temperature measurement.
> Frequency hopping function and two-way communication.
> Cloud update and automatic recovery from update failure.
Product Data
|
Function |
|||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Indicator Light |
4 indicators (communication, arm/disarm, fault, and alarm) |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Button |
15 buttons (0–9, *, #, arm, disarm, and home arm) |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Buzzer |
1 × built-in buzzer |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Arm and Disarm |
Password; IC card |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Remote Update |
Cloud update |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Low Battery Detection |
Yes |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Tamper |
Yes |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Measuring Range (Temperature) |
–15 °C to +65 °C (+5 °F to +149 °F) (indoor) |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Measuring Accuracy |
1 °C (33.8 °F) |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
User Management |
32 users |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Wireless |
|||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Carrier Frequency |
433.1 MHz–434.6 MHz |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Communication Mechanism |
Two-way |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Communication Distance |
Up to 1,200 m (3,937.01 ft) in an open space |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Encryption Mode |
AES128 |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Frequency Hopping |
Yes |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
General |
|||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Power Supply |
4 × AA batteries |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Battery Life |
3 years (if the device is used to arm and disarm once a day) |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Power Consumption |
Max. 2.3 W |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Operating Temperature |
–10 °C to +55 °C (+14 °F to +131 °F) (indoor) |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Operating Humidity |
10%–90% (RH) |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Product Dimensions |
146.0 mm × 82.0 mm × 22.6 mm (5.75" × 3.23" × 0.89") |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Packaging Dimensions |
180.0 mm × 104.0 mm × 58.0 mm (7.07" × 4.09" × 2.28") |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Net Weight |
240 g (0.529 lb) (with battery) |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Gross Weight |
370 g (0.816 lb) |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Installation |
Wall mount |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Casing Material |
PC + ABS |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Certifications |
CE |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Order & Pricing Information for Surveillance Products
Please note the following important details when ordering surveillance products from ICCTVZONE:
- Order confirmation: After you place an order, please check the confirmation email from our team. We will confirm stock, lead time and shipping before dispatch.
- Stock & replacements: Inventory status is not real-time. If an item is out of stock, we may propose a compatible replacement model for your approval.
- Final pricing: Prices shown are indicative. The final price is confirmed on the Proforma Invoice (PI) after order confirmation.
- Project-specific pricing: Some products are configured for project requirements; pricing may vary with quantity and specification.
- Minimum order: A minimum order value may apply to non-stock or project items; our team will confirm before processing.
- Shipping costs: Shipping is calculated separately and added to the order total.
- Duties & taxes: Import duties, taxes and customs clearance fees are not included in the product price or shipping quote. These charges are the customer's responsibility.
- Genuine products: We supply genuine products from leading brands with current firmware.
- Technical support: Our engineers provide pre-sales and after-sales technical support.
- Warranty: Warranty terms depend on the product and order type; we will confirm the applicable coverage in writing.
Questions? Contact sales@icctvzone.com.
Product Features
What this model is for, what it does well, and what to confirm before it goes on a project.
Indoor alarm control where users arm and disarm a Dahua wireless system by password or IC card.
Users can arm or disarm the system with a password or IC card, simplifying daily access control for up to 32 users.
Dedicated medical, fire and emergency shortcuts let occupants raise the right alarm quickly when every second counts.
Built-in signal strength detection helps installers choose a suitable mounting spot for reliable two-way communication.
