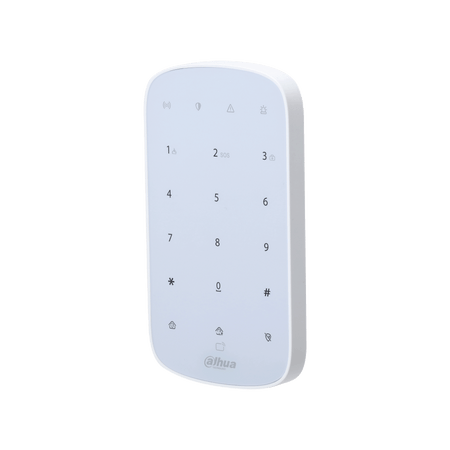

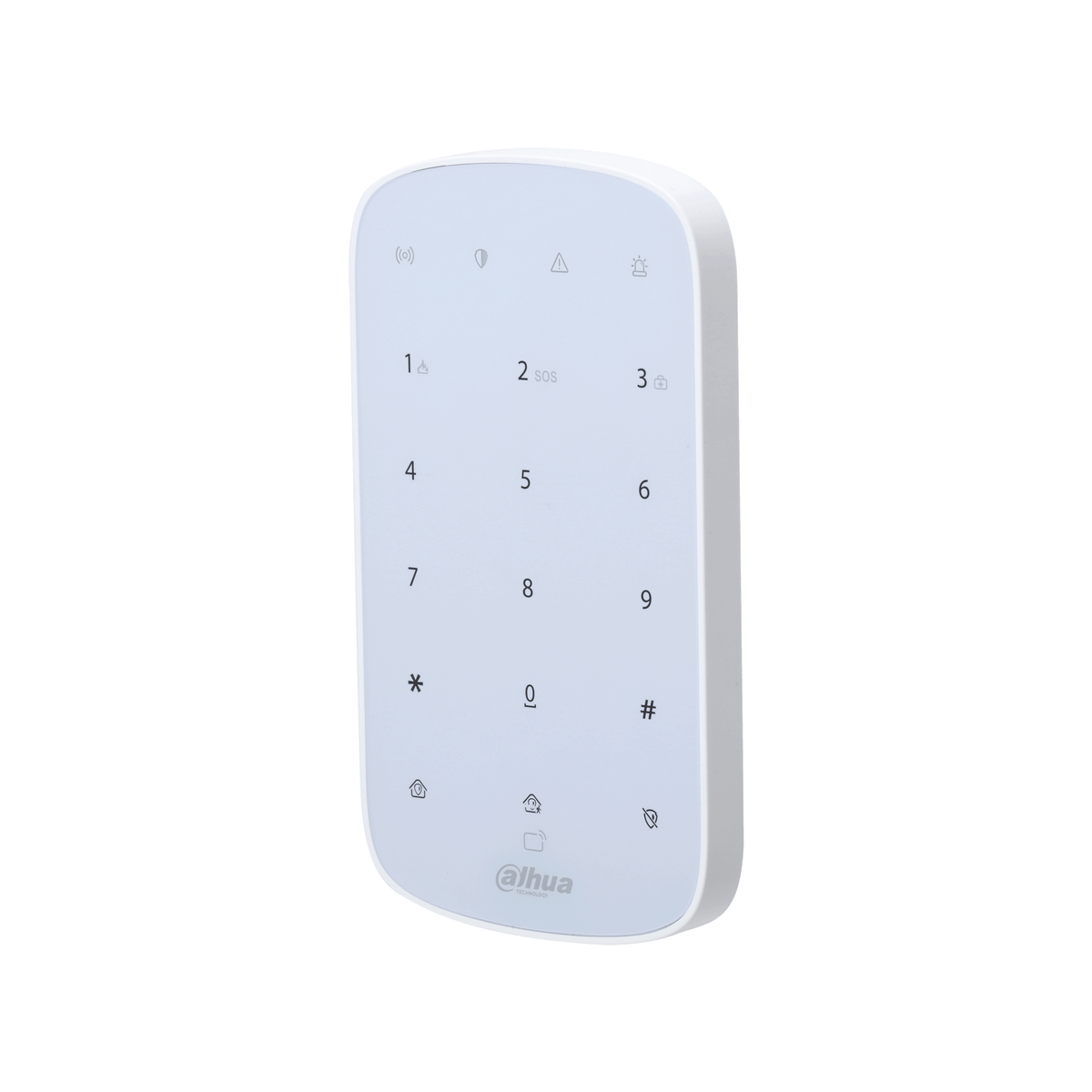

Dahua ARK30T-W2(868) 868MHz Wireless Keypad Alarm Accessory
This is a placeholder price. Please contact us for a quote.
Most orders ship within 30 working days. Stock status shown on this page is not real-time.
After you place your order, please check the order confirmation email from our team. We will confirm stock, lead time and shipping before dispatch. If an item is out of stock, we may propose a compatible replacement model for your approval.
Working to a project deadline? Contact us before ordering.
Our team can confirm specifications, stock and pricing before you order.
Email sales@icctvzone.com or contact us.
Couldn't load pickup availability
Need help choosing the right model? I can confirm specifications, stock and lead time before you order.
ARK30T-W2(868)
Wireless Keypad
> Arm/Disarm with password or IC card.
> Supports signal strength detection to select suitable installation sites.
> Low battery alarm.
> Temperature measurement.
> Frequency hopping function and two-way communication.
> Cloud update and automatic recovery from update failure.
Product Data
|
Function |
|||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Indicator Light |
4 indicators (communication, arm/disarm, fault, and alarm) |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Button |
15 buttons (0–9, *, #, arm, disarm, and home arm) |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Buzzer |
1 × built-in buzzer |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Arm and Disarm |
Password; IC card |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Remote Update |
Cloud update |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Low Battery Detection |
Yes |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Tamper |
Yes |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Measuring Range (Temperature) |
–15 °C to +65 °C (+5 °F to +149 °F) (indoor) |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Measuring Accuracy |
1 °C (33.8 °F) |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
User Management |
32 users |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Wireless |
|||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Carrier Frequency |
868.0 MHz–868.6 MHz |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Communication Mechanism |
Two-way |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Communication Distance |
Up to 1,600 m (5,249.34 ft) in an open space |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Encryption Mode |
AES128 |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Frequency Hopping |
Yes |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
General |
|||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Power Supply |
4 × AA batteries |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Battery Life |
3 years (if the device is used to arm and disarm once a day) |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Power Consumption |
Max. 2.3 W |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Operating Temperature |
–10 °C to +55 °C (+14 °F to +131 °F) (indoor) |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Operating Humidity |
10%–90% (RH) |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Product Dimensions |
146.0 mm × 82.0 mm × 22.6 mm (5.75" × 3.23" × 0.89") |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Packaging Dimensions |
180.0 mm × 104.0 mm × 58.0 mm (7.07" × 4.09" × 2.28") |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Net Weight |
240 g (0.529 lb) (with battery) |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Gross Weight |
370 g (0.816 lb) |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Installation |
Wall mount |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Casing Material |
PC + ABS |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Certifications |
CE |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Order & Pricing Information for Surveillance Products
Please note the following important details when ordering surveillance products from ICCTVZONE:
- Order confirmation: After you place an order, please check the confirmation email from our team. We will confirm stock, lead time and shipping before dispatch.
- Stock & replacements: Inventory status is not real-time. If an item is out of stock, we may propose a compatible replacement model for your approval.
- Final pricing: Prices shown are indicative. The final price is confirmed on the Proforma Invoice (PI) after order confirmation.
- Project-specific pricing: Some products are configured for project requirements; pricing may vary with quantity and specification.
- Minimum order: A minimum order value may apply to non-stock or project items; our team will confirm before processing.
- Shipping costs: Shipping is calculated separately and added to the order total.
- Duties & taxes: Import duties, taxes and customs clearance fees are not included in the product price or shipping quote. These charges are the customer's responsibility.
- Genuine products: We supply genuine products from leading brands with current firmware.
- Technical support: Our engineers provide pre-sales and after-sales technical support.
- Warranty: Warranty terms depend on the product and order type; we will confirm the applicable coverage in writing.
Questions? Contact sales@icctvzone.com.
Product Features
What this model is for, what it does well, and what to confirm before it goes on a project.
Indoor alarm arming and disarming by password or IC card in small commercial and residential sites using 868MHz Dahua wireless systems.
Arm and disarm by password or IC card so daily access stays quick without sharing codes across every user.
Dedicated medical, fire and emergency shortcuts give occupants a fast way to raise the right alarm at the keypad.
868MHz two-way communication with frequency hopping and AES128 encryption supports stable signalling up to 1,600 m in open space.
