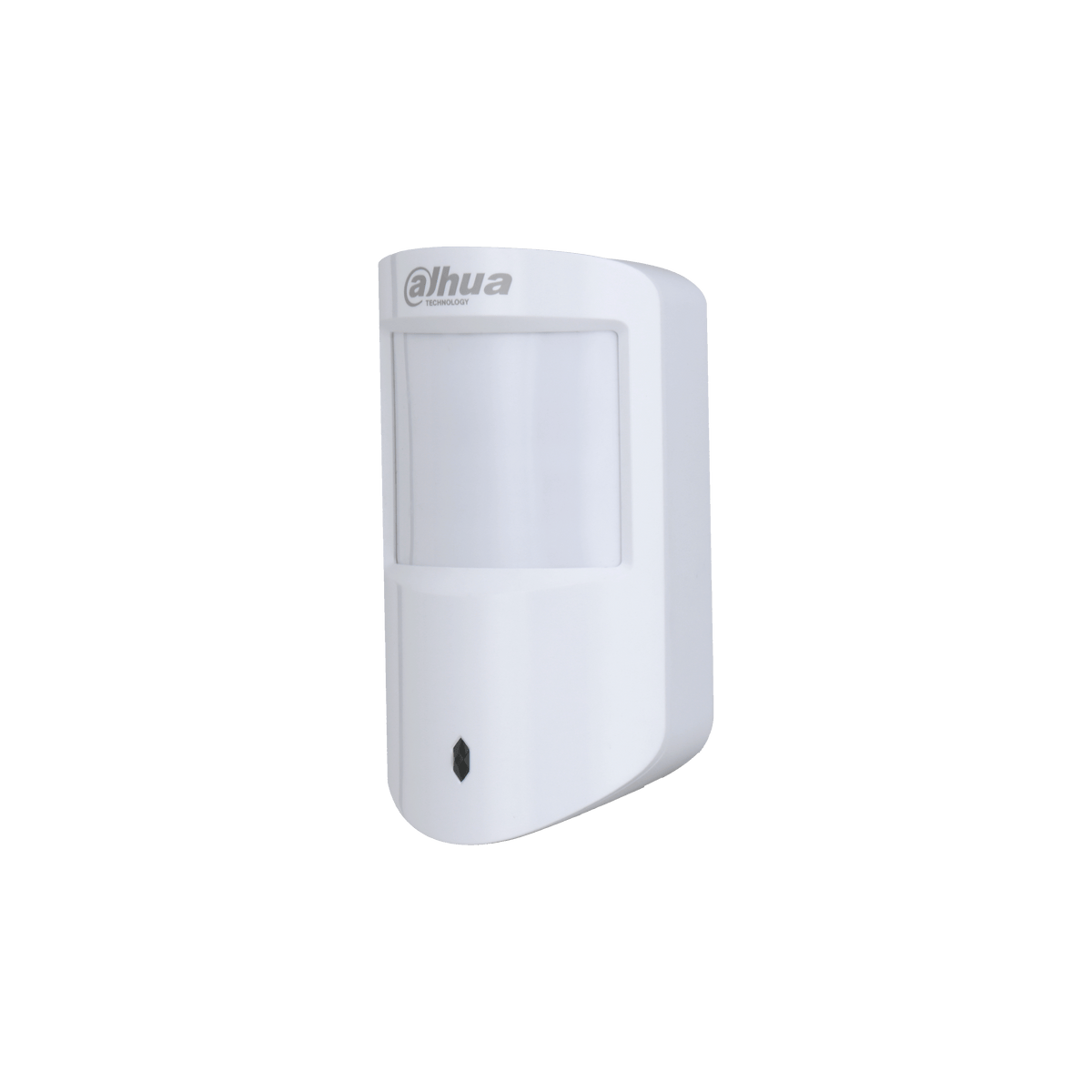

Dahua ARD1233-W2 Wireless PIR Detector, 12 m Pet-Immune Alarm Sensor
This is a placeholder price. Please contact us for a quote.
Most orders ship within 30 working days. Stock status shown on this page is not real-time.
After you place your order, please check the order confirmation email from our team. We will confirm stock, lead time and shipping before dispatch. If an item is out of stock, we may propose a compatible replacement model for your approval.
Working to a project deadline? Contact us before ordering.
Our team can confirm specifications, stock and pricing before you order.
Email sales@icctvzone.com or contact us.
Couldn't load pickup availability
Need help choosing the right model? I can confirm specifications, stock and lead time before you order.
ARD1233-W2
Wireless PIR detector
> Auto temperature compensation.
> 3-level sensitivity adjustment.
> Low battery alarm.
> Anti-tampering.
> Temperature measurement.
> Frequency hopping function and two-way communication technology ensure communication stability.
> Cloud update and automatic recovery from update failure.
Product Data
|
Port |
|||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Indicator Light |
1 × green alarm indicator |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Button |
1 × power button |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Function |
|||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Tamper Alarm |
Yes |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Remote Upgrade |
Cloud update |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Search |
Signal strength detection |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Test Mode |
Yes |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Low Battery Alarm |
Yes |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Wireless |
|||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Carrier Frequency |
433.1 MHz–434.6 MHz |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Communication Distance |
Up to 1,200 m (3,937.01 ft) in an open space |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Communication Mechanism |
Two-way |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Encryption Mode |
AES128 |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Frequency Hopping |
Yes |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
General |
|||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Power Supply |
CR123A battery |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Power Consumption |
Max. 75 mW |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Operating Temperature |
–10 °C to +55 °C (+14 °F to +131 °F) (indoor) |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Operating Humidity |
10%–90% (RH). |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Product Dimensions |
104.0 mm × 60.0 mm × 50.0 mm (4.09" × 2.36" × 1.97") (L × W × H) |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Packaging Dimensions |
135.0 mm × 98.5 mm × 56.8 mm (5.31" × 3.88" × 2.24") (L × W × H) |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Installation |
Wall mount |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Net Weight |
100 g (0.22 lb) |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Gross Weight |
170 g (0.37 lb) |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Certifications |
CE |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Battery Life |
4 years |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Casing |
PC + ABS |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Temperature |
|||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Measuring Range |
–15 °C to +65 °C (+18.8 °F to +149 °F) (indoor) |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Measuring Precision |
± 1 °C (± 33.8 °F) |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Resolution |
1 °C (33.8 °F) |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Specification |
|||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Detection Mode |
PIR |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Sensor |
Dual-element low-noise PIR sensor |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Detection Range |
12 m (39.37 ft) (90°) with installation height of 2.2 m (7.21 ft) |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Detection Speed |
0.3 m/s–3 m/s (0.98 ft/s–9.84 ft/s) |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Pet Alarm Level |
≤ 18 kg (39.68 lb) |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Pet Immunity Level |
2000 lx |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Two-way Digital Temperature Compensation |
Yes, no attenuation of detection distance in high temperature |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Sensitivity |
3 levels adjustable |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Order & Pricing Information for Surveillance Products
Please note the following important details when ordering surveillance products from ICCTVZONE:
- Order confirmation: After you place an order, please check the confirmation email from our team. We will confirm stock, lead time and shipping before dispatch.
- Stock & replacements: Inventory status is not real-time. If an item is out of stock, we may propose a compatible replacement model for your approval.
- Final pricing: Prices shown are indicative. The final price is confirmed on the Proforma Invoice (PI) after order confirmation.
- Project-specific pricing: Some products are configured for project requirements; pricing may vary with quantity and specification.
- Minimum order: A minimum order value may apply to non-stock or project items; our team will confirm before processing.
- Shipping costs: Shipping is calculated separately and added to the order total.
- Duties & taxes: Import duties, taxes and customs clearance fees are not included in the product price or shipping quote. These charges are the customer's responsibility.
- Genuine products: We supply genuine products from leading brands with current firmware.
- Technical support: Our engineers provide pre-sales and after-sales technical support.
- Warranty: Warranty terms depend on the product and order type; we will confirm the applicable coverage in writing.
Questions? Contact sales@icctvzone.com.
Product Features
What this model is for, what it does well, and what to confirm before it goes on a project.
Indoor intrusion detection in homes or small offices where pets are present and a wireless 433 MHz alarm hub is already installed.
Pet immunity helps reduce false alarms from animals while still catching human movement across the 12 m, 90° detection area.
Frequency hopping and two-way AES128 encrypted communication support a more reliable link with the alarm panel.
A CR123A battery rated for up to four years plus low battery alerts keeps maintenance visits to a minimum.
