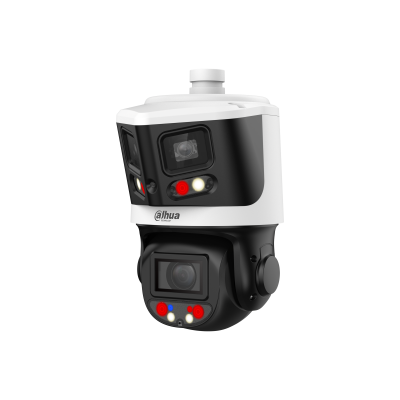

Dahua SDT3E410-8P-MB-A-PV1 8MP+4MP 10x Starlight TiOC Panoramic & PTZ Camera
Regular price
$10,000.00
This is a placeholder price. Please contact us for a quote.
Lead time & order confirmation
Most orders ship within 30 working days. Stock status shown on this page is not real-time.
After you place your order, please check the order confirmation email from our team. We will confirm stock, lead time and shipping before dispatch. If an item is out of stock, we may propose a compatible replacement model for your approval.
Working to a project deadline? Contact us before ordering.
Need help with this product?
Our team can confirm specifications, stock and pricing before you order.
Email sales@icctvzone.com or contact us.
Couldn't load pickup availability
Authentic productsGenuine brands, traceable supply
Worldwide shippingTracked delivery to 200+ countries
Technical supportPre-sales and after-sales help
Daniel LeventSenior Engineer SalesOnline now
Need help choosing the right model? I can confirm specifications, stock and lead time before you order.
Dahua SDT3E410-8P-MB-A-PV1 8MP+4MP 10x Starlight TiOC Panoramic & PTZ Camera – Active Deterrence, 500m DORI
Key Performance Highlights – Dual-Channel Panoramic + PTZ with Active Deterrence
- Dual-Channel Coverage: 8MP overview channel (1/2.8" CMOS, 2.8 mm, 180° H FOV) captures wide-area situational awareness; 4MP PTZ detail channel (1/2.8" CMOS, 4–40 mm motorized zoom, 10× optical zoom) provides close-up details.
- Active Deterrence – Red/Blue Lights & Siren: Built-in red and blue warning lights (adjustable flash duration/frequency) + 11 built-in voice alarms (plus 10 custom imports) for real-time threat intervention.
- Smart Dual Light Illumination: Overview: 30 m IR + 30 m white light; PTZ: 70 m IR + 30 m white light – optimal night visibility for both channels.
- Advanced AI & Tracking: Deep learning human/vehicle classification, IVS perimeter protection, Auto Tracking Lite / WizTracking (Xinghan AI-driven human tracking), relay tracking and linkage tracking (X-SPANS series), AcuPick for fast target search.
- Face Detection & Auto Patrol: PTZ channel supports face detection (6 attributes, 8 expressions). After IVS alarm, can link up to 5 presets/scans for auto patrol.
- Extreme DORI & Rugged Protection: Tele end detection up to 500 m (1,640 ft). IP66 weatherproof, TVS 6000V surge protection, –30°C to +60°C operation.
- Two-Way Talk & Flexible PTZ: Built-in mic and speaker for real-time communication. PTZ: pan 0–345°, tilt -10–90°; manual speed up to 80°/s.
- Smart Encoding & Storage: Smart H.265+/H.264+, supports Micro SD up to 512 GB, FTP, NAS.
Camera Specification – Dual Channel (Overview + PTZ)
| Image Sensor | Overview: 1/2.8" CMOS; PTZ: 1/2.8" CMOS |
|---|---|
| Max. Resolution | Overview: 8MP – 5376 (H) × 1520 (V) PTZ: 4MP – 2560 (H) × 1440 (V) |
| ROM / RAM | Overview: 4 GB ROM / 2 GB RAM PTZ: 4 GB ROM / 1 GB RAM |
| Electronic Shutter Speed | Overview: 1 s–1/100,000 s; PTZ: 1 s–1/30,000 s |
| Scanning System | Progressive (both) |
| Min. Illumination | Both: Color 0.005 lux@F1.6, B/W 0.0005 lux@F1.6, 0 lux (illuminator on) Note: PTZ spec table had typo; aligned with overview. |
| Illumination Distance & Type |
Overview: 30 m IR + 30 m white light (2 IR + 2 white LEDs) PTZ: 70 m IR + 30 m white light (2 dual-light fusion + 2 IR LEDs) |
| Illuminator Control | Overview: Manual/Auto/Off; PTZ: Zoom Prio/Manual/Auto/Off |
Lens & Field of View / DORI
| Overview Lens | Fixed 2.8 mm, F1.6; FOV H: 180°, V: 47°; close focus 0.6 m | ||||||||
|---|---|---|---|---|---|---|---|---|---|
| PTZ Lens | Motorized 4 mm–40 mm (10× zoom), F1.6–F3.6; FOV H: 58°–11.3°, V: 33.1°–6.4°, D: 66.4°–12.8°; close focus 0.1–0.5 m | ||||||||
| DORI Distance (PTZ Tele) |
|
TiOC Intelligence & Active Deterrence
| IVS (Perimeter Protection) | Tripwire, intrusion, crossing fence, loitering, abandoned/missing object, fast moving, parking detection, people gathering, human/vehicle classification, linkage tracking (people only). |
|---|---|
| Face Detection (PTZ only) | Supports detection, optimization, snapshot, enhancement; 6 attributes + 8 expressions; face cutout (face/one-inch photo); real-time/quality-first/optimization strategies. |
| Auto Tracking & Smart Tracking | Auto Tracking Lite; WizTracking (Xinghan AI-driven human tracking); Relay tracking (continues after target exits overview); Linkage tracking (tracks only targets visible in overview) – both for X-SPANS series only. |
| Auto Patrol | After IVS alarm, can link up to 5 presets or scans to patrol key areas; IVS can be enabled with SMD simultaneously. |
| SMD / AcuPick | SMD supported; AcuPick (overview channel) – deep learning for fast human/vehicle search across live/recorded video. |
| Active Deterrence – Light & Sound |
Light Warning: Red and blue lights, flash duration 5–30 s, frequency high/medium/low. Sound Warning: 11 built-in + 10 custom voice alarms, volume 0–100%, play times 1–10. |
Video & Audio Specifications – 3 Streams per Channel
| Compression / Smart Codec | Smart H.265+; H.265; Smart H.264+; H.264H; H.264B; H.264M; MJPEG (sub stream 1) |
|---|---|
| Streaming Capability | 3 streams per channel |
| Resolution Options |
Overview: 5376×1520, 2688×752, 1080p, 720p, 1344×368, D1, CIF PTZ: 2560×1440, 3M, 1080p, 1.3M, 720p, D1, CIF |
| Video Frame Rate |
Overview main: 5376×1520 @ 1–25/30 fps Overview sub 1: 1344×368/D1/VGA/CIF @ 1–25/30 fps Overview sub 2: 2688×752/1080p/1.3M/720p @ 1–25/30 fps PTZ main: 4M/3M/1080p/1.3M/720p @ 1–25/30 fps PTZ sub 1: D1/VGA/CIF @ 1–25/30 fps PTZ sub 2: 1080p/1.3M/720p @ 1–25/30 fps |
| Bit Rate Control / Bit Rate | VBR/CBR. Overview: H.264 128–16384 kbps, H.265 51–13312 kbps; PTZ: H.264 96–16384 kbps, H.265 38–10240 kbps |
| WDR & Image Enhancements |
Overview: DWDR; PTZ: 120 dB True WDR BLC, HLC, 2D/3D NR, ROI, Electronic Defog (both), EIS (PTZ only), Digital Zoom 16× (PTZ only), Image Rotation 180° (PTZ only) |
| Privacy Masking | Up to 24 areas (max 8 in same view), multiple colors and mosaic selectable |
| Audio | Overview: PCM, G.711A, G.711Mu, G.726, MPEG2-Layer2, G.722.1, G.729; PTZ: NA (but built-in speaker/mic shared via overview?) – system uses overview audio I/O. |
PTZ Specifications & Control
| Pan/Tilt Range | Pan: 0°–345°; Tilt: -10°–+90° | |||
|---|---|---|---|---|
| Manual Control Speed (PTZ) | H: 0.1–80°/s; V: 0.1–50°/s | |||
| Preset Speed | H: 80°/s; V: 50°/s | Preset / Tour | 300 presets; 8 tours (up to 32 presets per tour) | |
| Power-off Memory / Idle Motion | Yes; Preset; Tour |
Network, Storage & Cybersecurity
| Network Port | RJ-45 (100 Base-T) | ||||||||||||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Network Protocols | FTP; RTMP; IPv6; Bonjour; IPv4; DNS; RTCP; PPPoE; NTP; RTP; 802.1x; QoS; HTTPS; SNMP; TCP/IP; DDNS; UPnP; NFS; ICMP; UDP; IGMP; HTTP; SSL; DHCP; SMTP; RTSP; ARP | ||||||||||||||||||||||||
| Interoperability | ONVIF (Profile S/G/T); CGI; SDK; P2P | ||||||||||||||||||||||||
| Local Storage | Micro SD card (max 512 GB); FTP/SFTP; NAS | ||||||||||||||||||||||||
| User/Host / Bandwidth | 20 users (total bandwidth 64 Mbps) | ||||||||||||||||||||||||
| Cybersecurity | WSSE, account lockout, HTTPS, IP/MAC filtering, security logs, trusted boot/execution/upgrade, 802.1x, syslog, X.509 | ||||||||||||||||||||||||
| Management Software / Browser | DMSS; DSS Pro; IE9+, Chrome 41+, Firefox 50+, Safari 10+; iOS/Android | ||||||||||||||||||||||||
| Audio Input / Output | 1 LINE IN (bare wire, mutually exclusive with built-in mic); 1 LINE OUT (bare wire, mutually exclusive with built-in speaker) |
|---|---|
| Alarm Input / Output | 1 input (0–5 VDC) + 1 output |
| Alarm Linkage | Capture; recording; send email; preset; alarm output; audio; warning light |
| Alarm Event | Motion/tampering; network disconnection; IP conflict; SD card status; storage space |
| Power Supply | 12 VDC, 3 A ±10% OR PoE+ (802.3at) |
|---|---|
| Power Consumption | Basic: 12 W; Max (illuminator + heater + siren/light active deterrence + PTZ): 25 W |
| Operating Temperature / Humidity | –30 °C to +60 °C (–22 °F to +140 °F) | ≤95% RH |
| Protection Ratings | IP66 (weatherproof), TVS 6000V lightning/surge/voltage transient protection |
| Certifications | CE: EN55032/EN55035/IEC61000-3-2/IEC61000-3-3/EN62368-1/IEC62471 |
| Casing Material | Metal + plastic |
|---|---|
| Product Dimensions | 140.3 mm × 181.7 mm × 238.8 mm (5.52" × 7.15" × 9.40") (L×W×H) |
| Net Weight / Gross Weight | 2.17 kg (4.78 lb) / 3.1 kg (6.83 lb) |
| Note | Preset precision may vary by series; consult sales for high-precision requirements. |
Order & Pricing Information for Surveillance Products
Please note the following important details when ordering surveillance products from ICCTVZONE:
- Order confirmation: After you place an order, please check the confirmation email from our team. We will confirm stock, lead time and shipping before dispatch.
- Stock & replacements: Inventory status is not real-time. If an item is out of stock, we may propose a compatible replacement model for your approval.
- Final pricing: Prices shown are indicative. The final price is confirmed on the Proforma Invoice (PI) after order confirmation.
- Project-specific pricing: Some products are configured for project requirements; pricing may vary with quantity and specification.
- Minimum order: A minimum order value may apply to non-stock or project items; our team will confirm before processing.
- Shipping costs: Shipping is calculated separately and added to the order total.
- Duties & taxes: Import duties, taxes and customs clearance fees are not included in the product price or shipping quote. These charges are the customer's responsibility.
- Genuine products: We supply genuine products from leading brands with current firmware.
- Technical support: Our engineers provide pre-sales and after-sales technical support.
- Warranty: Warranty terms depend on the product and order type; we will confirm the applicable coverage in writing.
Questions? Contact sales@icctvzone.com.
Why this model
Product Features
What this model is for, what it does well, and what to confirm before it goes on a project.
Best for
Wide-area sites that need one camera for both panoramic overview and 10x zoom detail with active deterrence.
Before you orderConfirm your recorder and PoE budget support both channels and that the 4–40 mm zoom range suits your mounting distance before ordering.
01
Dual-Channel Coverage
An 8MP overview channel and a 4MP PTZ detail channel let you watch the whole scene and zoom in without adding a second camera.
02
Active Deterrence
Built-in red and blue warning lights plus voice alarms help you intervene in real time when a threat is detected.
03
Smart Night Visibility
Dual-light illumination on both channels keeps overview and zoom detail usable after dark.
