Home » Dahua SDT2A200-2F-NB-A-PV 2+2MP Smart Dual Light WizSense Network PT Camera
icctvzone

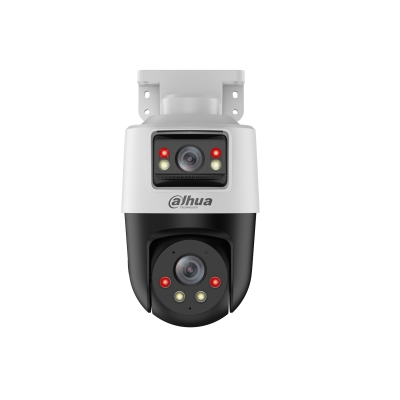

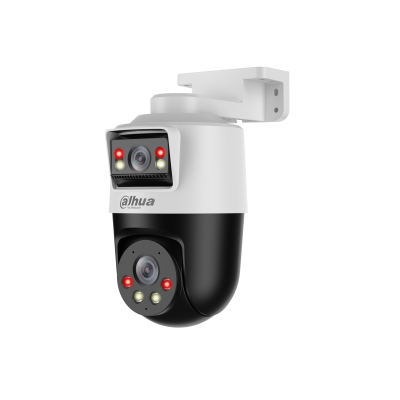

Dahua SDT2A200-2F-NB-A-PV 2+2MP Smart Dual Light WizSense Network PT Camera

In stock
SKU: SDT2A200-2F-NB-A-PV
$110.00
Lead time & order confirmation

Most orders ship within 30 working days. Stock status shown on this page is not real-time.

After you place your order, please check the order confirmation email from our team. We will confirm stock, lead time and shipping before dispatch. If an item is out of stock, we may propose a compatible replacement model for your approval.

Working to a project deadline? Contact us before ordering.

Need help with this product?

Our team can confirm specifications, stock and pricing before you order.

Email sales@icctvzone.com or contact us.
Authentic productsGenuine brands, traceable supply
Worldwide shippingTracked delivery to 200+ countries
Technical supportPre-sales and after-sales help
Daniel Levent
Daniel LeventSenior Engineer SalesOnline now

Need help choosing the right model? I can confirm specifications, stock and lead time before you order.

Email meContact us

SDT2A200-2F-NB-A-PV

2+2MP Smart Dual Light WizSense X-Spans Network PT Camera

> Displays videos in two channels at the same time.
> 1/2.8” 2Megapixel CMOS
> Human Detection and Vehicle Detection
> IR and warm light, three night view modes
> Two-way talk
> H.265 encoding
> Supports manual adjustment of fixed lens (Vertical: -10° to 15°)


Camera

Image Sensor



Fixed lens: 1/2.8" CMOS;

PT lens: 1/2.8" CMOS

Pixel



Fixed lens: 2 MP;

PT Lens: 2 MP

Max. Resolution



Fixed lens: 1920 (H) × 1080 (V);

PT Lens: 1920 (H) × 1080 (V)

ROM



128 MB

RAM



128 MB

Electronic Shutter Speed



Fixed lens: 1 s–1/100,000 s;

PT Lens: 1 s–1/100,000 s

Scanning System



Progressive

Min. Illumination



Fixed lens:

0.05 lux@F1.6 (Color, 30 IRE);

0.005 lux@F1.6 (B/W, 30 IRE);

0 lux (Illuminator on);

PT Lens:

0.05 lux@F1.6 (Color, 30 IRE);

0.005 lux@F1.6 (B/W, 30 IRE);

0 lux (Illuminator on)

Illumination Distance



Fixed lens:

30 m (98.43 ft) (warm light); 30 m (98.43 ft) (IR);

PT Lens:

30 m (98.43 ft) (warm light); 30 m (98.43 ft) (IR)

Illuminator On/Off Control



Fixed lens: Manual; Auto; Off;

PT Lens: Manual; Auto; Off

Illuminator Number



Fixed lens: 2 (IR); 2 (warm light);

PT Lens: 2 (IR); 2 (warm light)

Lens

Focal Length



Fixed lens: 4 mm;

PT Lens: 4 mm

Max. Aperture



Fixed lens: F1.6;

PT Lens: F1.6

Field of View



Fixed lens: H: 85.7°; V: 47.1°; D: 100°;

PT Lens: H: 85.7°; V: 47.1°; D: 100°

Close Focus Distance



Fixed lens: 0.8 m (2.62 ft);

PT Lens: 0.8 m (2.62 ft)

Iris Control



Fixed lens: Fixed iris;

PT Lens: Fixed iris

DORI Distance

Lens

Detect

Observe

Recognize

Identify

Fixed lens: 4 mm;

PT Lens: 4 mm

53.6 m

( 175.82 ft)

21.2 m

( 69.55 ft)

10.7 m

( 35.10 ft)

5.3 m



( 17.39 ft)
DORI (Detect, Observe, Recognize, Identify) is a standard system (EN-62676-4) for defining the ability of a person viewing the video to distinguish persons or objects within a covered area. The numbers in this table do not reflect intelligent function distances. For intelligent function distances, refer to installation and commissioning manual/project design tool.

PTZ

Pan/Tilt Range



Fixed lens: Manual adjustment

Pan：0°–290°; Tilt: –10°–15°

PT Lens: Electric adjustment

Pan：0°–350°; Tilt: 0°–90°

Manual Control Speed



Pan: 0.1°–36°/s; Tilt: 0.1°–25°/s

Preset Speed



Pan: 36°/s; Tilt: 25°/s

Preset



50

Power-off Memory



Yes

Idle Motion



Preset

Smart Event

Human Detection



Fixed lens: Yes;

PT Lens: Yes

Vehicle Detection



Fixed lens: Yes; PT Lens: Yes

Intelligence

SMD



SMD 3.0

Active Deterrence

Light Warning



White light warning;

Flash duration: 5 s–30 s;

Flash frequency: high, medium, low

Sound Warning



Offers 3 sound alarm and 10 custom sound alarms can be imported.

Sound can be set from 0%–100%.

Play times can be set from 1-10.

Video

Video Compression



Smart H.265+;H.265;Smart H.264+;H.264B;H.264M;H.264H

Streaming Capability



2 streams

Resolution



Fixed lens:

1080p (1920 × 1080); 720p (1280 × 720); 640 × 360 (640 × 360); QVGA (320 × 240);

PT Lens:

1080p (1920 × 1080); 720p (1280 × 720); 360p (640 × 360); QVGA (320 × 240);

Video Frame Rate



Fixed lens:

Main stream: 1080p/720p/640x360@(1–25/30 fps)

Sub stream 1: 640x360/QVGA@(1–25/30 fps)

PT Lens:

Main stream: 1080p/720p/640x360@(1–25/30 fps)

Sub stream 1: 640x360/QVGA@(1–25/30 fps)

Bit Rate Control



CBR/VBR

Video Bit Rate



H264: 48 kbps–4,096 kbps

H265: 19 kbps–4,096 kbps

Day/Night



Fixed lens: Auto (ICR)/Color/B/W;

PT Lens: Auto (ICR)/Color/B/W

BLC



Yes

WDR



DWDR

HLC



Yes

White Balance



Auto; indoor; outdoor; tracking; manual; sodium lamp; natural light; street lamp

Gain Control



Auto; manual

Noise Reduction



2D NR; 3D NR

Motion Detection



Yes

Image Rotation



180°

S/N Ratio



≥55 dB

Audio

Audio Compression



PCM; G.711a; G.711Mu; G.726

Network

Network Port



RJ-45 (10/100 Base-T)

Network Protocol



HTTP;HTTPS;TCP/IP;IPv4;RTSP;UDP;SMTP;DHCP;DNS;DDNS;IPv6;SSL;ARP;RTCP;RTP;IP Filter

Interoperability



CGI;SDK;ONVIF (Profile S & Profile T)

Streaming Method



Unicast/Multicast

User/Host



20 (total bandwidth: 64 M)

Storage



Micro SD card (256 GB)

Browser



IE 7 and later versions;

All Chrome versions;

All Firefox versions;

All Safari versions

Certification

Certifications



CE: EN55032/EN55024/EN50130-4

Port

Audio Input



1 channel (built-in mic)

Audio Output



1 channel (built-in speaker)

Alarm Linkage



Capture; recording; audio; warning light; preset

Alarm Event



Motion/tampering detection; audio detection; network disconnection detection; IP conflict detection; memory card state detection; memory space detection

Power

Power Supply



12 VDC/1.5 A ± 10%

PoE (802.3af)

Power Consumption



Basic: 4 W;

Max: 12 W (illuminator + PTZ +sound and light warning)

Power Adapter



Optional

Environment

Operating Temperature



–20 °C to +50 °C (–4 °F to +122 °F)

Operating Humidity



≤95%

Protection



IP66;TVS 2000 V lightning proof; surge protection; voltage transient protection

Structure

Product Dimensions



110.0 mm × 159.4 mm × 210.1 mm (4.33" × 6.28" × 8.27") (L × W × H）

Net Weight



1 kg (2.20 lb)

Gross Weight



1.5 kg (3.31 lb)

Filter

Remarks



The precision of the presets for PTZ cameras might vary depending on different series. For scenes with high requirements on the precision, contact your local sales representative for assistance with selecting the model.

Order & Pricing Information for Surveillance Products

Please note the following important details when ordering surveillance products from ICCTVZONE:

  • Order confirmation: After you place an order, please check the confirmation email from our team. We will confirm stock, lead time and shipping before dispatch.
  • Stock & replacements: Inventory status is not real-time. If an item is out of stock, we may propose a compatible replacement model for your approval.
  • Final pricing: Prices shown are indicative. The final price is confirmed on the Proforma Invoice (PI) after order confirmation.
  • Project-specific pricing: Some products are configured for project requirements; pricing may vary with quantity and specification.
  • Minimum order: A minimum order value may apply to non-stock or project items; our team will confirm before processing.
  • Shipping costs: Shipping is calculated separately and added to the order total.
  • Duties & taxes: Import duties, taxes and customs clearance fees are not included in the product price or shipping quote. These charges are the customer's responsibility.
  • Genuine products: We supply genuine products from leading brands with current firmware.
  • Technical support: Our engineers provide pre-sales and after-sales technical support.
  • Warranty: Warranty terms depend on the product and order type; we will confirm the applicable coverage in writing.

Questions? Contact sales@icctvzone.com.
Why this model

Product Features

What this model is for, what it does well, and what to confirm before it goes on a project.

Best for

Dual-view monitoring of entrances, yards and small business perimeters where one camera must show both a fixed scene and a pan-tilt view at once.

Before you orderConfirm your recorder supports dual-channel input from this camera and that your PoE or power budget covers it, then verify current lead time before ordering.
01
Two Views at Once

A fixed lens and a PT lens stream two channels simultaneously, so you can watch a wide scene and a tracked subject without adding a second camera.

02
Smart Human and Vehicle Alerts

WizSense human and vehicle detection helps filter out irrelevant motion so operators can focus on the events that actually matter.

03
Flexible Night Coverage

IR and warm light illuminators with three night view modes support clear monitoring after dark across both lenses.

Genuine supplyProject supportWorldwide shipping
