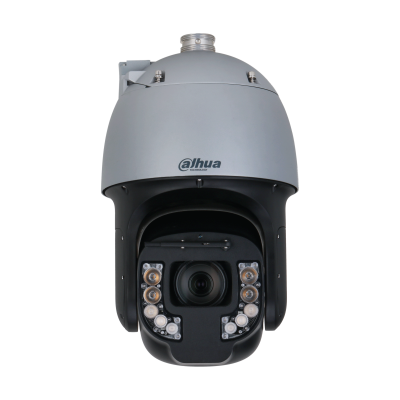

Dahua SD8C848PA-HNF 8MP 48x Starlight IR WizMind Network PTZ Camera

In stock

SKU: SD8C848PA-HNF

$3,199.00

Lead time & order confirmation

Most orders ship within 30 working days. Stock status shown on this page is not real-time.

After you place your order, please check the order confirmation email from our team. We will confirm stock, lead time and shipping before dispatch. If an item is out of stock, we may propose a compatible replacement model for your approval.

Working to a project deadline? Contact us before ordering.

Need help with this product?

Our team can confirm specifications, stock and pricing before you order.

Email sales@icctvzone.com or contact us.

Product variants

Authentic productsGenuine brands, traceable supply

Worldwide shippingTracked delivery to 200+ countries

Technical supportPre-sales and after-sales help

Daniel LeventSenior Engineer SalesOnline now

Need help choosing the right model? I can confirm specifications, stock and lead time before you order.

Email me Contact us

SD8C848PA-HNF

8M 48x Starlight IR WizMind Network PTZ Camera

> 1/1.8" 8Megapixel STARVIS™ CMOS
> 48x optical zoom
> Starlight technology
> Max. 25/30 fps@8M
> IR distance up to 250 m
> H.265 encoding
> Two-way audio
> IR and white light, three night view modes
> IP67
> Auto-tracking
> Perimeter protecton
> Face recogniton

Product Data
****************

Camera

Image Sensor

1/1.8" CMOS

Pixel

8 MP

Max. Resolution

3840 (H) × 2160 (V)

ROM

8 GB

RAM

2 GB

Electronic Shutter Speed

1/1 s–1/30,000 s

Scanning System

Progressive

Min. Illumination

Color: 0.005 lux@F1.4
B/W: 0.0005 lux@F1.4
0 lux (dual light fusion on)

Illumination Distance

80 m (262.46 ft) (dual light fusion-only white light on)
250 m (1,476.38 ft) (dual light fusion-only IR light on)

Illuminator On/Off Control

Zoom Prio; Manual; Smart IR; Off

Illuminator Number

10 (dual light fusion)

Wiper

Yes

Lens

Focal Length

6.25 mm–300 mm

Max. Aperture

F1.4–F4.5

Field of View

H: 64.87°–1.77°; V: 38.07°–1.01°; D: 72.18°–2.04°

Optical Zoom

48×

Focus Control

Auto; semi-auto; manual

Close Focus Distance

0.5 m–2 m (1.64–6.56 ft)

DORI Distance

Detect

Observe

Recognize

Identify

6,000 m (19,685.04 ft)

2,381 m (7,811.68 ft)

1,200 m (3,937.01 ft)

600 m (1,968.50 ft)

PTZ

Pan/Tilt Range

Pan: 0° to 360° endless
Tilt: –20° to +90°

Manual Control Speed

Pan: 0.1°/s–240°/s
Tilt: 0.1°/s–100°/s

Preset Speed

Pan: 0.1°/s–200°/s; Tilt: 0.1°/s–60°/s

Preset

300

Tour

8 (up to 32 presets per tour)

Pattern

5

Scan

5

Power-off Memory

Yes

Idle Motion

Preset; Pattern; Tour; Scan

PTZ Protocol

DH-SD
Pelco-P/D (auto recognition)

Intelligence

Video Metadata

Support human body, human face, motor vehicle and non-motor vehicle image capture and attributes extraction.

IVS (Perimeter Protection)

Tripwire and intrusion. Support alarm triggering by target types (human and vehicle). Support filtering false alarms caused by animals, rustling leaves, bright lights, etc.

Face Recognition

Yes

Video

Video Compression

H.265; H.264M; H.264H; MJPEG; Smart H.265; Smart H.264

Streaming Capability

3 streams

Resolution

8M (3840 × 2160); 4M (2560 × 1440); 1080p (1920 × 1080); 960p (1280 × 960); 720p (1280 × 720); D1 (704 × 576/704 × 480); VGA (640 × 480); CIF (352 × 288/352 × 240)

Video Frame Rate

Main stream: 8M/4M/1080p/960p/720p (1–25/30 fps)
Sub stream 1: D1/VGA/CIF (1-25/30 fps)
Sub stream 2: 1080p/960p/720p (1-25/30 fps)

Bit Rate Control

CBR; VBR

Video Bit Rate

H.264: 3328 kbps–16384 kbps
H.265:1280 kbps–9984 kbps

Day/Night

Auto (ICR); Color; B/W

BLC

Yes

WDR

120 dB

HLC

Yes

White Balance

Auto; indoor; outdoor; tracking; manual; sodium lamp; natural light; street lamp

Gain Control

Auto; manual

Noise Reduction

2D NR; 3D NR

Motion Detection

Yes

Region of Interest (RoI)

Yes

Defog

Optical

Digital Zoom

16×

Image Rotation

180°

Privacy Masking

Up to 24 areas can be set, with up to 8 areas in the same view

S/N Ratio

≥55 dB

Audio

Audio Compression

G.711a; G.711Mu; G.726; MPEG2-Layer2; G722.1; G729; PCM

Network

Network Port

RJ-45 (10/100 Base-T)

Network Protocol

HTTP; HTTPS; IPv4; RTSP; UDP; SMTP; NTP; DHCP; DNS; DDNS; IPv6; 802.1x; QoS; FTP; UPnP; ICMP; SNMP; IGMP; RTP; PPPoE; RTMP; TCP

Interoperability

ONVIF (Profle S&G&T); GB/T28181; CGI

Streaming Method

Unicast; Multicast

User/Host

20 (total bandwidth: 64 M)

Storage

FTP; Micro SD card (512 GB); NAS

Browser

IE 7 and later versions
Chrome 45 and later versions
Firefox 52ESR and earlier versions
Safari

Management Software

Smart PSS; DSS; IVSS

Mobile Client

iOS; Android

Port

Analog Output

1 channel (CVBS output, BNC)

RS-485

1 (baud rate: 1200 bps–115200 bps)

Audio Input

1 channel (LINE IN, bare wire)

Audio Output

1 channel (LINE OUT, bare wire)

Two-way Audio

Yes

Alarm Input

7 (on-off value input: 0–5 VDC)

Alarm Output

2

Alarm Linkage

Capture; preset; tour; pattern; recordings on SD card; alarm digital input; client E-map; send email

Alarm Event

Motion/tampering detection; audio detection; network disconnection detection; IP conflict detection; decoder state detection; memory card state detection; memory space detection; power exception detection

Power

Power Supply

36 VDC, 2.23 A (± 25%)

Power Consumption

Basic: 18 W
Max.: 33 W (illuminator + PTZ)

Environment

Operating Temperature

–40 °C to +70 °C (–40 °F to +158 °F)

Operating Humidity

≤95%

Protection

IP67; TVS 8000 V lightning proof; surge protection; voltage transient protection

Structure

Product Dimensions

442 mm × Φ262 mm (17.40" × Φ10.31")

Net Weight

10.3 kg (22.71 lb)

Gross Weight

12.5 kg (27.56 lb)

***********

Why this model

Product Features

What this model is for, what it does well, and what to confirm before it goes on a project.

Best for

Long-range outdoor perimeter and wide-area surveillance where a single PTZ must detect, track and identify activity across large sites.

Before you orderConfirm your recorder and VMS support this PTZ's ONVIF profile and H.265 stream, and verify the power source and mounting location before ordering.

01

48x Optical Zoom

Reach distant subjects with a 6.25-300 mm lens, so one camera can cover far-off gates, fences and open ground.

02

Starlight Low-Light Imaging

The 1/1.8" STARVIS sensor and Starlight technology keep color detail usable in dim conditions down to 0.005 lux.

03

Dual-Light Night View

Switch between IR, white light and fusion modes for up to 250 m IR reach and flexible night monitoring.
