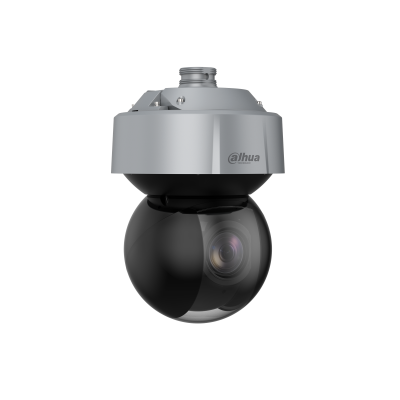

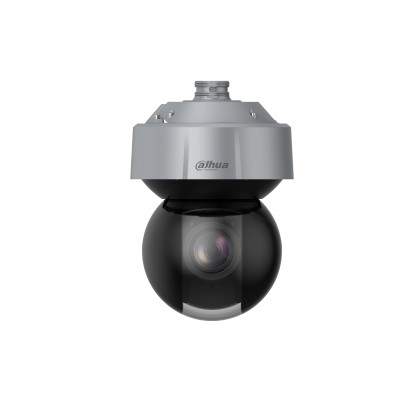

Dahua SD7A440FA-HNF-ATC 4MP 40x IR High-Speed Network PTZ Camera
Regular price
$10,000.00
This is a placeholder price. Please contact us for a quote.
Lead time & order confirmation
Most orders ship within 30 working days. Stock status shown on this page is not real-time.
After you place your order, please check the order confirmation email from our team. We will confirm stock, lead time and shipping before dispatch. If an item is out of stock, we may propose a compatible replacement model for your approval.
Working to a project deadline? Contact us before ordering.
Need help with this product?
Our team can confirm specifications, stock and pricing before you order.
Email sales@icctvzone.com or contact us.
Couldn't load pickup availability
Authentic productsGenuine brands, traceable supply
Worldwide shippingTracked delivery to 200+ countries
Technical supportPre-sales and after-sales help
Daniel LeventSenior Engineer SalesOnline now
Need help choosing the right model? I can confirm specifications, stock and lead time before you order.
Dahua SD7A440FA-HNF-ATC 4MP 40x IR High-Speed PTZ Camera – 700°/s Pan, 120fps, 150dB WDR, NEMA 4X
Key Performance Highlights – Ultra-High-Speed PTZ + 120fps + 150dB WDR
- Extreme High-Speed PTZ: Pan speed up to 700°/s, tilt up to 300°/s; preset speed 550°/s (pan). Smart pan-tilt correction with 0.05° positioning accuracy.
- High Frame Rate Flexibility: 4MP @ 50/60 fps or 2MP @ 100/120 fps – ultra-smooth video for fast-moving targets.
- 40× Optical Zoom & 300m IR: 5.5–220 mm motorized zoom lens with 300 m IR illumination – exceptional long-range night surveillance.
- 150dB True WDR & Gyro EIS: Industry-leading wide dynamic range plus built‑in gyroscope electronic image stabilization for stable video under vibration.
- Privacy Protection with Mosaic: Auto-masks detected faces or human bodies in real time – ideal for public or regulated environments.
- Advanced Xinghan AI: Video metadata (10 vehicle/8 non-motor/6 face/8 body), face recognition (10,000 faces, 5 databases), IVS perimeter protection, AcuPick, WizTracking.
- Rugged & Anti-Corrosion: IP67/IK10, NEMA 4X (optional), moderate anti-corrosion coating (coastal areas >2km, acid rain). Operates –40°C to +70°C, TVS 6000V surge protection.
- Extreme DORI Distance: Tele end detect range up to 3,034 m (9,955 ft) – unmatched long-range identification.
Camera Specification – 4MP High-Speed PTZ
| Image Sensor | 1/1.8" CMOS |
|---|---|
| Max. Resolution | 4MP – 2688 (H) × 1520 (V) |
| ROM / RAM | 8 GB / 4 GB |
| Electronic Shutter Speed | 1/1 s – 1/30,000 s |
| Scanning System | Progressive |
| Min. Illumination | Color: 0.001 lux@F1.6; B/W: 0.0001 lux@F1.6; 0 lux (IR on) |
| Illumination Distance & Type | IR 300 m (984.25 ft) – 6 IR LEDs |
| Illuminator Control | Zoom Prio; Manual; Auto; Off |
Lens & DORI Optics (40× Optical Zoom)
| Focal Length / Aperture | 5.5 mm – 220 mm (40× zoom) | F1.6–F4.9 | |||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Field of View | H: 60.82°–2.26°; V: 36.24°–1.26°; D: 68.7°–2.59° | |||||||||||||||
| Focus Control / Iris Control | Auto; Semi-auto; Manual | Auto/Manual/Iris Priority | |||||||||||||||
| Close Focus Distance | 0.5 m – 5 m (1.64 ft – 16.40 ft) | |||||||||||||||
| DORI Distance (EN-62676-4) |
|
Elite Intelligence – Xinghan AI with Privacy Protection
| Video Metadata | Motor vehicle (10 attributes), non-motor vehicle (8 attributes), face (6 attributes), human body (8 attributes). Supports snapshot optimization and high-quality face upload. |
|---|---|
| IVS Perimeter Protection | Tripwire, intrusion, crossing fence, loitering, abandoned/missing object, fast moving, parking detection, people gathering, human/vehicle classification, linkage tracking, privacy protection. |
| Face Recognition | 5 face databases (up to 10,000 faces), 6 attributes + 8 expressions, face cutout as one‑inch photo, batch import, similarity threshold, privacy protection. |
| Smart Tracking / AcuPick | WizTracking; AcuPick for fast human/vehicle search through live/recorded video. |
| Privacy Protection | Real-time mosaic masking – automatically covers detected faces or body parts in public scenes. |
Video & Audio Specifications – 120fps, 150dB WDR
| Compression / Smart Codec | Smart H.265+; H.265; Smart H.264+; H.264; H.264B; H.264H; MJPEG (sub stream 1 only) |
|---|---|
| Streaming Capability | 3 streams |
| Resolution Options | 4M (2688×1520), 4M (2560×1440), 3M, 1080p, 1.3M, 720p, D1, VGA, CIF |
| Video Frame Rate |
Main stream: 4M/3M @ 1–50/60 fps; 1080p/1.3M/720p @ 1–100/120 fps Sub stream 1: D1/VGA/CIF @ 1–25/30 fps Sub stream 2: 1080p/1.3M/720p/CIF @ 1–25/30 fps *High frame rate supported under monitoring mode only. |
| Bit Rate Control / Bit Rate | VBR/CBR. H.264: 96–14848 kbps; H.265: 38–8960 kbps |
| WDR / Image Enhancements | 150 dB True WDR, BLC, HLC, 2D/3D NR, ROI, Gyroscope EIS, Digital Zoom (16×), Image Rotation 180° |
| Privacy Masking | Up to 24 areas (max 8 in same view), selectable color block or mosaic |
| Audio Compression | PCM; G.711a; G.711Mu; G.726; MPEG2-Layer2; G722.1; G729; G723 |
PTZ & Mechanical Specifications – 700°/s High Speed
| Pan/Tilt Range | Pan: 0°–360° endless, smart pan-tilt correction; Tilt: –20°–+90°, auto flip 180°, smart pan-tilt correction (0.05° accuracy) |
|---|---|
| Manual Control Speed | Pan: 0.1–700°/s; Tilt: 0.1–300°/s |
| Preset Speed | Pan: 550°/s; Tilt: 300°/s |
| Preset / Tour / Pattern / Scan | 300 presets, 8 tours (32 presets each), 5 patterns, 5 scans |
| Idle Motion / Power-off Memory | Preset/Pattern/Tour/Scan; Yes |
| PTZ Protocol | DH-SD; Pelco-P/D (auto recognition) |
Network, Storage & Cybersecurity
| Network Port | RJ-45 (10/100/1000 Base-T – Gigabit) |
|---|---|
| Network Protocols | HTTP; HTTPS; TCP/IP; IPv4; IPv6; RTSP; UDP; SMTP; NTP; DHCP; DNS; DDNS; 802.1x; SSL; QoS; FTP; UPnP; SNMP; PPPoE; RTMP; Bonjour; NFS |
| Interoperability | ONVIF (Profile S/G/T/M); CGI; SDK |
| Local Storage | Micro SD card (max 1 TB); FTP; NAS |
| User/Host / Bandwidth | 20 users (total bandwidth 64 Mbps) |
| Cybersecurity | WSSE, account lockout, HTTPS, IP/MAC filtering, security logs, trusted upgrade/boot |
| Management Software / Browser | DMSS; NVR; DSS Pro; IE9+, Chrome 41+, Firefox 50+, Safari 10+ |
I/O Interfaces & Alarm (7 Inputs / 2 Outputs)
| Analog Output | 1 channel CVBS (BNC) | |||
|---|---|---|---|---|
| RS-485 | 1 (baud rate 1200–9600 bps) | |||
| Audio I/O | 1 channel LINE IN + 1 channel LINE OUT (bare wire) | |||
| Alarm Input / Output | 7 inputs (digital, 0–5 VDC) + 2 outputs | |||
| Alarm Linkage | Snapshot, preset, tour, pattern, recording, alarm output, email, audio | Alarm Event | Motion detection, video tampering, audio detection, network/IP conflict, SD card status, storage space |
Power, Environment & Protection
| Power Supply | 36 VDC; 2.23 A (±25%) OR PoE (802.3bt) |
|---|---|
| Power Consumption | Basic: 22 W; Max (illuminator + PTZ + heater on): 33 W |
| Power Output | Yes |
| Operating Temperature / Humidity | –40 °C to +70 °C (–40 °F to +158 °F) | ≤95% RH |
| Protection Ratings | IP67, IK10, NEMA 4X (optional), TVS 6000V lightning/surge/voltage transient protection |
| Anti-corrosion Level | Moderate Protection – high-grade anti-corrosion coating; suitable for coastal areas >2 km and acid rain environments |
| Certifications | CE: EN55035, EN IEC61000-3-2, EN55032, EN60950, EN62368-1 |
Physical Structure
| Casing Material | Metal + plastic |
|---|---|
| Product Dimensions | 221.66 mm × 218.42 mm × 320.8 mm (8.73" × 8.60" × 12.63") (L×W×H) |
| Net Weight / Gross Weight | 4.96 kg (10.93 lb) / 8.21 kg (18.10 lb) |
| Power Adapter | Included |
Order & Pricing Information for Surveillance Products
Please note the following important details when ordering surveillance products from ICCTVZONE:
- Order confirmation: After you place an order, please check the confirmation email from our team. We will confirm stock, lead time and shipping before dispatch.
- Stock & replacements: Inventory status is not real-time. If an item is out of stock, we may propose a compatible replacement model for your approval.
- Final pricing: Prices shown are indicative. The final price is confirmed on the Proforma Invoice (PI) after order confirmation.
- Project-specific pricing: Some products are configured for project requirements; pricing may vary with quantity and specification.
- Minimum order: A minimum order value may apply to non-stock or project items; our team will confirm before processing.
- Shipping costs: Shipping is calculated separately and added to the order total.
- Duties & taxes: Import duties, taxes and customs clearance fees are not included in the product price or shipping quote. These charges are the customer's responsibility.
- Genuine products: We supply genuine products from leading brands with current firmware.
- Technical support: Our engineers provide pre-sales and after-sales technical support.
- Warranty: Warranty terms depend on the product and order type; we will confirm the applicable coverage in writing.
Questions? Contact sales@icctvzone.com.
Why this model
Product Features
What this model is for, what it does well, and what to confirm before it goes on a project.
Best for
Long-range perimeter and coastal surveillance where fast pan-tilt response, 40x zoom and 300 m IR are needed in one PTZ.
Before you orderConfirm your NVR or VMS supports this PTZ model and its ONVIF profile, and check current lead time plus whether the optional NEMA 4X rating is required for your site.
01
Fast Target Capture
Pan speeds up to 700°/s and preset speeds of 550°/s help you lock onto fast-moving targets without losing the scene.
02
Long-Range Night Vision
The 5.5–220 mm motorized zoom lens pairs with 300 m IR illumination to keep distant areas visible after dark.
03
Stable, Rugged Video
Gyro EIS, 150dB WDR and IP67/IK10 protection support clearer footage and dependable operation in harsh conditions.
