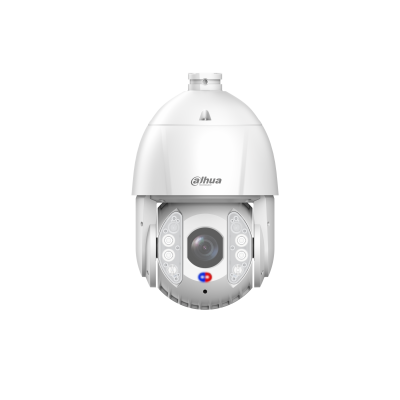

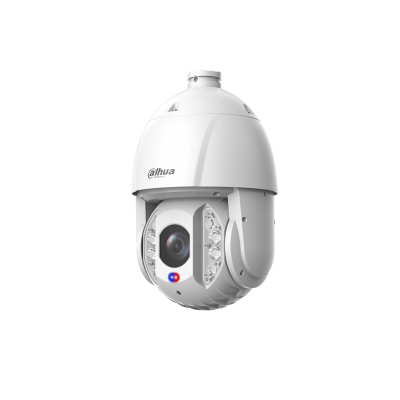

Dahua SD6E825MA-HNR-A-PV1 8MP 25x Smart Dual Light Active Deterrence PTZ Camera
Regular price
$10,000.00
This is a placeholder price. Please contact us for a quote.
Lead time & order confirmation
Most orders ship within 30 working days. Stock status shown on this page is not real-time.
After you place your order, please check the order confirmation email from our team. We will confirm stock, lead time and shipping before dispatch. If an item is out of stock, we may propose a compatible replacement model for your approval.
Working to a project deadline? Contact us before ordering.
Need help with this product?
Our team can confirm specifications, stock and pricing before you order.
Email sales@icctvzone.com or contact us.
Couldn't load pickup availability
Authentic productsGenuine brands, traceable supply
Worldwide shippingTracked delivery to 200+ countries
Technical supportPre-sales and after-sales help
Daniel LeventSenior Engineer SalesOnline now
Need help choosing the right model? I can confirm specifications, stock and lead time before you order.
Dahua SD6E825MA-HNR-A-PV1 8MP 25x Smart Dual Light Active Deterrence PTZ Camera – Xinghan AI, Construction Monitoring
Key Performance Highlights – 8MP + Active Deterrence + Construction Safety AI
- 8MP Ultra-HD & 25× Optical Zoom: 5.4–135 mm motorized zoom lens with 1/1.8" CMOS – exceptional clarity from wide to tele.
- Smart Dual Light for Night: 250 m IR + 100 m warm light – expansive night visibility with intelligent illumination control.
- Active Deterrence – Red/Blue Lights & Siren: Built-in warning lights (adjustable flash) + 11 voice alarms (plus 10 custom imports) for real-time threat intervention.
- Xinghan Large-Scale AI Models: Comprehensive enhancement of target detection and imaging. Includes Construction Monitoring – detects helmet colors (6 colors), work uniform compliance (up to 5 libraries/1000 images), mask/shoe covers, lone worker, and post abandonment.
- Advanced AI & AcuPick: Video metadata (10 vehicle/8 non-motor/6 face/8 body attributes), face detection (6 attributes/8 expressions), SMD 4.0, IVS perimeter protection, WizTracking, Auto Patrol.
- Built-in Dual Mic & Speaker: Secure real-time two-way talk; speaker mutually exclusive with audio line out.
- High-Speed PTZ & Rugged Design: Pan 0–260°/s, tilt 0–140°/s manual; preset speed 300°/s (pan) / 200°/s (tilt). IP67/IK10, TVS 6000V surge protection, –40°C to +70°C operation.
- DORI Distance: Tele end detect range up to 2,700 m (8,858 ft) – long-range identification capability.
Camera Specification
| Image Sensor | 1/1.8" CMOS |
|---|---|
| Max. Resolution | 8MP – 3840 (H) × 2160 (V) – 4K Ultra-HD |
| ROM / RAM | 4 GB / 2 GB |
| Electronic Shutter Speed | 1 s – 1/30,000 s |
| Scanning System | Progressive |
| Min. Illumination | 0.005 lux@F1.6 (Color, 30 IRE); 0.0005 lux@F1.6 (B/W, 30 IRE); 0 lux (illuminator on) |
| S/N Ratio | ≥55 dB |
| Illumination Distance & Type |
Smart Dual Light: IR 250 m (820.21 ft) + Warm light 100 m (328.08 ft) Illuminator count: 6 (Dual light fusion) |
| Illuminator Control | Zoom Prio; Manual; Auto; Off |
Lens & DORI Optics (25× Optical Zoom)
| Focal Length / Aperture | 5.4 mm – 135 mm (25× zoom) | F1.6–F4.0 | |||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Field of View | H: 61.6°–3.6°; V: 35.7°–2.0°; D: 66.6°–4.0° | |||||||||||||||
| Focus Control / Iris Control | Auto; Semi-auto; Manual | Auto/Manual/Iris Prio | |||||||||||||||
| Close Focus Distance | 0.5 m – 7 m (1.64 ft – 22.97 ft) | |||||||||||||||
| DORI Distance (EN-62676-4) |
|
Elite Intelligence – Xinghan Large-Scale AI Models
| Video Metadata | Motor vehicle (10 attributes), non-motor vehicle (8 attributes), face (6 attributes), human body (8 attributes). Supports snapshot optimization and high-quality face upload. | |||
|---|---|---|---|---|
| IVS Perimeter Protection | Tripwire, intrusion, crossing fence, loitering, abandoned/missing object, fast moving, parking detection, people gathering, human alarm classification, linkage tracking. | |||
| Face Detection | 6 attributes + 8 expressions, face cutout as one-inch photo, real-time/quality priority/optimization snapshot strategies. | Construction Monitoring (PPE) |
Helmet detection: 6 colors (red, orange, yellow, blue, white, black) – alarm on no helmet or wrong color. Work uniform compliance: Up to 5 sample libraries (1000 images total, 1080p JPG). Alarm when similarity below threshold. Additional attributes: Uniform color, mask wearing, shoe covers. Lone worker & post abandonment: Alarm when only one person in zone or no person detected (e.g., worker left post). |
|
| Smart Tracking / SMD / AcuPick | WizTracking; SMD 4.0; AcuPick for fast human/vehicle search through live/recorded video. | |||
| Auto Patrol | After IVS event, PTZ automatically patrols predefined key points to detect unknown threats in real time. | |||
| Active Deterrence – Light & Sound |
Light Warning: Red and blue lights, flash duration 5–30 s, frequency high/medium/low. Sound Warning: 11 built-in voice alarms + 10 custom imports, volume 0–100 adjustable, playback frequency 1–10 times (requires external speaker). |
Video & Audio Specifications
| Compression / Smart Codec | Smart H.265+; H.265; Smart H.264+; H.264; H.264B; H.264H; MJPEG (sub stream 1 only) |
|---|---|
| Streaming Capability | 3 streams |
| Resolution Options | 8M (3840×2160), 4M, 3M, 1080p, 960p, 720p, D1, VGA, CIF |
| Video Frame Rate | Main stream: 8M/4M/1080p/1.3M/720p @ 1–25/30 fps Sub stream 1: D1/VGA/CIF @ 1–25/30 fps Sub stream 2: 1080p/1.3M/720p @ 1–25/30 fps |
| Bit Rate Control / Bit Rate | VBR/CBR. H.264: 128–16384 kbps; H.265: 51–10240 kbps |
| WDR / Image Enhancements | 120 dB True WDR, BLC, HLC, 2D/3D NR, ROI, Electronic Defog, EIS, Digital Zoom (16×), Image Rotation 180° |
| Privacy Masking | Up to 24 areas (max 8 in same view), multiple colors and mosaic available |
| Audio | Built-in dual mic + speaker | Audio compression: PCM, G.711a, G.711Mu, G.726, MPEG2-Layer2, G722.1, G729, G723 Speaker mutually exclusive with audio line out |
PTZ & Mechanical Specifications
| Pan/Tilt Range | Pan: 0°–360° endless; Tilt: –20°–+90°, auto flip 180° |
|---|---|
| Manual Control Speed | Pan: 0–260°/s; Tilt: 0–140°/s |
| Preset Speed | Pan: 300°/s; Tilt: 200°/s |
| Preset / Tour / Pattern / Scan | 300 presets, 8 tours, 5 patterns, 5 scans |
| Idle Motion / Power-off Memory | Preset/Pattern/Tour/Scan; Yes |
| PTZ Protocol | DH-SD; Pelco-P/D (auto recognition) |
Network, Storage & Cybersecurity
| Network Port | RJ-45 (10/100 Base-T) |
|---|---|
| Network Protocols | HTTP; HTTPS; TCP/IP; IPv4; IPv6; RTSP; UDP; SMTP; NTP; DHCP; DNS; DDNS; 802.1x; SSL; QoS; FTP; UPnP; SNMP; PPPoE; RTMP; Bonjour; SMB; NFS |
| Interoperability | ONVIF (Profile S/G/T); CGI; SDK |
| Local Storage | Micro SD card (max 512 GB); FTP/SFTP; NAS |
| User/Host / Bandwidth | 20 users (total bandwidth 64 Mbps) |
| Cybersecurity | WSSE, account lockout, HTTPS, IP/MAC filtering, security logs, trusted upgrade/boot |
| Management Software / Browser | DMSS; DSS Pro; IE9+, Chrome 41+, Firefox 50+, Safari 10+ |
I/O Interfaces & Alarm
| Analog Output | Not specified |
|---|---|
| RS-485 | 1 (baud rate 1200–9600 bps) |
| Audio I/O | 1 audio input (LINE IN, bare wire) + 1 audio output (LINE OUT, bare wire; mutually exclusive with built-in speaker) |
| Alarm I/O | 2 inputs (0–5 VDC) + 1 output (dry contact) |
| Alarm Linkage / Events | Capture, recording, email, preset, tour, pattern, alarm output, audio; events include motion/tampering, audio detection, network/IP conflict, SD card status, etc. |
Power, Environment & Protection
| Power Supply | 24 VDC; 2.5 A ±25% OR PoE+ (802.3at) | |||
|---|---|---|---|---|
| Power Consumption | Basic: 14 W; Max (WDR + IR on + PTZ + alarm): 21 W (24 VDC) | |||
| Operating Temperature / Humidity | –40 °C to +70 °C (–40 °F to +158 °F) | ≤95% RH | |||
| Protection Ratings | IP67 (weatherproof), IK10 (vandal resistant), TVS 6000V lightning/surge/voltage transient protection | |||
| Anti-corrosion Level | Not specified (standard protection) | Certifications | CE: EN55035, EN IEC61000-3-2, EN55032, EN60950, EN62368-1 |
Physical Structure
| Casing Material | Metal + plastic |
|---|---|
| Product Dimensions | 208 mm × 202 mm × 325 mm (8.19" × 7.95" × 12.8") (L×W×H) |
| Net Weight / Gross Weight | 4.45 kg (9.81 lb) / 6.62 kg (14.59 lb) |
| Power Adapter | Included |
Order & Pricing Information for Surveillance Products
Please note the following important details when ordering surveillance products from ICCTVZONE:
- Order confirmation: After you place an order, please check the confirmation email from our team. We will confirm stock, lead time and shipping before dispatch.
- Stock & replacements: Inventory status is not real-time. If an item is out of stock, we may propose a compatible replacement model for your approval.
- Final pricing: Prices shown are indicative. The final price is confirmed on the Proforma Invoice (PI) after order confirmation.
- Project-specific pricing: Some products are configured for project requirements; pricing may vary with quantity and specification.
- Minimum order: A minimum order value may apply to non-stock or project items; our team will confirm before processing.
- Shipping costs: Shipping is calculated separately and added to the order total.
- Duties & taxes: Import duties, taxes and customs clearance fees are not included in the product price or shipping quote. These charges are the customer's responsibility.
- Genuine products: We supply genuine products from leading brands with current firmware.
- Technical support: Our engineers provide pre-sales and after-sales technical support.
- Warranty: Warranty terms depend on the product and order type; we will confirm the applicable coverage in writing.
Questions? Contact sales@icctvzone.com.
Why this model
Product Features
What this model is for, what it does well, and what to confirm before it goes on a project.
Best for
Construction sites and large perimeters that need long-range 8MP PTZ coverage with active deterrence and AI-based safety monitoring.
Before you orderConfirm your recorder and VMS support this PTZ model and its AI features, and check current lead time and quantity before ordering.
01
Long-Range 8MP Zoom
A 5.4–135 mm motorized 25x lens pairs with 8MP detail so operators can sweep wide areas and still close in on distant targets.
02
Dual-Light Night Vision
250 m IR plus 100 m warm light with intelligent illumination control keeps the scene visible and usable through the night.
03
Active Deterrence Onboard
Red and blue warning lights with adjustable flash plus built-in siren and voice alarms let the camera intervene in real time.
