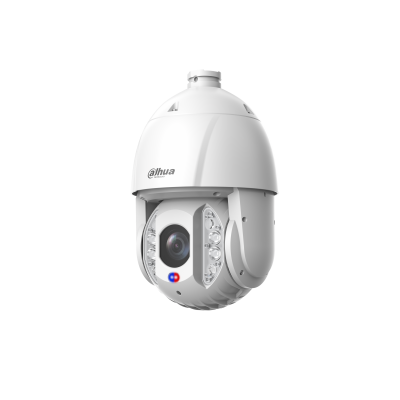

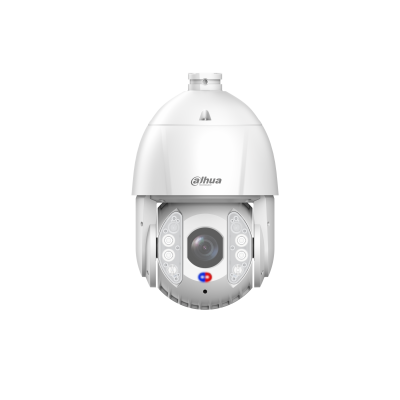

Dahua SD6E245MB-HNR-A-PV1 2MP 45x Smart Dual Light Active Deterrence PTZ Camera – 60fps, 2452m DORI, Xinghan AI, 7 Alarm Inputs
Key Performance Highlights – 45x Zoom + 60fps + Active Deterrence + Construction Safety AI
- 45× Extreme Optical Zoom: 3.95–177.25 mm motorized zoom lens – capture ultra‑telephoto details over vast areas.
- 2MP @60fps High Frame Rate: Ultra‑smooth video for fast‑moving scenes, ideal for detailed observation of rapid action.
- Smart Dual Light for Night: 250 m IR + 100 m warm light – expansive night visibility with intelligent illumination control.
- Active Deterrence – Red/Blue Lights & Siren: Built-in warning lights (adjustable flash) + 11 voice alarms (plus 10 custom imports) for real-time threat intervention (requires external speaker for sound).
- Xinghan Large-Scale AI Models: Comprehensive enhancement of target detection and imaging. Includes Construction Monitoring – detects helmet colors (6 colors), work uniform compliance (up to 5 libraries/1000 images), mask/shoe covers, lone worker, and post abandonment.
- Advanced AI & AcuPick: Video metadata (10 vehicle/8 non-motor/6 face/8 body attributes), face detection (6 attributes/8 expressions), SMD 4.0, IVS perimeter protection, WizTracking, Auto Patrol.
- Rich I/O & Two-Way Audio: 7 alarm inputs + 2 alarm outputs, RS-485, audio in/out, built-in dual mic + speaker (mutually exclusive with line in/out).
- High-Speed PTZ & Rugged Design: Pan 0–260°/s, tilt 0–140°/s manual; preset speed 300°/s (pan) / 200°/s (tilt). IP67/IK10, TVS 6000V surge protection, –40°C to +70°C operation.
- DORI Distance: Tele end detect range up to 2,452 m (8,044 ft) – long-range identification capability.
Camera Specification
| Image Sensor | 1/2.8" CMOS |
|---|---|
| Max. Resolution | 2MP – 1920 (H) × 1080 (V) – 1080p Full HD |
| ROM / RAM | 4 GB / 2 GB |
| Electronic Shutter Speed | 1 s – 1/30,000 s |
| Scanning System | Progressive |
| Min. Illumination | 0.005 lux@F1.6 (Color, 30 IRE); 0.0005 lux@F1.6 (B/W, 30 IRE); 0 lux (illuminator on) |
| S/N Ratio | ≥55 dB |
| Illumination Distance & Type |
Smart Dual Light: IR 250 m (820.21 ft) + Warm light 100 m (328.08 ft) Illuminator count: 6 (Dual light fusion) |
| Illuminator Control | Zoom Prio; Manual; Auto; Off |
Lens & DORI Optics (45× Optical Zoom)
| Focal Length / Aperture | 3.95 mm – 177.25 mm (45× zoom) | F1.6–F4.95 | |||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Field of View | H: 65.7°–1.9°; V: 39.4°–1.1°; D: 73.1°–2.1° | |||||||||||||||
| Focus Control / Iris Control | Auto; Semi-auto; Manual | Auto/Manual/Iris Prio | |||||||||||||||
| Close Focus Distance | 0.1 m – 1 m (0.33 ft – 3.28 ft) | |||||||||||||||
| DORI Distance (EN-62676-4) |
|
Elite Intelligence – Xinghan Large-Scale AI Models
| Video Metadata | Motor vehicle (10 attributes), non-motor vehicle (8 attributes), face (6 attributes), human body (8 attributes). Supports snapshot optimization and high-quality face upload. |
|---|---|
| IVS Perimeter Protection | Tripwire, intrusion, crossing fence, loitering, abandoned/missing object, fast moving, parking detection, people gathering, human alarm classification, linkage tracking. |
| Face Detection | 6 attributes + 8 expressions, face cutout as one-inch photo, real-time/quality priority/optimization snapshot strategies. |
| Construction Monitoring (PPE) |
Helmet detection: 6 colors (red, orange, yellow, blue, white, black) – alarm on no helmet or wrong color. Work uniform compliance: Up to 5 sample libraries (1000 images total, 1080p JPG). Alarm when similarity below threshold. Additional attributes: Uniform color, mask wearing, shoe covers. Lone worker & post abandonment: Alarm when only one person in zone or no person detected (e.g., worker left post). |
| Smart Tracking / SMD / AcuPick | WizTracking; SMD 4.0; AcuPick for fast human/vehicle search through live/recorded video. |
| Auto Patrol | After IVS event, PTZ automatically patrols predefined key points to detect unknown threats in real time. |
| Active Deterrence – Light & Sound |
Light Warning: Red and blue lights, flash duration 5–30 s, frequency high/medium/low. Sound Warning: 11 built-in voice alarms + 10 custom imports, volume 0–100 adjustable, playback frequency 1–10 times (requires external speaker for use). |
Video & Audio Specifications
| Compression / Smart Codec | Smart H.265+; H.265; Smart H.264+; H.264; H.264B; H.264H; MJPEG (sub stream 1 only) |
|---|---|
| Streaming Capability | 3 streams |
| Resolution Options | 1080p (1920×1080), 960p, 720p, D1, VGA, CIF |
| Video Frame Rate |
Main stream: 1080p/1.3M/720p @ 1–50/60 fps Sub stream 1: D1/VGA/CIF @ 1–25/30 fps Sub stream 2: 1080p/1.3M/720p @ 1–25/30 fps |
| Bit Rate Control / Bit Rate | VBR/CBR. H.264: 64–11264 kbps; H.265: 25–6912 kbps |
| WDR / Image Enhancements | 120 dB True WDR, BLC, HLC, 2D/3D NR, ROI, Electronic Defog, EIS, Digital Zoom (16×), Image Rotation 180° |
| Privacy Masking | Up to 24 areas (max 8 in same view), multiple colors and mosaic available |
| Audio | Built-in dual mic + speaker | Audio compression: PCM, G.711a, G.711Mu, G.726, MPEG2-Layer2, G722.1, G729, G723 Audio input (LINE IN) mutually exclusive with built‑in mic; audio output (LINE OUT) mutually exclusive with built‑in speaker. |
PTZ & Mechanical Specifications
| Pan/Tilt Range | Pan: 0°–360° endless; Tilt: –20°–+90°, auto flip 180° |
|---|---|
| Manual Control Speed | Pan: 0–260°/s; Tilt: 0–140°/s |
| Preset Speed | Pan: 300°/s; Tilt: 200°/s |
| Preset / Tour / Pattern / Scan | 300 presets, 8 tours, 5 patterns, 5 scans |
| Idle Motion / Power-off Memory | Preset/Pattern/Tour/Scan; Yes |
| PTZ Protocol | DH-SD; Pelco-P/D (auto recognition) |
Network, Storage & Cybersecurity
| Network Port | RJ-45 (10/100 Base-T) |
|---|---|
| Network Protocols | HTTP; HTTPS; TCP/IP; IPv4; IPv6; RTSP; UDP; SMTP; NTP; DHCP; DNS; DDNS; 802.1x; SSL; QoS; FTP; UPnP; SNMP; PPPoE; RTMP; Bonjour; SMB; NFS |
| Interoperability | ONVIF (Profile S/G/T); CGI; SDK |
| Local Storage | Micro SD card (max 512 GB); FTP/SFTP; NAS |
I/O Interfaces & Alarm (7 Inputs / 2 Outputs)
| RS-485 | 1 (baud rate 1200–9600 bps) | |||
|---|---|---|---|---|
| Audio Input / Output | 1 channel LINE IN (bare wire, mutually exclusive with built‑in mic) + 1 channel LINE OUT (bare wire, mutually exclusive with built‑in speaker) | |||
| Alarm Input | 7 channels (on‑off value input: 0–5 VDC) | |||
| Alarm Output | 2 channels (dry contact) | |||
| Alarm Linkage | Capture; recording; send email; preset; tour; pattern; alarm digital output; audio | Alarm Event | Motion/tampering detection; audio detection; network disconnection; IP conflict; SD card status; storage space detection |
Power, Environment & Protection
| Power Supply | 24 VDC; 2.5 A ±25% OR PoE+ (802.3at) |
|---|---|
| Power Consumption | Basic: 12 W; Max (WDR + IR on + PTZ + alarm): 20 W (24 VDC) |
| Operating Temperature / Humidity | –40 °C to +70 °C (–40 °F to +158 °F) | ≤95% RH |
| Protection Ratings | IP67 (weatherproof), IK10 (vandal resistant), TVS 6000V lightning/surge/voltage transient protection |
| Anti-corrosion Level | Not specified (standard protection) |
| Certifications | CE: EN55035, EN IEC61000-3-2, EN55032, EN60950, EN62368-1 |
Physical Structure
| Casing Material | Metal + plastic |
|---|---|
| Product Dimensions | 208 mm × 202 mm × 325 mm (8.19" × 7.95" × 12.8") (L×W×H) |
| Net Weight / Gross Weight | 4.45 kg (9.81 lb) / 6.62 kg (14.59 lb) |
| Power Adapter | Included |
Order & Pricing Information for Surveillance Products
Please note the following important details when ordering surveillance products from ICCTVZONE:
- Order confirmation: After you place an order, please check the confirmation email from our team. We will confirm stock, lead time and shipping before dispatch.
- Stock & replacements: Inventory status is not real-time. If an item is out of stock, we may propose a compatible replacement model for your approval.
- Final pricing: Prices shown are indicative. The final price is confirmed on the Proforma Invoice (PI) after order confirmation.
- Project-specific pricing: Some products are configured for project requirements; pricing may vary with quantity and specification.
- Minimum order: A minimum order value may apply to non-stock or project items; our team will confirm before processing.
- Shipping costs: Shipping is calculated separately and added to the order total.
- Duties & taxes: Import duties, taxes and customs clearance fees are not included in the product price or shipping quote. These charges are the customer's responsibility.
- Genuine products: We supply genuine products from leading brands with current firmware.
- Technical support: Our engineers provide pre-sales and after-sales technical support.
- Warranty: Warranty terms depend on the product and order type; we will confirm the applicable coverage in writing.
Questions? Contact sales@icctvzone.com.
Why this model
Product Features
What this model is for, what it does well, and what to confirm before it goes on a project.
Best for
Long-range perimeter and construction-site monitoring where operators need 45x zoom, active deterrence, and AI-assisted detection across wide outdoor areas.
Before you orderConfirm your recorder and PoE/power budget can support this PTZ, and check current lead time and quantity availability before ordering.
01
45x Optical Reach
A motorized 3.95–177.25 mm zoom lens lets operators pull in distant details across large sites without adding extra cameras.
02
Dual-Light Night Vision
250 m IR plus 100 m warm light with smart illumination control keeps subjects visible after dark while adapting to scene conditions.
03
Active Deterrence Built In
Red/blue warning lights and 11 voice alarms support real-time intervention, with an external speaker required for audible sound.
