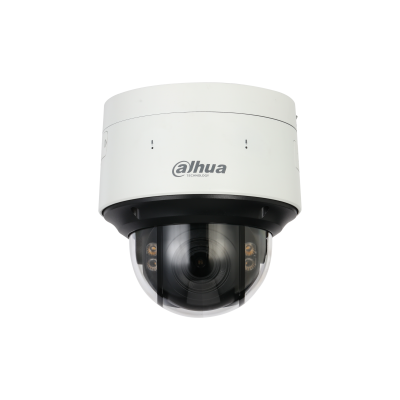

Dahua SD5R404GA-HNF 4MP 4x Starlight+ Smart Dual Illumination PTRZ Camera – 60fps, 140dB WDR, Active Deterrence
Key Performance Highlights – 4MP @60fps + F1.0 Ultra-Low Light + All-in-One AI
- STARVIS™ CMOS & 4× Optical Zoom: 1/1.8" sensor with F1.0–F1.2 large aperture (2.8–12 mm) – exceptional low-light performance and flexible framing.
- 4MP @60fps + 140dB True WDR: Ultra‑smooth video capture and superior dynamic range for challenging lighting conditions.
- Smart Dual Light for Night: 40 m IR + 40 m warm light (dual-core 4 LEDs) with Zoom Prio control – intelligent illumination for any scene.
- Active Deterrence: Warm light warning (flash adjustable) + 11 built-in voice alarms (plus 10 custom imports) – requires external speaker.
- Rich AI Capabilities: Video metadata (10 vehicle/8 non-motor/6 face/8 body), face recognition (up to 10,000 faces), people counting (95% accuracy), parking space management, ANPR (up to 60km/h, 10k allow/blocklist), SMD 4.0, AcuPick.
- Privacy Protection: Automatically masks sensitive information (faces/bodies) in real time – ideal for public or regulated environments.
- PTRZ Flexibility & Rugged Design: Pan 0–355°, tilt 0–90°, rotate 0–355°. IP67/IK10, TVS 6000V surge protection, –40°C to +70°C operation.
- Built-in Dual Mic & Speaker: Secure two-way audio with clear talk‑back and broadcast capabilities.
Camera Specification – 4MP STARVIS™ PTRZ
| Image Sensor | 1/1.8" CMOS (STARVIS™) |
|---|---|
| Max. Resolution | 4MP – 2688 (H) × 1520 (V) |
| ROM / RAM | 4 GB / 2 GB |
| Electronic Shutter Speed | 1 s – 1/30,000 s |
| Scanning System | Progressive |
| Min. Illumination | Color: 0.001 lux@F1.0; B/W: 0.0001 lux@F1.0; 0 lux (illuminator on) |
| S/N Ratio | ≥55 dB |
| Illumination Distance & Type |
Smart Dual Light: IR 40 m (131.2 ft) + Warm light 40 m (131.2 ft) Illuminator count: 4 (Dual-core light) |
| Illuminator Control | Zoom Prio; Manual; Auto; Off |
| PTRZ Movement | Pan: 0°–355°; Tilt: 0°–90°; Rotate: 0°–355°; Power-off Memory: Yes |
Lens & DORI (4× Optical Zoom, F1.0 Super Aperture)
| Focal Length / Aperture | 2.8 mm – 12 mm (4× zoom) | F1.0–F1.2 | |||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Field of View | H: 114.9°–50.3°; V: 61.1°–28.4°; D: 129.3°–56.2° | |||||||||||||||
| Focus Control / Iris Control | Auto; semi-auto; manual | Auto | |||||||||||||||
| Close Focus Distance | 1 m – 2.5 m (3.28 ft – 8.20 ft) | |||||||||||||||
| DORI Distance (EN-62676-4) |
|
WizMind Intelligence – Complete AI Suite
| Video Metadata | Motor vehicle (10 attributes), non-motor vehicle (8 attributes), face (6 attributes), human body (8 attributes). Supports snapshot optimization and privacy protection. |
|---|---|
| IVS Perimeter Protection | Tripwire, intrusion, crossing fence, loitering, abandoned/missing object, fast moving, parking detection, people gathering, vehicle/human classification, privacy protection. |
| Face Recognition | Up to 5 databases / 10,000 faces; 6 attributes + 8 expressions; face cutout as face or one‑inch photo; real‑time/quality‑first/optimization strategies; privacy protection. |
| People Counting | Advanced depth‑sensing + deep learning; up to 95% counting accuracy; separate entrance/exit statistics; privacy protection. |
| Parking Space Management | Manage outdoor/planned lots; multiple areas; display total/available spaces; alarm based on predefined vehicle count. |
| ANPR (License Plate Recognition) | Recognizes plates at speeds up to 60 km/h. Attributes: license plate, vehicle type/color, seatbelt, smoking, calling. Supports 10,000 allowlist/blocklist records. |
| SMD / AcuPick | SMD 4.0 for smart motion detection; AcuPick for fast human/vehicle search across live/recorded video. |
| Active Deterrence |
Light Warning: Warm light flash, duration 5–30 s, frequency high/medium/low. Sound Warning: 11 built-in + 10 custom voice alarms, volume 0–100%, play times 1–10 (requires external speaker). |
Video & Audio Specifications – 5 Streams, 60fps, 140dB WDR
| Compression / Smart Codec | Smart H.265+; H.265; Smart H.264+; H.264; H.264B; H.264H; MJPEG (sub stream 1 only) |
|---|---|
| Streaming Capability | 5 streams |
| Resolution Options | 4M (2688×1520), 4M (2560×1440), 3M, 1080p, 960p, 720p, D1, VGA, CIF |
| Video Frame Rate |
Main stream: 4M (2688×1520) @ 1–25/30 fps; 4M (2560×1440)/3M/1080p/720p @ 1–50/60 fps Sub stream: D1/VGA/CIF @ 1–25/30 fps Third stream: 1080p/1.3M/720p @ 1–25/30 fps Fourth & Fifth streams: D1/VGA/CIF @ 1–25/30 fps |
| Bit Rate Control / Bit Rate | VBR/CBR. H.264: 96–14848 kbps; H.265: 38–8960 kbps |
| WDR / Image Enhancements | 140 dB True WDR, BLC, HLC, 2D/3D NR, ROI, Electronic Defog, EIS, Digital Zoom (16×), Image Rotation 180° |
| Privacy Masking | Up to 8 areas, automatic privacy protection (faces/bodies masking) |
| Audio | Built-in dual MIC + speaker | Audio compression: PCM, G.711a, G.711Mu, G.726, MPEG2-Layer2, G722.1, G729, G723 | 1 audio input + 1 audio output |
Network, Storage & Cybersecurity
| Network Port | RJ-45 (10/100 Base-T) |
|---|---|
| Network Protocols | HTTP; HTTPS; TCP/IP; IPv4; IPv6; RTSP; UDP; SMTP; NTP; DHCP; DNS; DDNS; 802.1x; SSL; QoS; FTP; UPnP; SNMP; PPPoE; RTMP; Bonjour; SMB; NFS |
| Interoperability | ONVIF (Profile S/G/T); CGI; SDK |
| Local Storage | Micro SD card (max 512 GB); FTP/SFTP; NAS |
| User/Host / Bandwidth | 20 users (total bandwidth 64 Mbps) |
| Cybersecurity | WSSE, account lockout, HTTPS, IP/MAC filtering, security logs, trusted upgrade/boot |
| Management Software / Browser | DMSS; DSS Pro; IE9+, Chrome 41+, Firefox 50+, Safari 10+, iOS 10+ |
I/O Interfaces & Alarm
| Analog Output | 1 channel CVBS (BNC) |
|---|---|
| RS-485 | 1 (baud rate 1200–9600 bps) |
| Audio I/O | 1 input (LINE IN) + 1 output (LINE OUT) |
| Alarm Input / Output | 2 inputs + 1 output |
| Alarm Linkage | Capture; recording; send email; alarm digital output |
| Alarm Event | Motion/tampering; audio detection; network/IP conflict; SD card status; storage space detection |
| Cable Length | 530 mm (20.87") |
Power, Environment & Protection
| Power Supply | 12 VDC (±10%, 4A) OR 24 VAC (±25%, 3A) OR PoE (802.3at) |
|---|---|
| Power Consumption | Basic: 7 W; Max (illuminator + PTZ): 16 W (all power options) |
| Power Output | 12 VDC, 0.1 A |
| Operating Temperature / Humidity | –40 °C to +70 °C (–40 °F to +158 °F) | ≤95% RH |
| Protection Ratings | IP67 (weatherproof), IK10 (vandal resistant), TVS 6000V lightning/surge protection |
| Certifications | CE: EN 50130-4, EN 55032, EN 55035, EN 61000-3-3, EN IEC 61000-3-2, EN 62368-1 |
Physical Structure
| Casing Material | ADC12 + PC |
|---|---|
| Product Dimensions | 171.5 mm × Φ160.7 mm (6.75" × Φ6.33") |
| Net Weight / Gross Weight | 2.4 kg (5.29 lb) / 3.0 kg (6.61 lb) |
| Power Adapter | Optional |
Order & Pricing Information for Surveillance Products
Please note the following important details when ordering surveillance products from ICCTVZONE:
- Order confirmation: After you place an order, please check the confirmation email from our team. We will confirm stock, lead time and shipping before dispatch.
- Stock & replacements: Inventory status is not real-time. If an item is out of stock, we may propose a compatible replacement model for your approval.
- Final pricing: Prices shown are indicative. The final price is confirmed on the Proforma Invoice (PI) after order confirmation.
- Project-specific pricing: Some products are configured for project requirements; pricing may vary with quantity and specification.
- Minimum order: A minimum order value may apply to non-stock or project items; our team will confirm before processing.
- Shipping costs: Shipping is calculated separately and added to the order total.
- Duties & taxes: Import duties, taxes and customs clearance fees are not included in the product price or shipping quote. These charges are the customer's responsibility.
- Genuine products: We supply genuine products from leading brands with current firmware.
- Technical support: Our engineers provide pre-sales and after-sales technical support.
- Warranty: Warranty terms depend on the product and order type; we will confirm the applicable coverage in writing.
Questions? Contact sales@icctvzone.com.
Why this model
Product Features
What this model is for, what it does well, and what to confirm before it goes on a project.
Best for
Buyers who need a rugged 4MP PTRZ PTZ with 4x zoom, dual illumination and AI analytics for perimeter, parking and public-space monitoring.
Before you orderConfirm your recorder and VMS support this model's AI features and that the external speaker required for voice alarms is included in your order.
01
Low-Light 4MP Capture
The F1.0 aperture and STARVIS sensor help deliver clearer detail in dim scenes, so nighttime monitoring stays usable.
02
Smart Dual Illumination
IR and warm light each reach 40 m, giving flexible night coverage that can adapt to different scenes and distances.
03
AI and Active Deterrence
Built-in analytics plus warm-light warning and voice alarms support faster response and more organized event review.
