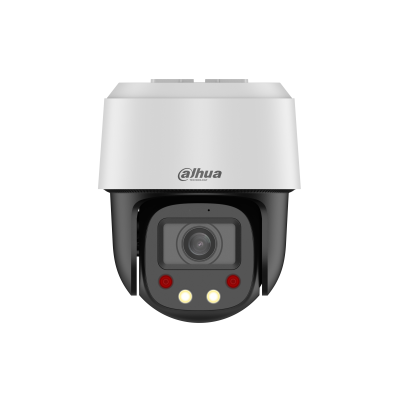

Dahua SD2C405NB-GNY-A-PV-S2 4MP 5x Dual Light WizSense PTZ Camera

In stock

SKU: SD2C405NB-GNY-A-PV-S2

$240.00

Lead time & order confirmation

Most orders ship within 30 working days. Stock status shown on this page is not real-time.

After you place your order, please check the order confirmation email from our team. We will confirm stock, lead time and shipping before dispatch. If an item is out of stock, we may propose a compatible replacement model for your approval.

Working to a project deadline? Contact us before ordering.

Need help with this product?

Our team can confirm specifications, stock and pricing before you order.

Email sales@icctvzone.com or contact us.

Product variants

Authentic productsGenuine brands, traceable supply

Worldwide shippingTracked delivery to 200+ countries

Technical supportPre-sales and after-sales help

Daniel LeventSenior Engineer SalesOnline now

Need help choosing the right model? I can confirm specifications, stock and lead time before you order.

Email me Contact us

SD2C405NB-GNY-A-PV-S2

4MP 5x Smart Dual Light WizSense Network PTZ Camera

> 1/2.8" 4Megapixel CMOS

> 5× optical zoom

> Max. 25/30 fps@4MP

> IVS(Tripwire and Intrusion Detection)

> Built-in Mic and Speaker for Two-way Talk

> SMD 3.0

> Warm Light & Sound Warning

> Auto Tracking Lite

Camera

Image Sensor

1/2.8" CMOS

Pixel

4 MP

Max. Resolution

2560 (H) × 1440 (V)

ROM

128 MB

RAM

128 MB

Electronic Shutter Speed

1 s–1/30,000 s

Scanning System

Progressive

Min. Illumination

0.05 lux@F1.6 (Color, 30 IRE);
0.005 lux@F1.6 (B/W, 30 IRE);
0 lux (Illuminator on)

Illumination Distance

30 m (98.43 ft) (warm light); 30 m (98.43 ft) (IR)

Illuminator On/Off Control

Manual; auto; off

Illuminator Number

2 (IR light); 2 (warm light)

Lens

Focal Length

2.7 mm–13.5 mm

Max. Aperture

F1.6–F3.0

Field of View

H: 96.73°–24.76°; V: 51.98°–13.91°; D: 110.58°–29.74°

Optical Zoom

5×

Focus Control

Auto; Semi-auto; Manual

Close Focus Distance

0.6 m (1.97 ft)

Iris Control

Fixed

DORI Distance

Lens	Detect	Observe	Recognize	Identify
2.7 mm–13.5 mm	250 m ( 820.21 ft)	98.7 m ( 323.82 ft)	50 m ( 164.04 ft)	25 m ( 82.02 ft)
*DORI (Detect, Observe, Recognize, Identify) is a standard system (EN-62676-4) for defining the ability of a person viewing the video to distinguish persons or objects within a covered area. The numbers in this table do not reflect intelligent function distances. For intelligent function distances, refer to installation and commissioning manual/project design tool.

PTZ

Pan/Tilt Range

Pan: 0° to 345°;
Tilt: 0° to +90°

Manual Control Speed

Pan: 0.1°–74°/s;
Tilt: 0.1°–36.4°/s

Preset Speed

Pan: 0.1°–62°/s;
Tilt: 0.1°–36.3°/s

Preset

300

Power-off Memory

Yes

Idle Motion

Preset

Smart Event

IVS

Tripwire and intrusion

Human Detection

YES

Vehicle Detection

YES

Intelligence

Smart Tracking

Auto Tracking Lite

SMD

SMD 3.0

Active Deterrence

Light Warning

Warm light warning
Flash duration: 5 s–30 s; Flash frequency: high, medium, low

Sound Warning

Offers 1 sound alarm and supports importing 10 custom sound alarms.
Sound: 0–100
Play times can be set from 1 to 10.

Video

Video Compression

Smart H.265+;H.265;Smart H.264+;H.264B;H.264M;H.264H;MJPEG(Sub Stream 1)

Streaming Capability

2 streams

Resolution

4M (2560 × 1440); 3M (2304 × 1296); 1080p (1920 × 1080); 1.3M (1280 × 960);720p (1280 × 720); D1 (704 × 576/704 × 480); VGA (640 × 480); CIF (352 × 288/352 × 240)

Video Frame Rate

Main stream: 4M/1080p/1.3M/720p@(1–25/30 fps)
Sub stream 1: D1/VGA/CIF@(1–25/30 fps)

Bit Rate Control

CBR/VBR

Video Bit Rate

H264: 96 kbps–8,192 kbps
H265: 38 kbps–8,192 kbps

Day/Night

Auto (ICR); Color/B/W

BLC

Yes

WDR

120 dB

HLC

Yes

White Balance

Auto; indoor; outdoor; tracking; manual; sodium lamp; natural light; street lamp

Gain Control

Auto; manual

Noise Reduction

2D NR; 3D NR

Motion Detection

Yes

Region of Interest (RoI)

Yes

Image Stabilization

Electronic Image Stabilization (EIS)

Defog

Electronic

Digital Zoom

5.5x

Image Rotation

180°

S/N Ratio

≥55 dB

Audio

Audio Compression

PCM; G.711a; G.711Mu; G.726

Built-in MIC

YES

Built-in Speaker

YES

Network

Network Port

RJ-45 (10/100 Base-T)

Network Protocol

HTTP;HTTPS;TCP/IP;IPv4;RTSP;UDP;SMTP;NTP;DHCP;DNS;DDNS;IPv6;SSL;FTP;ARP;RTCP;RTP;IP Filter;RTMP

Interoperability

ONVIF (Profile S & Profile G & Profile T);CGI;SDK;P2P

Streaming Method

Unicast/Multicast

User/Host

20 (total bandwidth: 64 M)

Storage

Micro SD card (Up to 256 GB); FTP

Browser

IE: IE 7 and later versions; Chrome; Firefox; Safari

Management Software

DMSS;DSS Pro

Mobile Client

iOS;Android

Certification

Certifications

CE: EN55032/EN50130-4

Port

Audio Input

1 channel (built-in mic)

Audio Output

1 channel (built-in speaker)

Alarm Linkage

Capture; preset; recording; audio; sending email

Alarm Event

Motion/Tampering detection; audio detection; network disconnection detection; IP conflict detection; memory card state detection; memory space detection

Power

Power Supply

12 VDC, 1.5 A ± 10%
PoE (802.3af)

Power Consumption

Basic: 5 W; Max: 12.95 W (illuminator + PTZ)

Power Adapter

Optional

Environment

Operating Temperature

–30 °C to +55 °C (–22 °F to +131 °F)

Operating Humidity

≤95%

Protection

TVS 2000 V lightning proof; surge protection; voltage transient protection;Waterproof and Dustproof

Structure

Product Dimensions

155.5 mm × Φ129.6 mm (6.12" × Φ5.10")

Net Weight

0.65 kg (1.43 lb)

Gross Weight

0.715 kg (1.58 lb)

Filter

Remarks

The precision of the presets for PTZ cameras might
vary depending on different series. For scenes with high
requirements on the precision, contact your local sales
representative for assistance with selecting the model.

Why this model

Product Features

What this model is for, what it does well, and what to confirm before it goes on a project.

Best for

Outdoor site and perimeter monitoring where a compact 4MP PTZ with 5x optical zoom, dual-light illumination and two-way talk is needed.

Before you orderConfirm your NVR or recorder supports this Dahua network PTZ model and that the mounting location provides suitable power and network cabling before ordering.

01

Clear 4MP Detail

A 1/2.8-inch 4MP sensor captures 2560 x 1440 video so operators can see more detail across the monitored area.

02

5x Optical Zoom

The 2.7-13.5 mm motorized lens gives 5x optical zoom, letting you close in on activity without losing image quality.

03

Dual Light Coverage

Warm light and IR illumination each reach up to 30 m, supporting color and black-and-white viewing in low light.
