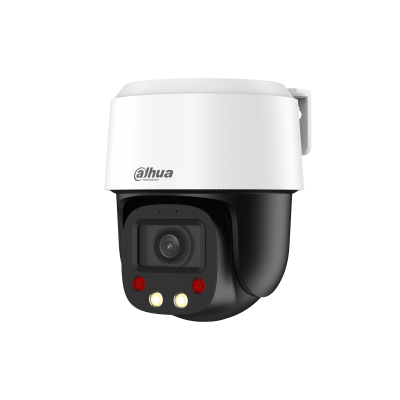

Dahua SD2C405NB-GNY-A-PV-S2 4MP 5x Smart Dual Light WizSense Network PTZ Camera
This is a placeholder price. Please contact us for a quote.
Most orders ship within 30 working days. Stock status shown on this page is not real-time.
After you place your order, please check the order confirmation email from our team. We will confirm stock, lead time and shipping before dispatch. If an item is out of stock, we may propose a compatible replacement model for your approval.
Working to a project deadline? Contact us before ordering.
Our team can confirm specifications, stock and pricing before you order.
Email sales@icctvzone.com or contact us.
Couldn't load pickup availability
Need help choosing the right model? I can confirm specifications, stock and lead time before you order.
Dahua SD2C405NB-GNY-A-PV-S2 4MP 5x Smart Dual Light PTZ Camera – Active Deterrence, Auto Tracking Lite
Key Performance Highlights – 4MP PTZ with Active Deterrence & Smart Dual Light
- 4MP High-Quality Imaging & 5× Optical Zoom: 2.7–13.5 mm motorized zoom lens provides flexible framing from wide to tele.
- Smart Dual Light for Night: 30 m IR + 30 m warm light – flexible illumination with intelligent control for optimal night visibility.
- Active Deterrence: Warm light flashing (duration 5–30s, 3 frequencies) + 1 built-in voice alarm (plus 10 custom imports) – proactively drives away intruders.
- Deep Learning Human & Vehicle Detection: Reduces false alarms by filtering irrelevant motion. Supports IVS (tripwire, intrusion).
- Auto Tracking Lite & SMD 3.0: Automatically follows moving targets; smart motion detection with human/vehicle classification.
- 120dB True WDR & EIS: Handles challenging lighting conditions; electronic image stabilization for stable video.
- Two-Way Talk & PT Control: Built-in microphone and speaker for real-time communication. Pan: 0°–345°, tilt: 0°–90°.
- Rugged & Reliable: IP66 weatherproof, TVS 6000V surge protection, operates –30°C to +55°C.
Camera Specification – 4MP PTZ Camera
| Image Sensor | 1/2.8" CMOS |
|---|---|
| Max. Resolution | 4MP – 2560 (H) × 1440 (V) |
| ROM / RAM | 128 MB / 128 MB |
| Electronic Shutter Speed | 1 s – 1/30,000 s |
| Scanning System | Progressive |
| Min. Illumination | Color: 0.05 lux@F1.6 (30 IRE); B/W: 0.005 lux@F1.6 (30 IRE); 0 lux (illuminator on) |
| Illumination Distance & Type |
Smart Dual Light: 30 m IR + 30 m warm light Illuminator count: 2 IR + 2 warm light |
| Illuminator Control | Manual; auto; off |
Lens & DORI Optics (5× Optical Zoom)
| Focal Length / Aperture | 2.7 mm – 13.5 mm (5× zoom) | F1.6–F3.0 | ||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|
| Field of View | H: 96.73°–24.76°; V: 51.98°–13.91°; D: 110.58°–29.74° | ||||||||||
| Focus Control / Iris Control | Auto; Semi-auto; Manual | Fixed | ||||||||||
| Close Focus Distance | 0.6 m (1.97 ft) | ||||||||||
| DORI Distance (EN-62676-4) |
|
WizSense Intelligence & Active Deterrence
| IVS (Perimeter Protection) | Tripwire; intrusion. |
|---|---|
| Human / Vehicle Detection | Yes – deep learning-based classification. |
| Smart Tracking | Auto Tracking Lite – automatically follows moving targets. |
| SMD 3.0 | Smart Motion Detection with human/vehicle filtering. |
| Active Deterrence – Light Warning | Warm light flashing – duration 5–30 s, frequency high/medium/low adjustable. |
| Active Deterrence – Sound Warning | 1 built-in sound alarm + supports 10 custom voice imports; volume 0–100%; play times 1–10 adjustable. |
Video & Audio Specifications – 2 Streams, 120dB WDR
| Compression / Smart Codec | Smart H.265+; H.265; Smart H.264+; H.264B/H.264M/H.264H; MJPEG (sub stream 1) | Streaming Capability | 2 streams | |
|---|---|---|---|---|
| Resolution Options | 4M (2560×1440), 3M, 1080p, 1.3M, 720p, D1, VGA, CIF | |||
| Video Frame Rate | Main stream: 4M/1080p/1.3M/720p @ 1–25/30 fps Sub stream 1: D1/VGA/CIF @ 1–25/30 fps |
|||
| Bit Rate Control / Bit Rate | VBR/CBR. H.264: 96–8192 kbps; H.265: 38–8192 kbps | |||
| WDR / Image Enhancements | 120 dB True WDR, BLC, HLC, 2D/3D NR, ROI, EIS, Electronic Defog, Digital Zoom (5.5×), Image Rotation 180° | |||
| Audio | Built-in mic + speaker for two-way talk | Audio compression: PCM, G.711a, G.711Mu, G.726 |
PT & Mechanical Specifications
| Pan/Tilt Range | Pan: 0°–345°; Tilt: 0°–90° |
|---|---|
| Manual Control Speed | Pan: 0.1–74°/s; Tilt: 0.1–36.4°/s |
| Preset Speed | Pan: 0.1–62°/s; Tilt: 0.1–36.3°/s |
| Preset / Idle Motion | 300 presets; idle motion: preset |
| Power-off Memory | Yes |
Network, Storage & Cybersecurity
| Network Port | RJ-45 (10/100 Base-T) |
|---|---|
| Network Protocols | HTTP; HTTPS; TCP/IP; IPv4; RTSP; UDP; SMTP; NTP; DHCP; DNS; DDNS; IPv6; SSL; FTP; ARP; RTCP; RTP; IP Filter; RTMP |
| Interoperability | ONVIF (Profile S/G/T); CGI; SDK; P2P |
| Local Storage | Micro SD card (up to 256 GB); FTP |
| User/Host / Bandwidth | 20 users (total bandwidth 64 Mbps) |
| Management Software / Browser | DMSS; DSS Pro; IE7+, Chrome, Firefox, Safari; iOS/Android mobile app |
I/O Interfaces & Alarm
| Audio I/O | 1 input (built-in mic) + 1 output (built-in speaker) |
|---|---|
| Alarm Linkage | Capture; preset; recording; audio; send email |
| Alarm Event | Motion/tampering detection; audio detection; network/IP conflict; SD card status; storage space |
Power, Environment & Protection
| Power Supply | 12 VDC, 1.5 A ±10% OR PoE (802.3af) | |||
|---|---|---|---|---|
| Power Consumption | Basic: 5 W; Max (illuminator + PTZ): 12.95 W | Operating Temperature / Humidity | –30 °C to +55 °C (–22 °F to +131 °F) | ≤95% RH | |
| Protection Ratings | IP66 (weatherproof), TVS 2000V lightning/surge/voltage transient protection | |||
| Certifications | CE: EN55032/EN50130-4 |
| Casing Material | Metal + plastic |
|---|---|
| Product Dimensions | 155.5 mm × Φ129.6 mm (6.12" × Φ5.10") |
| Net Weight / Gross Weight | 0.65 kg (1.43 lb) / 0.715 kg (1.58 lb) |
| Power Adapter | Optional |
| Note | Preset precision may vary by series; consult sales for high-precision requirements. |
Order & Pricing Information for Surveillance Products
Please note the following important details when ordering surveillance products from ICCTVZONE:
- Order confirmation: After you place an order, please check the confirmation email from our team. We will confirm stock, lead time and shipping before dispatch.
- Stock & replacements: Inventory status is not real-time. If an item is out of stock, we may propose a compatible replacement model for your approval.
- Final pricing: Prices shown are indicative. The final price is confirmed on the Proforma Invoice (PI) after order confirmation.
- Project-specific pricing: Some products are configured for project requirements; pricing may vary with quantity and specification.
- Minimum order: A minimum order value may apply to non-stock or project items; our team will confirm before processing.
- Shipping costs: Shipping is calculated separately and added to the order total.
- Duties & taxes: Import duties, taxes and customs clearance fees are not included in the product price or shipping quote. These charges are the customer's responsibility.
- Genuine products: We supply genuine products from leading brands with current firmware.
- Technical support: Our engineers provide pre-sales and after-sales technical support.
- Warranty: Warranty terms depend on the product and order type; we will confirm the applicable coverage in writing.
Questions? Contact sales@icctvzone.com.
Product Features
What this model is for, what it does well, and what to confirm before it goes on a project.
Best for perimeter and yard surveillance where active deterrence, auto tracking and dual-light night visibility are needed.
The 2.7–13.5 mm motorized zoom lens lets you move from wide coverage to tighter detail without remounting the camera.
IR and warm light each reach 30 m with intelligent control, so night scenes stay visible while deterrence lighting can be triggered.
Flashing warm light plus built-in and custom voice alarms help drive intruders away before an incident escalates.
