Dahua SD29404DB-GNY-W 4MP 4x IR WizSense PTZ Camera

In stock

SKU: SD29404DB-GNY-W

$288.00

Lead time & order confirmation

Most orders ship within 30 working days. Stock status shown on this page is not real-time.

After you place your order, please check the order confirmation email from our team. We will confirm stock, lead time and shipping before dispatch. If an item is out of stock, we may propose a compatible replacement model for your approval.

Working to a project deadline? Contact us before ordering.

Need help with this product?

Our team can confirm specifications, stock and pricing before you order.

Email sales@icctvzone.com or contact us.

Product variants

Authentic productsGenuine brands, traceable supply

Worldwide shippingTracked delivery to 200+ countries

Technical supportPre-sales and after-sales help

Daniel LeventSenior Engineer SalesOnline now

Need help choosing the right model? I can confirm specifications, stock and lead time before you order.

Email me Contact us

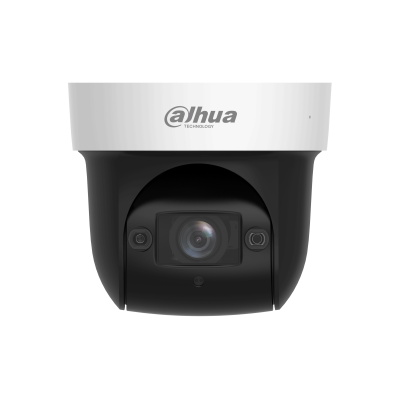

SD29404DB-GNY-W

4MP 4x IR WizSense Network PTZ Camera

> 1/2.8" 4Megapixel CMOS.

> Max. 25/30fps@4MP.

> IR distance up to 50 m.

> 4x optical zoom.

> WDR.

> SMD 3.0.

> Built-in Mic.

> Wi-Fi

****

Camera

Image Sensor

1/2.8"CMOS

Pixel

4 MP

Max. Resolution

2560 (H) × 1440 (V)

ROM

128 MB

RAM

512 MB

Electronic Shutter Speed

1/1s–1/30,000s

Scanning System

Progressive

Min. Illumination

Color: 0.005 lux@F1.6
B/W: 0.0005 lux@F1.6
0 lux (IR light on)

Illumination Distance

50 m (164.04 ft) (IR)

Illuminator On/Off Control

Zoom Prio; Manual; Auto; Off

Illuminator Number

2 (IR)

Lens

Focal Length

2.8 mm–12 mm

Max. Aperture

F1.6–F3.0

Field of View

H: 94.9°–30.1°; V: 51°–17.1°; D: 112.3°–34.6°

Optical Zoom

4×

Focus Control

Auto; semi-auto; manual

Close Focus Distance

1.5 m (4.92 ft)

PTZ

Pan/Tilt Range

Pan: 0° to 360° not endless
Tilt: –0° to +90°

Manual Control Speed

Pan: 0.1°/s–100°/s
Tilt: 0.1°/s–60°/s

Preset Speed

Pan: 100°/s; Tilt: 60°/s

Preset

300

Tour

8 (up to 32 presets per tour)

Pattern

5

Scan

5

Power-off Memory

Yes

Idle Motion

Pattern; Preset; Scan; Tour

PTZ Protocol

DH-SD4

Intelligence

IVS (Perimeter Protection)

Tripwire; intrusion; crossing fence detection; loitering detection; abandoned/missing object; fast moving; parking detection; people gathering; human alarm classification

Face Detection

Supports face detection,snapshot, and face enhancement; Supports face cutout: Face, one-inch photo; Capturing strategies include real-time capturing and quality first.

SMD

Yes

Video

Video Compression

H.264H; H.264B; Smart H.265+; H.264; H.265; MJPEG (Sub Stream); Smart H.264+

Streaming Capability

3 streams

Resolution

4M (2560 × 1440); 3M (2304 × 1296); 1080P (1920 × 1080); 1.3M (1280 × 960); 720P (1280 × 720); D1 (704 × 576/704 × 480); VGA (640 × 480); CIF (352 × 288/352 × 240)

Video Frame Rate

Main stream: 4M/3M/1080p/1.3M/720p@(1-25/30 fps)
Sub stream 1: D1/VGA/CIF@(1-25/30 fps)
Sub stream 2: 720p@(1-25/30 fps)

Bit Rate Control

CBR/VBR

Video Bit Rate

H264: 24 Kbps–13056 Kbps
H265: 9 Kbps–7936 Kbps

Day/Night

ICR: Auto; color; B/W
Electronic: Auto; color; B/W

BLC

Yes

WDR

120 dB

HLC

Yes

White Balance

Auto; indoor; outdoor; tracking; manual; sodium lamp; natural light; street lamp

Gain Control

Auto; manual; gain prio

Noise Reduction

2D NR; 3D NR

Motion Detection

Yes

Region of Interest (RoI)

Yes

Image Stabilization

Electronic

Defog

Electronic

Digital Zoom

16 ×

Image Rotation

180°

S/N Ratio

≥ 55 dB

Audio

Audio Compression

G.711a; G.711Mu; G.726;
MPEG2-Layer2; G722.1; PCM

Network

Network Port

RJ-45 (10/100 Base-T)

Wi-Fi

Yes

Wi-Fi Standard

IEEE802.11b; IEEE802.11g; IEEE802.11n

Wi-Fi Frequency Range

2.4 GHz

Wi-Fi Transmission Rate

75 Mbps

Network Protocol

FTP; RTMP; IPv6; Bonjour; IPv4; DNS; RTCP; PPPoE; NTP; RTP; 802.1x; HTTPS; SNMP; TCP/IP; DDNS; UPnP; NFS; ICMP; UDP; IGMP; SMB; HTTP; SSL; DHCP; SMTP; Qos; RTSP; ARP

Interoperability

CGI; SDK; ONVIF (Profile S&G&T); P2P

Streaming Method

Unicast/Multicast

User/Host

20 (total bandwidth: 64 M)

Storage

Micro SD card (512 GB); FTP/SFTP; NAS

Browser

IE 9 and later versions
Chrome 41 and later versions
Firefox 50 and later versions
Safari 10 and later versions

Management Software

DMSS; DSS Pro

Mobile Client

iOS; Android

Certifications

CE: EN55032/EN 50130-4/EN 55035/EN61000-3-2/EN61000-3-3
CE-RED: EN300328/EN62311/EN301489-17

Port

Audio Input

1 channel (LINE IN, bare wire,built-in mic (mutually exclusive))

Audio Output

1 channel (LINE OUT,bare wire)

Alarm Input

2 (on-off value input: 0–5 VDC)

Alarm Output

1

Alarm Linkage

Capture; recoding; send email; preset; tour; pattern; alarm digital output; audio

Alarm Event

Motion/Tampering detection; audio detection; network disconnection detection; IP conflict detection; memory card state detection; memory space detection; power exception detection

Power

Power Supply

12 VDC, 2A ± 10% (optional)

Power Consumption

Basic: 5 W
Max: 10 W (illuminator+PTZ)

Environment

Operating Temperature

–30 °C to +50 °C (–22 °F to +122 °F)

Operating Humidity

≤ 95%

Protection

6000V lightning proof; surge protection; voltage transient protection

Structure

Product Dimensions

117.4 mm × Φ132.1 mm (4.62" × Φ5.20")

Net Weight

0.713 kg (1.57 lb)

Gross Weight

1.0 kg (2.20 lb)

********

Why this model

Product Features

What this model is for, what it does well, and what to confirm before it goes on a project.

Best for

Outdoor perimeter and mid-range area surveillance where a compact pan-tilt-zoom camera with IR and built-in mic is needed.

Before you orderConfirm your recorder and network support this camera's Wi-Fi connection and PTZ protocol, and check current lead time before ordering.

01

Clear 4MP Imaging

A 1/2.8" CMOS sensor delivers 2560 x 1440 detail for identifying activity across monitored areas.

02

4x Optical Zoom

The 2.8-12 mm motorized lens lets operators narrow in on subjects without losing image quality.

03

IR and Audio Built In

Up to 50 m IR illumination supports low-light viewing, while the built-in mic adds an audio layer to recordings.
