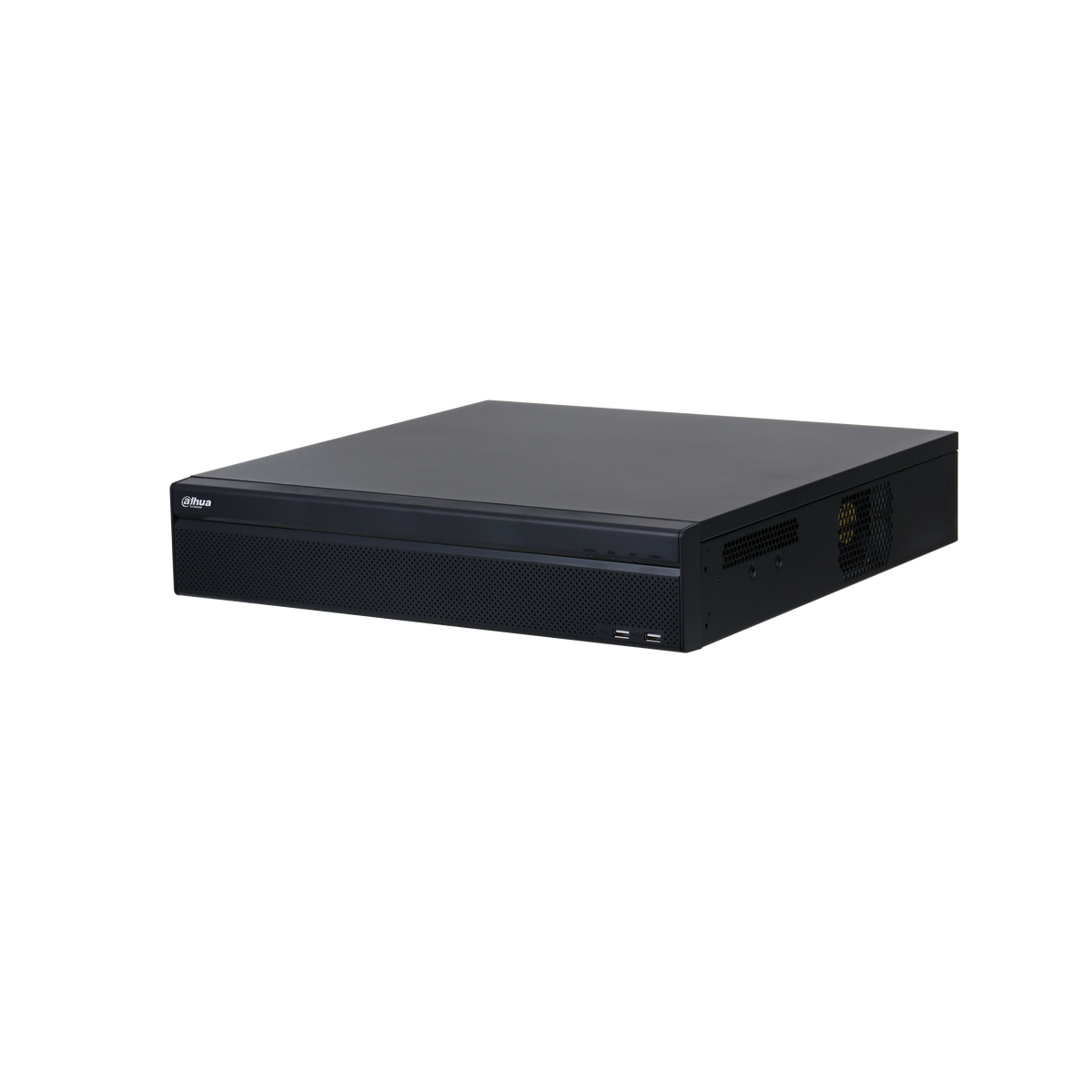

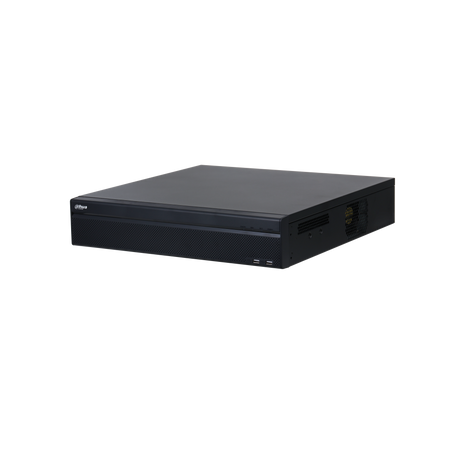

DAHUA NVR5816/32/64-R-16P-4KS2E 16/32/64 Channel 2U 16PoE 4K&H.265 Pro Network Video Recorder
DAHUA NVR5816/32/64-R-16P-4KS2E 16/32/64 Channel 2U 16PoE 4K&H.265 Pro Network Video Recorder
icctvzone

Dahua NVR5864-R-16P-4KS2E 64 Channel 2U 16PoE 4K H.265 Pro NVR

In stock
SKU: NVR5864-R-16P-4KS2E
$1,390.00
Lead time & order confirmation

Most orders ship within 30 working days. Stock status shown on this page is not real-time.

After you place your order, please check the order confirmation email from our team. We will confirm stock, lead time and shipping before dispatch. If an item is out of stock, we may propose a compatible replacement model for your approval.

Working to a project deadline? Contact us before ordering.

Need help with this product?

Our team can confirm specifications, stock and pricing before you order.

Email sales@icctvzone.com or contact us.
Authentic productsGenuine brands, traceable supply
Worldwide shippingTracked delivery to 200+ countries
Technical supportPre-sales and after-sales help
Daniel Levent
Daniel LeventSenior Engineer SalesOnline now

Need help choosing the right model? I can confirm specifications, stock and lead time before you order.

Email meContact us

NVR5864-R-16P-4KS2E

64 Channel 2U 16PoE 4K&H.265 Pro Network Video Recorder

> Smart H.265+/H.265/Smart H.264+/H.264/MJPEG

> Max 320Mbps Incoming Bandwidth

> Supports RAID 0/1/5/10

> Up to 12MP Resolution for Preview and Playback

> 2HDMI/2VGA simultaneous video output

> 1-8 PoE Ports Support 800m ePoE & EoC


Product Data


System

Main Processor

Quad-core embedded processor

Operating System

Embedded LINUX

Audio and Video

IP Camera Input

16/32/64 Channel

Two-way Talk

1 Channel Input, 2 Channel Output, RCA

Display

Interface

2 HDMI, 2 VGA

Resolution

HDMI1: 3840 × 2160 , 1920 × 1080 , 1280 × 1024,

1280 × 720 , 1024 × 768

VGA1: 1920 × 1080 , 1280 × 1024,

1280 × 720 , 1024 × 768

HDMI2/VGA2: 1920 × 1080

Decoding Capability

4-ch@8MP(30fps), 16-ch@1080P(30fps)

Multi-screen Display

1st Screen: 16CH: 1/4/8/9/16

32CH: 1/4/8/9/16/25/36

64CH: 1/4/8/9/16/25/36/64

2nd Screen: 1/4/8/9/16

OSD

Camera title, Time, Camera lock, Motion detection, Recording

Recording

Compression

Smart H.265+/H.265/Smart H.264+/H.264/MJPEG

Resolution

12MP, 8MP, 6MP, 5MP, 4MP, 3MP, 1080P, 1.3MP, 720P, D1 etc.

Bit Rate

16Kbps ~ 20Mbps Per Channel

Record Mode

Manual, Schedule (Regular, MD(Motion Detection) , Alarm, IVS), Stop

Record Interval

1 ~ 120 min (default: 60 min), Pre-record: 1 ~ 30 sec, Post-record: 10 ~ 300 sec

Video Detection and Alarm

Trigger Events

Recording, PTZ, Tour, Alarm Out, Video Push, Email, Snapshot, Buzzer and Screen Tips

Video Detection

Motion Detection, MD Zones: 396 (22 × 18), Video Loss and Tampering

Alarm input

16 Channel

Relay Output

6 Channel

Playback and Backup

Sync Playback

1/4/9/16

Search Mode

Time /Date, Alarm, MD and Exact Search (accurate to second)

Playback Function

Play, Pause, Stop, Rewind, Fast play, Slow Play, Next File, Previous File, Next Camera, Previous Camera, Full Screen, Backup Selection, Digital Zoom

Backup Mode

USB Device/Network/eSATA Device

Third-party Support

Third-party Support

Arecont Vision, Airlive, AXIS, Canon, Dynacolor, JVC, LG, Panasonic, Pelco, PSIA, Samsung, Sanyo, Sony, Watchnet and more

Network

Interface

1 RJ-45 Port (10/100/1000Mbps)

PoE

16 ports (IEEE802.3af/at)

1-8 ports support ePoE & EoC

Network Function

HTTP, HTTPS, TCP/IP, IPv4/IPv6, UPnP, SNMP, RTSP, UDP, SMTP, NTP, DHCP, DNS, IP Filter, PPPoE,DDNS, FTP, Alarm Server, IP Search (Support Dahua IP camera, DVR, NVS, etc.), P2P

Max. User Access

128 users

Smart Phone

iPhone, iPad, Android

Interoperability

ONVIF 2.4, SDK, CGI

Storage

Internal HDD

8 SATA III Ports, Up to 10 TB capacity for each HDD

eSATA

1 eSATA

Auxiliary Interface

USB

4 USB Ports (2 Rear USB 3.0 , 2 Front USB 2.0 )

RS232

1 Port, for PC Communication and Keyboard

RS485

1 Port, for PTZ Control

Electrical

Power Supply

Single, AC100V ~ 240V, 50 ~ 60 Hz

Power Consumption

NVR: <17.5W (Without HDD)

PoE: Max 25.5W for single port

150W total rated power, 80% control for protection

Fan

Smart fan, automatically adjust running speed

Environmental

Operating Conditions

-10°C ~ +55°C (+14°F ~ +131°F), 86 ~ 106kpa

Storage Conditions

-20°C ~ +70°C (-4°F ~ +158°F), 0 ~ 90% RH

Construction

Dimensions

2U, 440mm x 451.5mm x 95mm ;

(17.3" x 17.8" x 3.7")

Net Weight

7kg (15.4 lb) (without HDD)

Gross Weight

9.5kg (20.94 lb) (without HDD)

Installation

Rack-mounted

Certifications

CE

EN55032, EN55024, EN50130-4, EN60950-1

FCC

Part 15 Subpart B, ANSI C63.4-2014

UL

UL 60950-1

Order & Pricing Information for Surveillance Products

Please note the following important details when ordering surveillance products from ICCTVZONE:

  • Order confirmation: After you place an order, please check the confirmation email from our team. We will confirm stock, lead time and shipping before dispatch.
  • Stock & replacements: Inventory status is not real-time. If an item is out of stock, we may propose a compatible replacement model for your approval.
  • Final pricing: Prices shown are indicative. The final price is confirmed on the Proforma Invoice (PI) after order confirmation.
  • Project-specific pricing: Some products are configured for project requirements; pricing may vary with quantity and specification.
  • Minimum order: A minimum order value may apply to non-stock or project items; our team will confirm before processing.
  • Shipping costs: Shipping is calculated separately and added to the order total.
  • Duties & taxes: Import duties, taxes and customs clearance fees are not included in the product price or shipping quote. These charges are the customer's responsibility.
  • Genuine products: We supply genuine products from leading brands with current firmware.
  • Technical support: Our engineers provide pre-sales and after-sales technical support.
  • Warranty: Warranty terms depend on the product and order type; we will confirm the applicable coverage in writing.

Questions? Contact sales@icctvzone.com.
Why this model

Product Features

What this model is for, what it does well, and what to confirm before it goes on a project.

Best for

Large multi-camera sites that need a 64-channel 2U rack recorder with 16 PoE ports and RAID-capable storage.

Before you orderConfirm your camera count, PoE budget, and required HDD quantity and lead time with ICCTVZONE before ordering.
01
64-Channel Scalability

Grow from a small install to a full 64-camera system on one 2U recorder, so you avoid adding extra boxes as sites expand.

02
16 Built-In PoE Ports

Power and connect compatible IP cameras directly from the recorder, simplifying cabling and reducing extra switch hardware.

03
RAID Storage Protection

Supports RAID 0/1/5/10 configurations to help protect recorded footage against drive failure when set up correctly.
