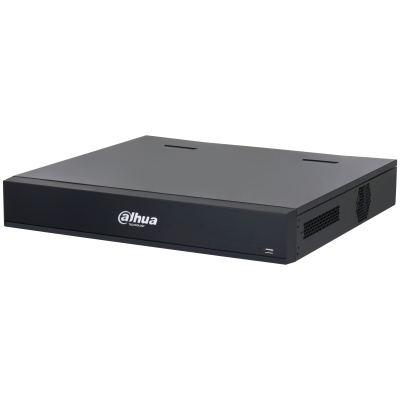

Dahua NVR5832-16P-XI/Pro 32CH 2U 16PoE 8HDD WizMind Network Video Recorder
Regular price
$3,258.00
Lead time & order confirmation
Most orders ship within 30 working days. Stock status shown on this page is not real-time.
After you place your order, please check the order confirmation email from our team. We will confirm stock, lead time and shipping before dispatch. If an item is out of stock, we may propose a compatible replacement model for your approval.
Working to a project deadline? Contact us before ordering.
Need help with this product?
Our team can confirm specifications, stock and pricing before you order.
Email sales@icctvzone.com or contact us.
Couldn't load pickup availability
Authentic productsGenuine brands, traceable supply
Worldwide shippingTracked delivery to 200+ countries
Technical supportPre-sales and after-sales help
Daniel LeventSenior Engineer SalesOnline now
Need help choosing the right model? I can confirm specifications, stock and lead time before you order.
Dahua NVR5832-16P-XI/Pro 32CH 2U 16PoE 8HDDs WizMind Network Video Recorder – 512Mbps Bandwidth, 8K HDMI Output, AI by Recorder, RAID, ePoE Support
High‑Capacity 2U PoE NVR – Powerful AI Processing & RAID Data Protection
- High‑Performance Recording: 32‑channel access, 512 Mbps incoming/recording and 384 Mbps outgoing bandwidth. Supports up to 32MP resolution cameras.
- Integrated 16‑Port PoE (ePoE Ready): 16 independent PoE ports (10/100 Mbps) with total output power of 150W. Ports 1‑8 support ePoE for long‑distance transmission (up to 800m). Each port max 25.5W (IEEE 802.3af/at).
- Massive Storage & RAID Protection: 8 SATA HDD bays, each supporting up to 20TB (total 160TB). Supports RAID 0/1/5/6/10 for data redundancy and performance. Plus 1 eSATA for expansion.
- 8K Ultra‑HD Video Output: HDMI 1 supports 7680×4320 resolution for stunning detail on large displays. Dual HDMI and dual VGA outputs with flexible mirroring/heterogeneous sources.
- AI by Recorder (Xinghan Large‑Scale Models): 8‑channel face detection + recognition (video stream), 16‑channel perimeter protection, 8‑channel video metadata (23 attributes), and 8‑channel AcuPick – all processed locally on the NVR.
- Full‑Channel AcuPick & WizSeek: With AcuPick‑enabled cameras, supports 32‑channel WizSeek. For standard cameras, enabling AI by NVR provides up to 8‑channel WizSeek. Modeling capacity of 432,000 targets per day.
- Rich I/O & Alarm Integration: 16 alarm inputs, 8 alarm outputs (1 with 12V 1A power output), 2‑ch audio output, dual RS‑485 (half/full duplex), RS‑232, 4 USB ports (2 front USB 2.0, 2 rear USB 3.0).
System & AI Performance
| Main Processor | Industrial-grade processor |
|---|---|
| Operating System | Embedded Linux |
| Operating Interface | Web, Local GUI |
| AI by Recorder (Local AI) | Face detection & recognition; video metadata (human/motor vehicle/non‑motor vehicle); perimeter protection; SMD; AcuPick; WizSeek; Text‑Defined Alarming |
| AI by Camera | Face detection/recognition; video metadata; perimeter protection; SMD; stereo analysis; crowd distribution; people counting; ANPR; heat map; PPE detection; AcuPick |
| AcuPick Performance (AI by Recorder) | Xinghan models enabled: 8 channels (1080p) Xinghan models disabled: 16 channels (1080p) |
| AcuPick Performance (AI by Camera) | All channels (36 targets/s) |
| WizSeek Performance | With AcuPick cameras: full‑channel WizSeek With normal cameras + AI by NVR: up to 8‑channel WizSeek Modeling capacity: 432,000 targets/day |
| Search Language | English; TradChinese; Korean |
| Performance (Xinghan enabled) | 16 channels, 10 IVS rules per channel |
|---|---|
| Performance (Xinghan disabled) | 32 channels, 10 IVS rules per channel |
| Performance (AI by Camera) | All channels (32 targets/s) |
Face Detection & Recognition
| Face Attributes | 6 attributes |
|---|---|
| Face Detection (AI by Recorder) | Xinghan enabled: 8 channels (12 face images/s per channel) Xinghan disabled: 16 channels (12 face images/s per channel) |
| Face Detection (AI by Camera) | All channels (32 targets/s) |
| Face Database Capacity | Up to 20 databases, 200,000 images (44GB total) |
| Face Recognition (AI by Recorder) | 32‑channel FD (by camera) + FR (by recorder): 32 face images/s Xinghan enabled: 8‑channel FD+FR (video stream): 16 face images/s Xinghan disabled: 16‑channel FD+FR (video stream): 16 face images/s |
| Face Recognition (AI by Camera) | All channels (32 targets/s) |
| Metadata Performance (AI by Recorder) | Xinghan enabled: 8 channels, 23 attributes Xinghan disabled: 16 channels, 23 attributes |
|---|---|
| Metadata Performance (AI by Camera) | All channels (32 targets/s) |
| People Attributes | 9 human body attributes |
| Motor Vehicle Attributes | 9 attributes |
| Non‑motor Vehicle Attributes | 4 attributes |
| SMD Plus by Recorder | Xinghan enabled: Not supported Xinghan disabled: 32 channels (secondary filtering for human/vehicle) |
SMD by Camera | All channels (64 targets/s) |
ANPR & License Plate Comparison
| ANPR by Camera | All channels (32 targets/s) |
|---|---|
| License Plate Database Capacity | Up to 20,000 plate numbers; blocklist and allowlist supported |
Audio & Video Specifications
| Access Channel | 32 channels |
|---|---|
| Network Bandwidth | AI disabled: 512 Mbps incoming, 512 Mbps recording, 384 Mbps outgoing AI enabled: 200 Mbps incoming/recording/outgoing |
| Resolution Support | 32MP / 24MP / 16MP / 12MP / 8MP / 6MP / 5MP / 4MP / 3MP / 1080p / 720p / 960p / D1 / CIF / QCIF |
| Decoding Capability (AI disabled) | 2‑ch 32MP@30fps; 3‑ch 24MP@30fps; 5‑ch 16MP@30fps; 6‑ch 12MP@30fps; 10‑ch 8MP@30fps; 13‑ch 6MP@30fps; 16‑ch 5MP@30fps; 20‑ch 4MP@30fps; 40‑ch 1080p@30fps; 64‑ch 720p@30fps |
| Decoding Capability (AI enabled) | 1‑ch 32MP@30fps; 1‑ch 24MP@30fps; 2‑ch 16MP@30fps; 4‑ch 12MP@30fps; 6‑ch 8MP@30fps; 8‑ch 6MP/5MP@30fps; 12‑ch 4MP@30fps; 24‑ch 1080p@30fps; 48‑ch 720p@30fps; 64‑ch D1@30fps |
| Video Output | 2 VGA, 2 HDMI VGA: 1920×1080, 1280×1024, 1280×720 HDMI: 7680×4320, 3840×2160, 1920×1080, 1280×1024, 1280×720 Heterogeneous source output for HDMI1/2; simultaneous source for VGA1+HDMI1, VGA2+HDMI2 |
| Multi‑screen Display | Main screen: 1/4/8/9/16/25/36/64 Sub screen: 1/4/8/9/16 |
| Third‑party Camera Access | ONVIF; Panasonic; Sony; Axis; Arecont; Pelco; Canon; Hanwha |
| Video Compression | Smart H.265+; H.265; Smart H.264+; H.264; MJPEG |
Recording, Playback & Storage
| Multi‑channel Playback | Up to 16 channels |
|---|---|
| Record Mode | General; motion detection; intelligent; alarm; POS |
| Backup Method | USB device; network |
| Playback Mode | Instant playback; general playback; event playback; tag playback; smart playback |
| Disk Group | Yes |
| RAID | RAID 0/1/5/6/10 |
| Disk Interface | 8 SATA ports, each up to 20TB (total 160TB, depending on environment temperature) |
| eSATA | 1 |

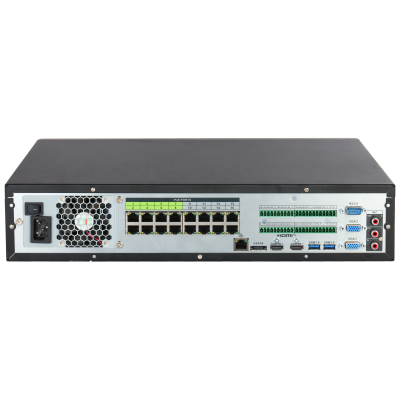

PoE & Network Interfaces
| PoE Ports | 16 ports (10/100 Mbps), IEEE 802.3 af/at, total output 150W, single port max 25.5W. Ports 1‑8 support ePoE (long distance up to 800m). |
|---|---|
| Network Port | 1 × 10/100/1000 Mbps Ethernet port (RJ‑45) |
| Network Protocol | HTTP; HTTPS; TCP/IP; IPv4; IPv6; UDP; NTP; DHCP; DNS; SMTP; UPnP; IP Filter; FTP; DDNS; SNMP; Alarm Server; P2P; Auto Registration; IP Search; iSCSI |
| Mobile Phone Access | iOS; Android |
| Interoperability | ONVIF 24.12 (Profile T/S/G); CGI; SDK |
| Browser | Chrome; Firefox; IE |
| General Alarm | Motion detection; local alarm; alarm box; camera external alarm; network alarm; scene changing; PIR alarm; thermal alarm |
|---|---|
| Anomaly Alarm | Disk errors (no disk, full, low space, RAID exception, low quota space; abnormal disk health); network disconnection/IP conflict/MAC conflict; fan speed abnormal; video loss/tampering; camera offline; audio detection | Intelligent Alarm | Face detection/recognition; video metadata; perimeter protection; license plate comparison |
| Alarm Linkage | Record; snapshot; local alarm output; IPC external alarm output; audio; buzzer; log; preset; email |
| Audio Input | 1‑channel RCA |
| Audio Output | 2‑channel RCA |
| Alarm Input | 16 channels |
| Alarm Output | 8 channels (1 with 12V 1A power output) |
| RS‑232 | 1 |
| RS‑485 | 2 (1 half‑duplex, 1 full‑duplex) |
| USB Ports | 4 (2 front USB 2.0, 2 rear USB 3.0) |
| Power Supply | 100–240 VAC, 50‑60 Hz |
|---|---|
| Power Consumption | <18 W (without HDD); PoE total output 150W |
| Operating Temperature | –10 °C to +55 °C (+14 °F to +131 °F) |
| Storage Temperature | –20 °C to +60 °C (–4 °F to +140 °F) |
| Operating Humidity | 10%–93% (RH), non‑condensing |
| Product Dimensions | 440.0 mm × 451.3 mm × 94.9 mm (17.32" × 17.77" × 3.74") (W×D×H) |
| Net Weight / Gross Weight | 6.80 kg (14.99 lb) / 9.32 kg (20.55 lb) |
Order & Pricing Information for Surveillance Products
Please note the following important details when ordering surveillance products from ICCTVZONE:
- Order confirmation: After you place an order, please check the confirmation email from our team. We will confirm stock, lead time and shipping before dispatch.
- Stock & replacements: Inventory status is not real-time. If an item is out of stock, we may propose a compatible replacement model for your approval.
- Final pricing: Prices shown are indicative. The final price is confirmed on the Proforma Invoice (PI) after order confirmation.
- Project-specific pricing: Some products are configured for project requirements; pricing may vary with quantity and specification.
- Minimum order: A minimum order value may apply to non-stock or project items; our team will confirm before processing.
- Shipping costs: Shipping is calculated separately and added to the order total.
- Duties & taxes: Import duties, taxes and customs clearance fees are not included in the product price or shipping quote. These charges are the customer's responsibility.
- Genuine products: We supply genuine products from leading brands with current firmware.
- Technical support: Our engineers provide pre-sales and after-sales technical support.
- Warranty: Warranty terms depend on the product and order type; we will confirm the applicable coverage in writing.
Questions? Contact sales@icctvzone.com.
Why this model
Product Features
What this model is for, what it does well, and what to confirm before it goes on a project.
Best for
Large-scale PoE surveillance deployments that need 32-channel recording, on-board AI analytics and RAID-protected storage in a single 2U chassis.
Before you orderConfirm your camera count, PoE power budget and how many HDDs you need, since drives are not included and must be specified separately.
01
On-Board AI Analytics
AI by Recorder handles face recognition, perimeter protection, video metadata and AcuPick locally, so you gain advanced search without adding separate AI servers.
02
RAID-Protected Storage
Eight SATA bays plus RAID 0/1/5/6/10 let you scale capacity while protecting recorded footage against drive failure.
03
16 PoE Ports with ePoE
Sixteen independent PoE ports deliver up to 150W total, with ports 1-8 supporting ePoE for long-distance camera runs up to 800m.
