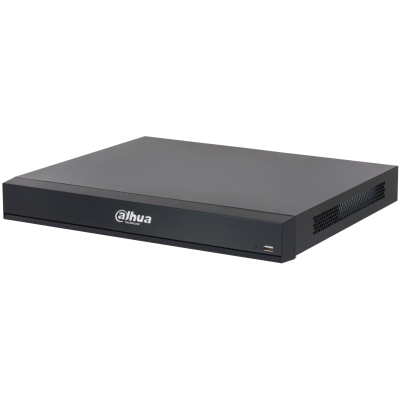

Dahua NVR5216-16HP-XI/Pro 16CH 1U 16PoE 2HDDs WizMind Network Video Recorder – 512Mbps Bandwidth, 8K HDMI Output, AI by Recorder, ePoE Support
High‑Density 16‑Port PoE NVR – Powerful AI Processing & Compact 1U Design
- High‑Performance Recording: 16‑channel access, 512 Mbps incoming/recording and 384 Mbps outgoing bandwidth. Supports up to 32MP resolution cameras.
- Integrated 16‑Port PoE (ePoE Ready): 16 independent PoE ports (10/100 Mbps) with total output power of 200W. Ports 1‑8 support ePoE for long‑distance transmission (up to 800m). Each port max 25.5W (IEEE 802.3af/at).
- Massive Storage Capacity: 2 SATA HDD bays, each supporting up to 20TB (total 40TB) – ideal for long‑term retention.
- 8K Ultra‑HD Video Output: HDMI supports 7680×4320 resolution for stunning detail on large displays. Heterogeneous video source output for HDMI and VGA.
- AI by Recorder (Xinghan Large‑Scale Models): Up to 16‑channel face detection, 16‑channel perimeter protection, 16‑channel video metadata (23 attributes), and 16‑channel AcuPick – all processed locally on the NVR (performance varies with Xinghan models enabled/disabled).
- Full‑Channel AcuPick & WizSeek: With AcuPick‑enabled cameras, supports full‑channel WizSeek. For standard cameras, enabling AI by NVR provides up to 8‑channel WizSeek. Modeling capacity of 432,000 targets per day.

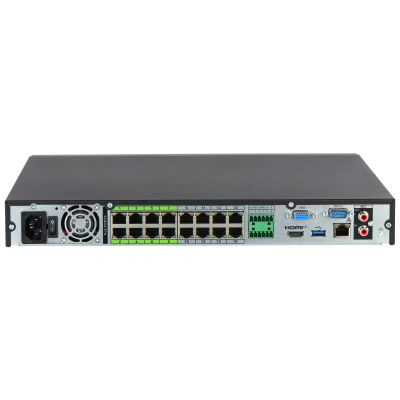

- Rich I/O & Alarm Integration: 4 alarm inputs, 2 alarm outputs, 1‑ch audio output, RS‑485, RS‑232, 2 USB ports (1 front USB 2.0, 1 rear USB 3.0).
System & AI Performance
| Main Processor | Industrial-grade processor |
|---|---|
| Operating System | Embedded Linux |
| Operating Interface | Web, Local GUI |
| AI by Recorder (Local AI) | Face detection & recognition; video metadata (human/motor vehicle/non‑motor vehicle); perimeter protection; SMD; AcuPick; WizSeek; Text‑Defined Alarming |
| AI by Camera | Face detection/recognition; video metadata; perimeter protection; SMD; stereo analysis; crowd distribution; people counting; ANPR; heat map; PPE detection; AcuPick |
| AcuPick Performance (AI by Recorder) | Xinghan enabled: 8 channels (1080p) Xinghan disabled: 16 channels (1080p) |
AcuPick Performance (AI by Camera) | All channels (36 targets/s) |
| WizSeek Performance | With AcuPick cameras: full‑channel WizSeek With normal cameras + AI by NVR: up to 8‑channel WizSeek Modeling capacity: 432,000 targets/day |
Search Language | English; TradChinese; Korean |
Perimeter Protection (AI by Recorder)
| Performance | 16 channels, 10 IVS rules per channel |
|---|---|
| Performance (AI by Camera) | All channels (32 targets/s) |
Face Detection & Recognition
| Face Attributes | 6 attributes |
|---|---|
| Face Detection (AI by Recorder) | Xinghan enabled: 8 channels (12 face images/s per channel) Xinghan disabled: 16 channels (12 face images/s per channel) |
| Face Detection (AI by Camera) | All channels (32 targets/s) |
| Face Database Capacity | Up to 20 databases, 200,000 images (44GB total) |
| Face Recognition (AI by Recorder) | 16‑channel FD (by camera) + FR (by recorder): 32 face images/s Xinghan enabled: 8‑channel FD+FR (video stream): 16 face images/s Xinghan disabled: 16‑channel FD+FR (video stream): 16 face images/s |
| Face Recognition (AI by Camera) | All channels (32 targets/s) |
Video Metadata & SMD
| Metadata Performance (AI by Recorder) | Xinghan enabled: 8 channels, 23 attributes Xinghan disabled: 16 channels, 23 attributes |
|---|---|
| Metadata Performance (AI by Camera) | All channels (32 targets/s) | People Attributes | 9 human body attributes |
| Motor Vehicle Attributes | 9 attributes |
| Non‑motor Vehicle Attributes | 4 attributes |
| SMD Plus by Recorder | Xinghan enabled: Not supported Xinghan disabled: 16 channels (secondary filtering for human/vehicle) |
| SMD by Camera | All channels (64 targets/s) |
| ANPR by Camera | All channels (32 targets/s) |
|---|---|
| License Plate Database Capacity | Up to 20,000 plate numbers; blocklist and allowlist supported |
| Access Channel | 16 channels |
|---|---|
| Network Bandwidth | AI disabled: 512 Mbps incoming, 512 Mbps recording, 384 Mbps outgoing AI enabled: 200 Mbps incoming/recording/outgoing |
| Resolution Support | 32MP / 24MP / 16MP / 12MP / 8MP / 6MP / 5MP / 4MP / 3MP / 1080p / 720p / 960p / D1 / CIF / QCIF |
| Decoding Capability (AI disabled) | 2‑ch 32MP@30fps; 3‑ch 24MP@30fps; 5‑ch 16MP@30fps; 6‑ch 12MP@30fps; 10‑ch 8MP@30fps; 13‑ch 6MP@30fps; 16‑ch 5MP@30fps | Decoding Capability (AI enabled) | 1‑ch 32MP@30fps; 1‑ch 24MP@30fps; 2‑ch 16MP@30fps; 4‑ch 12MP@30fps; 6‑ch 8MP@30fps; 8‑ch 6MP/5MP@30fps; 12‑ch 4MP@30fps; 16‑ch 1080p@30fps |
| Video Output | 1 VGA, 1 HDMI VGA: 1920×1080, 1280×1024, 1280×720 HDMI: 7680×4320, 3840×2160, 1920×1080, 1280×1024, 1280×720 Heterogeneous source output for HDMI and VGA |
| Multi‑screen Display | Main screen: 1/4/8/9/16 Sub screen: 1/4/8/9/16 |
| Third‑party Camera Access | ONVIF; Panasonic; Sony; Axis; Arecont; Pelco; Canon; Hanwha |
| Video Compression | Smart H.265+; H.265; Smart H.264+; H.264; MJPEG | Audio Compression | G.711a; G.711u; PCM; G726 |
| Multi‑channel Playback | Up to 16 channels |
|---|---|
| Record Mode | General; motion detection; intelligent; alarm; POS |
| Backup Method | USB device; network |
| Playback Mode | Instant playback; general playback; event playback; tag playback; smart playback |
| Disk Group | Yes |
| Disk Interface | 2 SATA ports, each up to 20TB (total 40TB, depending on environment temperature) |
PoE & Network Interfaces
| PoE Ports | 16 ports (10/100 Mbps), IEEE 802.3 af/at, total output 200W, single port max 25.5W. Ports 1‑8 support ePoE (long distance up to 800m). |
|---|---|
| Network Port | 1 × 10/100/1000 Mbps Ethernet port (RJ‑45) | Network Protocol | HTTP; HTTPS; TCP/IP; IPv4; IPv6; UDP; NTP; DHCP; DNS; SMTP; UPnP; IP Filter; FTP; DDNS; SNMP; Alarm Server; P2P; Auto Registration; IP Search; iSCSI |
| Mobile Phone Access | iOS; Android | Interoperability | ONVIF 24.12 (Profile T/S/G); CGI; SDK |
| Browser | Chrome; Firefox; IE |
| General Alarm | Motion detection; local alarm; alarm box; camera external alarm; network alarm; scene changing; PIR alarm; thermal alarm |
|---|---|
| Anomaly Alarm | Disk errors (no disk, full, low space, low quota space; abnormal disk health); network disconnection/IP conflict/MAC conflict; fan speed abnormal; video loss/tampering; camera offline; audio detection |
| Intelligent Alarm | Face detection/recognition; video metadata; perimeter protection; license plate comparison |
| Alarm Linkage | Record; snapshot; local alarm output; IPC external alarm output; audio; buzzer; log; preset; email | Audio Input | 1‑channel RCA |
| Audio Output | 1‑channel RCA | Alarm Input | 4 channels |
| Alarm Output | 2 channels |
| RS‑232 | 1 |
Power, Environment & Physical
| Power Supply | 100–240 VAC, 50/60 Hz |
|---|---|
| Power Consumption | <15 W (without HDD); PoE total output 200W |
| Operating Temperature | –10 °C to +55 °C (+14 °F to +131 °F) |
| Storage Temperature | –20 °C to +60 °C (–4 °F to +140 °F) |
| Operating Humidity | 10%–93% (RH), non‑condensing |
| Product Dimensions | 375.0 mm × 327.4 mm × 53.0 mm (14.76" × 12.89" × 2.09") (W×D×H) |
| Net Weight / Gross Weight | 2.72 kg (6.00 lb) / 4.06 kg (8.95 lb) |
Order & Pricing Information for Surveillance Products
Please note the following important details when ordering surveillance products from ICCTVZONE:
- Order confirmation: After you place an order, please check the confirmation email from our team. We will confirm stock, lead time and shipping before dispatch.
- Stock & replacements: Inventory status is not real-time. If an item is out of stock, we may propose a compatible replacement model for your approval.
- Final pricing: Prices shown are indicative. The final price is confirmed on the Proforma Invoice (PI) after order confirmation.
- Project-specific pricing: Some products are configured for project requirements; pricing may vary with quantity and specification.
- Minimum order: A minimum order value may apply to non-stock or project items; our team will confirm before processing.
- Shipping costs: Shipping is calculated separately and added to the order total.
- Duties & taxes: Import duties, taxes and customs clearance fees are not included in the product price or shipping quote. These charges are the customer's responsibility.
- Genuine products: We supply genuine products from leading brands with current firmware.
- Technical support: Our engineers provide pre-sales and after-sales technical support.
- Warranty: Warranty terms depend on the product and order type; we will confirm the applicable coverage in writing.
Questions? Contact sales@icctvzone.com.
Why this model
Product Features
What this model is for, what it does well, and what to confirm before it goes on a project.
Best for
Medium to large PoE surveillance deployments that need on-board AI analytics, long-distance ePoE runs and high-capacity local storage in a compact 1U chassis.
Before you orderConfirm your camera models and PoE power draw fit the 16 ports and 200W budget, and check current lead time and HDD bundle options before ordering.
01
16 PoE Ports Built In
Power up to 16 cameras directly from the recorder with 200W total PoE budget, so you skip separate injectors and simplify cabling.
02
AI Processed On Board
Run face detection, perimeter protection, video metadata and AcuPick locally on the NVR across up to 16 channels, reducing the load on individual cameras.
03
8K HDMI and 40TB Storage
Two SATA bays support up to 20TB each for long retention, while the 8K HDMI output keeps detail sharp on large control-room displays.
