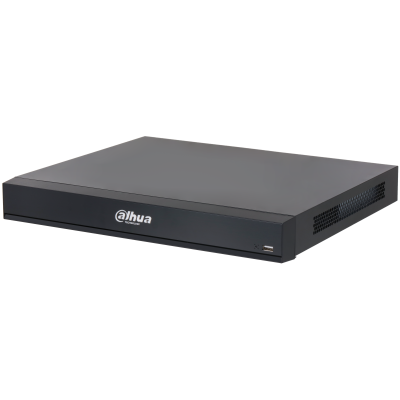

Dahua NVR5208-8P-XI/Pro 8CH 1U 8PoE 2HDD WizMind Network Video Recorder
Regular price
$1,160.00
Lead time & order confirmation
Most orders ship within 30 working days. Stock status shown on this page is not real-time.
After you place your order, please check the order confirmation email from our team. We will confirm stock, lead time and shipping before dispatch. If an item is out of stock, we may propose a compatible replacement model for your approval.
Working to a project deadline? Contact us before ordering.
Need help with this product?
Our team can confirm specifications, stock and pricing before you order.
Email sales@icctvzone.com or contact us.
Couldn't load pickup availability
Authentic productsGenuine brands, traceable supply
Worldwide shippingTracked delivery to 200+ countries
Technical supportPre-sales and after-sales help
Daniel LeventSenior Engineer SalesOnline now
Need help choosing the right model? I can confirm specifications, stock and lead time before you order.
Dahua NVR5208-8P-XI/Pro 8CH 1U 8PoE 2HDDs WizMind Network Video Recorder – 512Mbps Bandwidth, 8K HDMI Output, AI by Recorder, ePoE Support
Compact 1U PoE NVR – Powerful AI Processing & Built‑in 8‑Port PoE Switch
- High‑Performance Recording: 8‑channel access, 512 Mbps incoming/recording and 384 Mbps outgoing bandwidth. Supports up to 32MP resolution cameras.
- Integrated 8‑Port PoE (All ePoE): 8 independent PoE ports (10/100 Mbps) with total output power of 130W. All ports support ePoE for long‑distance transmission (up to 800m). Each port max 25.5W (IEEE 802.3af/at).
- Massive Storage Capacity: 2 SATA HDD bays, each supporting up to 20TB (total 40TB) – ideal for long‑term retention.
- 8K Ultra‑HD Video Output: HDMI supports 7680×4320 resolution for stunning detail on large displays. Heterogeneous video source output for HDMI and VGA.
- AI by Recorder (Xinghan Large‑Scale Models): 8‑channel face detection + recognition, 8‑channel perimeter protection, 8‑channel video metadata (23 attributes), and 8‑channel AcuPick – all processed locally on the NVR.
- Full‑Channel AcuPick & WizSeek: With AcuPick‑enabled cameras, supports full‑channel WizSeek. For standard cameras, enabling AI by NVR provides up to 8‑channel WizSeek. Modeling capacity of 432,000 targets per day.

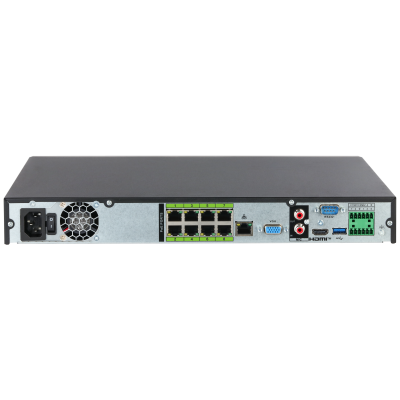

- Rich I/O & Alarm Integration: 4 alarm inputs, 2 alarm outputs, 1‑ch audio output, RS‑485, RS‑232, 2 USB ports (1 front USB 2.0, 1 rear USB 3.0).
System & AI Performance
| Main Processor | Industrial-grade processor |
|---|---|
| Operating System | Embedded Linux |
| Operating Interface | Web, Local GUI |
| AI by Recorder (Local AI) | Face detection & recognition; video metadata (human/motor vehicle/non‑motor vehicle); perimeter protection; SMD; AcuPick; WizSeek; Text‑Defined Alarming |
| AI by Camera | Face detection/recognition; video metadata; perimeter protection; SMD; stereo analysis; crowd distribution; people counting; ANPR; heat map; PPE detection; AcuPick |
| AcuPick Performance (AI by Recorder) | 8 channels (1080p) |
| AcuPick Performance (AI by Camera) | All channels (36 targets/s) |
| WizSeek Performance | With AcuPick cameras: full‑channel WizSeek With normal cameras + AI by NVR: up to 8‑channel WizSeek Modeling capacity: 432,000 targets/day |
| Search Language | English; TradChinese; Korean |
Perimeter Protection (AI by Recorder)
| Performance | 8 channels, 10 IVS rules per channel |
|---|---|
| Performance (AI by Camera) | All channels (32 targets/s) |
Face Detection & Recognition
| Face Attributes | 6 attributes |
|---|---|
| Face Detection (AI by Recorder) | 8 channels (12 face images/s per channel) |
| Face Detection (AI by Camera) | All channels (32 targets/s) |
| Face Database Capacity | Up to 20 databases, 200,000 images (44GB total) |
| Face Recognition (AI by Recorder) | 8‑channel FD (by camera) + FR (by recorder): 32 face images/s 8‑channel FD (by recorder) + FR (by recorder): 16 face images/s |
| Face Recognition (AI by Camera) | All channels (32 targets/s) |
Video Metadata & SMD
| Metadata Performance (AI by Recorder) | 8 channels, 23 attributes extraction |
|---|---|
| Metadata Performance (AI by Camera) | All channels (32 targets/s) |
| People Attributes | 9 human body attributes |
| Motor Vehicle Attributes | 9 attributes |
| Non‑motor Vehicle Attributes | 4 attributes |
| SMD Plus by Recorder | 8 channels (secondary filtering for human/vehicle) |
| SMD by Camera | All channels (64 targets/s) |
ANPR & License Plate Comparison
| ANPR by Camera | All channels (32 targets/s) |
|---|---|
| License Plate Database Capacity | Up to 20,000 plate numbers; blocklist and allowlist supported |
Audio & Video Specifications
| Access Channel | 8 channels |
|---|---|
| Network Bandwidth | AI disabled: 512 Mbps incoming, 512 Mbps recording, 384 Mbps outgoing AI enabled: 200 Mbps incoming/recording/outgoing |
| Resolution Support | 32MP / 24MP / 16MP / 12MP / 8MP / 6MP / 5MP / 4MP / 3MP / 1080p / 720p / 960p / D1 / CIF / QCIF |
| Decoding Capability (AI disabled) | 2‑ch 32MP@30fps; 3‑ch 24MP@30fps; 5‑ch 16MP@30fps; 6‑ch 12MP@30fps; 8‑ch 8MP@30fps |
| Decoding Capability (AI enabled) | 1‑ch 32MP@25fps; 1‑ch 24MP@25fps; 2‑ch 16MP@30fps; 4‑ch 12MP@30fps; 6‑ch 8MP@30fps; 8‑ch 6MP@30fps |
| Video Output | 1 VGA, 1 HDMI VGA: 1920×1080, 1280×1024, 1280×720 HDMI: 7680×4320, 3840×2160, 1920×1080, 1280×1024, 1280×720 Heterogeneous source output for HDMI and VGA |
| Multi‑screen Display | Main screen: 1/4/8/9 Sub screen: 1/4/8/9 |
Third‑party Camera Access | ONVIF; Panasonic; Sony; Axis; Arecont; Pelco; Canon; Hanwha |
| Video Compression | Smart H.265+; H.265; Smart H.264+; H.264; MJPEG | Audio Compression | G.711a; G.711u; PCM; G726 |
Recording, Playback & Storage
| Multi‑channel Playback | Up to 8 channels |
|---|---|
| Record Mode | General; motion detection; intelligent; alarm; POS |
| Backup Method | USB device; network |
| Playback Mode | Instant playback; general playback; event playback; tag playback; smart playback |
| Disk Group | Yes |
| Disk Interface | 2 SATA ports, each up to 20TB (total 40TB, depending on environment temperature) |
PoE & Network Interfaces
| PoE Ports | 8 ports (10/100 Mbps), IEEE 802.3 af/at, total output 130W, single port max 25.5W. All ports support ePoE (long distance up to 800m). | Network Port | 1 × 10/100/1000 Mbps Ethernet port (RJ‑45) | ||||||||||||||||||||||||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Network Protocol | HTTP; HTTPS; TCP/IP; IPv4; IPv6; UDP; NTP; DHCP; DNS; SMTP; UPnP; IP Filter; FTP; DDNS; SNMP; Alarm Server; P2P; Auto Registration; IP Search; iSCSI | ||||||||||||||||||||||||||||||||||||||
| Mobile Phone Access | iOS; Android | ||||||||||||||||||||||||||||||||||||||
| Interoperability | ONVIF 24.12 (Profile T/S/G); CGI; SDK | ||||||||||||||||||||||||||||||||||||||
| Browser | Chrome; Firefox; IE |
| General Alarm | Motion detection; local alarm; alarm box; camera external alarm; network alarm; scene changing; PIR alarm; thermal alarm |
|---|---|
| Anomaly Alarm | Disk errors (no disk, full, low space, low quota space; abnormal disk health); network disconnection/IP conflict/MAC conflict; fan speed abnormal; video loss/tampering; camera offline; audio detection |
| Intelligent Alarm | Face detection/recognition; video metadata; perimeter protection; license plate comparison |
| Alarm Linkage | Record; snapshot; local alarm output; IPC external alarm output; audio; buzzer; log; preset; email | Audio Input | 1‑channel RCA |
| Audio Output | 1‑channel RCA | Alarm Input | 4 channels |
| Alarm Output | 2 channels |
| RS‑232 | 1 |
| RS‑485 | 1 |
| USB Ports | 2 (1 front USB 2.0, 1 rear USB 3.0) |
| Power Supply | 100–240 VAC, 47‑63 Hz |
|---|---|
| Power Consumption | <15 W (without HDD); PoE total output 130W |
| Operating Temperature | –10 °C to +55 °C (+14 °F to +131 °F) | Storage Temperature | –20 °C to +60 °C (–4 °F to +140 °F) |
| Operating Humidity | 10%–93% (RH), non‑condensing |
| Product Dimensions | 375.0 mm × 327.4 mm × 53.0 mm (14.76" × 12.89" × 2.09") (W×D×H) |
| Net Weight / Gross Weight | 2.59 kg (5.71 lb) / 3.94 kg (8.69 lb) |
Order & Pricing Information for Surveillance Products
Please note the following important details when ordering surveillance products from ICCTVZONE:
- Order confirmation: After you place an order, please check the confirmation email from our team. We will confirm stock, lead time and shipping before dispatch.
- Stock & replacements: Inventory status is not real-time. If an item is out of stock, we may propose a compatible replacement model for your approval.
- Final pricing: Prices shown are indicative. The final price is confirmed on the Proforma Invoice (PI) after order confirmation.
- Project-specific pricing: Some products are configured for project requirements; pricing may vary with quantity and specification.
- Minimum order: A minimum order value may apply to non-stock or project items; our team will confirm before processing.
- Shipping costs: Shipping is calculated separately and added to the order total.
- Duties & taxes: Import duties, taxes and customs clearance fees are not included in the product price or shipping quote. These charges are the customer's responsibility.
- Genuine products: We supply genuine products from leading brands with current firmware.
- Technical support: Our engineers provide pre-sales and after-sales technical support.
- Warranty: Warranty terms depend on the product and order type; we will confirm the applicable coverage in writing.
Questions? Contact sales@icctvzone.com.
Why this model
Product Features
What this model is for, what it does well, and what to confirm before it goes on a project.
Best for
Small to medium PoE surveillance deployments that need on-board AI analytics, long-distance ePoE runs and high-capacity local storage in a single 1U recorder.
Before you orderConfirm your camera count, total PoE wattage against the 130W budget, and whether your cameras are AcuPick-enabled for full-channel WizSeek before ordering.
01
On-Board AI Analytics
AI by Recorder handles face recognition, perimeter protection, video metadata and AcuPick locally, so you gain searchable intelligence without adding separate AI servers.
02
Eight ePoE Ports
Eight independent PoE ports deliver up to 130W total with ePoE long-distance transmission, simplifying camera cabling and extending reach across larger sites.
03
8K HDMI and 40TB Storage
An 8K HDMI output plus two SATA bays supporting up to 20TB each give you detailed display and long retention for extended recording schedules.
