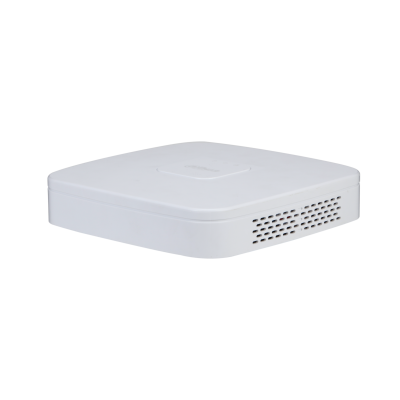

Dahua NVR4108-P-4KS3 8CH 4PoE 1U 1HDD Lite Network Video Recorder
Most orders ship within 30 working days. Stock status shown on this page is not real-time.
After you place your order, please check the order confirmation email from our team. We will confirm stock, lead time and shipping before dispatch. If an item is out of stock, we may propose a compatible replacement model for your approval.
Working to a project deadline? Contact us before ordering.
Our team can confirm specifications, stock and pricing before you order.
Email sales@icctvzone.com or contact us.
Couldn't load pickup availability
Need help choosing the right model? I can confirm specifications, stock and lead time before you order.
NVR4108-P-4KS3 8CH Smart 1U 4PoE 1HDD Lite Network Video Recorder
Max. 80/80/60 Mbps Incoming/Recording/Outgoing Bandwidth
Max. Decoding Capability: 8 × 1080p@30 fps
IP Cameras Resolution Up to 12MP
1 Bay. Each HDD Storage Capacity Up to 20TB
AI by Recorder: 4-ch SMD
Product Data
System
| Main Processor | Industrial-grade processor |
|---|---|
| Operating System | Embedded Linux |
| Operating Interface | Web, Local GUI |
AI
| AI by Recorder | SMD |
|---|---|
| AI by Camera | Face detection; face recognition; perimeter protection; SMD; people counting; stereo analysis; heat map |
Perimeter Protection
| Perimeter Performance of AI by Camera (Number of Channels) | 6 channels |
|---|
Face Detection
| Face Attributes | Gender; age group; glasses; expressions; face mask; beard |
|---|---|
| Face Detection Performance of AI by Camera (Number of Channels) | All channels (6 targets/s) |
Face Recognition
| Face Recognition Performance of AI by Camera (Number of Channels) | All channels (6 targets/s) |
|---|
SMD Plus
| SMD Plus by Recorder | 4 channels: Secondary filtering for human and motor vehicle, reducing false alarms caused by leaves, rain and lighting condition change |
|---|---|
| SMD by Camera | All channels (12 targets/s) |
Audio and Video
| Access Channel | 8 channels |
|---|---|
| Network Bandwidth | 80 Mbps incoming, 80 Mbps recording and 60 Mbps outgoing |
| Resolution | 12 MP;8 MP;6 MP;5 MP;4 MP;3 MP;1080p;720p;960p;D1;CIF;QCIF |
| Decoding Capability | AI disabled: 1-channel 12 MP@30 fps; 2-channel 8 MP@30 fps; 2-channel 6 MP@30 fps; 3-channel 5 MP@30 fps; 4-channel 4 MP@30 fps; 8-channel 1080p@30 fps AI enabled: 1-channel 12 MP@30 fps; 1-channel 8 MP@30 fps; 2-channel 6 MP@30 fps; 2-channel 5 MP@30 fps; 3-channel 4 MP@30 fps; 7-channel 1080p@30 fps |
| Video Output | 1 HDMI, 1 VGA Simultaneous： HDMI: 3840 × 2160, 1920 × 1080, 1280 × 1024, 1280 × 720 VGA: 1920 × 1080, 1280 × 1024, 1280 × 720 Heterogeneous： HDMI: 1920 × 1080, 1280 × 1024, 1280 × 720 VGA: 1920 × 1080, 1280 × 1024, 1280 × 720 |
| Multi-screen Display | Main Screen: 1/4/8/9 Sub Screen: 1/4/8/9 |
| Third-party Camera Access | ONVIF; Panasonic; Sony; Axis; Arecont; Pelco; Canon; Hanwha |
Compression Standard
| Video Compression | Smart H.265+; H.265; Smart H.264+; H.264 |
|---|---|
| Audio Compression | G.711a; G.711u; PCM; G726 |
Network
| Network Protocol | HTTP; HTTPS; TCP/IP; IPv4; IPv6; RTSP; UDP; NTP; DHCP; DNS; SMTP; UPnP; IP Filter; FTP; DDNS; SNMP; Alarm Server; P2P; Auto Registration; IP Search (Supports IP camera, DVR, NVS, etc.) |
|---|---|
| Mobile Phone Access | iOS; Android |
| Interoperability | ONVIF 24.12 (Profile T; Profile S; Profile G); CGI; SDK |
| Browser | Chrome; IE; Safari; Edge; Firefox |
Recording Playback
| Multi-channel Playback | Up to 8 channels |
|---|---|
| Record Mode | General, motion detection; intelligent; alarm |
| Backup Method | USB device and network |
| Playback Mode | Instant playback, general playback, event playback, tag playback, smart playback |
Alarm
| General Alarm | Motion detection; privacy masking; video loss; scene changing; PIR alarm; IPC external alarm |
|---|---|
| Anomaly Alarm | Error (no disk; disk error; low space; low quota space; network disconnection; IP conflict; MAC conflict); video loss; video tampering; camera offline; audio detection |
| Intelligent Alarm | Face detection; face recognition; perimeter protection; SMD Plus; people counting; stereo analysis; heat map |
| Alarm Linkage | Record; snapshot; IPC external alarm output; audio; buzzer; log; preset; email |
Port
| Audio Input | 1-channel RCA |
|---|---|
| Audio Output | 1-channel RCA |
| Alarm Input | NA (2 channels is optional) |
| Alarm Output | NA (1-channel 12 V 1 A output is optional) |
| Disk Interface | 1 SATA port. Each disk can contain up to 20 TB. This limit varies depending on the environment temperature. |
| USB | 2 (2 rear USB 2.0 ports) |
| HDMI | 1 |
| VGA | 1 |
| Network Port | 1 (10/100 Mbps Ethernet port, RJ-45) |
| PoE Port | 4 ports, 10/100 Mbps, IEEE 802.3 af/at |
General
| Power Supply | 53 VDC, 1.22 A |
|---|---|
| Power Consumption | Total output of NVR is <10 W (without HDD) Total output power of PoE is 36 W, the maximum output power of a single port is 25.5 W |
| Net Weight | 0.50 kg (1.10 lb) |
| Gross Weight | 1.38 kg (3.04 lb) |
| Product Dimensions | 204.6 mm × 206.4 mm × 45.6 mm (8.06" × 8.12" × 1.80") (W × D × H) |
| Packaging Dimensions | 364 mm × 96 mm × 261 mm (14.33" × 3.78" × 10.26") (W × D × H) |
| Operating Temperature | –10 °C to +55 °C (+14 °F to +131 °F) |
| Storage Temperature | –20 °C to +60 °C (–4 °F to +140 °F) |
| Operating Humidity | 10%–93% (RH), non-condensing |
| Certifications | CE-EMC: EN 55032:2015+A1:2020; EN IEC 61000-3-2:2019+A1:2021; EN 61000-3-3:2013+A1:2019+A2:2021; EN 55035:2017+A11:2020; EN 50130-4:2011+A1:2014 CE-LVD: EN 62368-1:2014 |
Order & Pricing Information for Surveillance Products
Please note the following important details when ordering surveillance products from ICCTVZONE:
- Order confirmation: After you place an order, please check the confirmation email from our team. We will confirm stock, lead time and shipping before dispatch.
- Stock & replacements: Inventory status is not real-time. If an item is out of stock, we may propose a compatible replacement model for your approval.
- Final pricing: Prices shown are indicative. The final price is confirmed on the Proforma Invoice (PI) after order confirmation.
- Project-specific pricing: Some products are configured for project requirements; pricing may vary with quantity and specification.
- Minimum order: A minimum order value may apply to non-stock or project items; our team will confirm before processing.
- Shipping costs: Shipping is calculated separately and added to the order total.
- Duties & taxes: Import duties, taxes and customs clearance fees are not included in the product price or shipping quote. These charges are the customer's responsibility.
- Genuine products: We supply genuine products from leading brands with current firmware.
- Technical support: Our engineers provide pre-sales and after-sales technical support.
- Warranty: Warranty terms depend on the product and order type; we will confirm the applicable coverage in writing.
Questions? Contact sales@icctvzone.com.
Product Features
What this model is for, what it does well, and what to confirm before it goes on a project.
Small retail shops, offices or home sites needing an 8-channel 4PoE Lite NVR with one HDD bay and AI-by-recorder SMD filtering.
Connect up to eight IP cameras and power four PoE devices directly, simplifying cabling for compact installations.
Record and decode IP camera streams up to 12MP so you can capture finer detail across monitored areas.
On-recorder SMD secondary filtering for human and motor vehicle targets helps cut false alarms from leaves, rain and lighting changes.
