Home » Dahua NVR4104-P-4KS2 4-Channel 4PoE 4K H.265 1U Lite Network Video Recorder
icctvzone

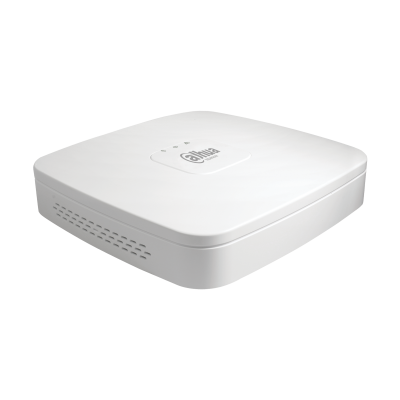

Dahua NVR4104-P-4KS2 4-Channel 4PoE 4K H.265 1U Lite Network Video Recorder

In stock
SKU: NVR4104-P-4KS2
$170.00
Lead time & order confirmation

Most orders ship within 30 working days. Stock status shown on this page is not real-time.

After you place your order, please check the order confirmation email from our team. We will confirm stock, lead time and shipping before dispatch. If an item is out of stock, we may propose a compatible replacement model for your approval.

Working to a project deadline? Contact us before ordering.

Need help with this product?

Our team can confirm specifications, stock and pricing before you order.

Email sales@icctvzone.com or contact us.
Authentic productsGenuine brands, traceable supply
Worldwide shippingTracked delivery to 200+ countries
Technical supportPre-sales and after-sales help
Daniel Levent
Daniel LeventSenior Engineer SalesOnline now

Need help choosing the right model? I can confirm specifications, stock and lead time before you order.

Email meContact us

NVR4104-P-4KS2

4 Channel Smart 1U 4PoE 4K&H.265 Lite Network Video Recorder

> 4/8-channel IP video access
> Smart H.265+/Smart H.264+/H.265/H.264; H.265 auto switch

> Max 80 Mbps incoming bandwidth
> Up to 8MP Resolution for Preview and Playback
> 8-channel decoding@1080p (30 fps)
> AI by Camera: Perimeter protection; SMD Plus; people counting; heat map
> Support IPC UPnP, 4PoE ports


Product Data


System

Main Processor

Industrial embedded micro-processor

Operating System

Embedded Linux

Operation Interface

Web; local GUI

Perimeter Protection by Camera

Performance

4/8 channels

AI Search

Search for pictures by channel, time and event type

SMD Plus by Camera

Performance

4/8 channels

AI Search

Search by target classification (human, vehicle)

Video

Access Channel

4/8

Network Bandwidth

80 Mbps for access, 80 Mbps for storage and 48 Mbps for forwarding

Resolution

8MP, 6MP, 5MP, 4MP, 3MP, 1080p, 1.3MP, 720p, D1, and more

Decoding Capability

8 channels@1080p (30 fps)

Video Output

HDMI: 3840 × 2160; 1920 × 1080; 1280 × 1024; 1280 × 720
VGA: 1920 × 1080; 1280 × 1024; 1280 × 720

Multi-screen Display

4-channel: 1/4
8-channel: 1/4/8/9

Third Party Camera Access

Panasonic, Sony, Samsung, Axis, Pelco, Arecont, ONVIF, Canon and more

Compression

Video

Smart H.265+; Smart H.264+; H.265; H.264

Audio

PCM; G.711A; G.711U; G.726

Network

Network Protocol

HTTP; HTTPS; TCP/IP; IPv4/IPv6; UPnP; SNMP; RTSP; UDP; SMTP; NTP; DHCP; DNS; IP Filter; DDNS; FTP; Alarm Server; IP Search (supports Dahua IP camera, DVR, NVS, and more); P2P

Mobile Phone Access

Android; iOS

Interoperability

ONVIF (profile T/S/G); CGI; SDK

Browser

Chrome; IE9 or later; Firefox

Record Playback

Multi-channel Playback

4-channel: 1/4
8-channel: 1/4/9

Record Mode

Manual; schedule (general; MD; alarm; MD & alarm; intelligent)

Storage Method

Local HDD and network

Backup

USB device

Playback Function

1. Play; pause; stop; fast forward; fast backward; rewind; play by frame
2. Full screen; backup (cut/file) ; partially enlarge; audio on/off

Storage

Disk Group

Yes

Alarm

General Alarm

Motion detection; privacy masking; video loss; PIR alarm; IPC alarm

Anomaly Alarm

Camera offline; storage error; full storage; IP conflict; MAC conflict; login lock; network security anomaly

Intelligent Alarm

Perimeter protection; SMD; people counting; heat map

Alarm Linkage

Record; snapshot; IPC external alarm output; buzzer; log; preset; email

External Port

Audio Input

1 channel, RCA connector

Audio Output

1 channel, RCA connector, which support voice intercom output

HDD

1 SATA III port, up to 10 TB for a single HDD. The maximum HDD capacity varies with environment temperature

USB

2 rear USB 2.0 ports

HDMI

1

VGA

1

Network

1 independent 100 Mbps ethernet port

PoE

4 ports (IEEE802.3at/af)

General Parameter

Power Supply

48V/1.5A DC

Power Consumption

NVR: < 7.5W (without HDD)
PoE: Max 25.5W for single port, 48W in total

Net Weight

0.45 kg (0.99 lb) (without HDD)

Gross Weight

1.5 kg (3.31 lb) (without HDD)

Product Dimensions

204.6 mm × 206.4 mm × 45.6 mm (8.1" × 8.1" × 1.8")

Package Dimensions

361 mm × 259 mm × 94 mm (14.2" × 10.2" × 3.7")

Operating Temperature

-10°C to +55°C (+14°F to +131°F)

Storage Temperature

0°C to +40°C (+32°F to +104°F)

Operating Humidity

10%–93% (RH)

Storage Humidity

30%–85% (RH)

Operating Altitude

3,000 m (9,843 ft)

Certifications

CE: EN55032; EN55024; EN50130-4; EN60950-1
FCC: Part 15 Subpart B; ANSI C63.4-2014
UL: UL 60950-1

Order & Pricing Information for Surveillance Products

Please note the following important details when ordering surveillance products from ICCTVZONE:

  • Order confirmation: After you place an order, please check the confirmation email from our team. We will confirm stock, lead time and shipping before dispatch.
  • Stock & replacements: Inventory status is not real-time. If an item is out of stock, we may propose a compatible replacement model for your approval.
  • Final pricing: Prices shown are indicative. The final price is confirmed on the Proforma Invoice (PI) after order confirmation.
  • Project-specific pricing: Some products are configured for project requirements; pricing may vary with quantity and specification.
  • Minimum order: A minimum order value may apply to non-stock or project items; our team will confirm before processing.
  • Shipping costs: Shipping is calculated separately and added to the order total.
  • Duties & taxes: Import duties, taxes and customs clearance fees are not included in the product price or shipping quote. These charges are the customer's responsibility.
  • Genuine products: We supply genuine products from leading brands with current firmware.
  • Technical support: Our engineers provide pre-sales and after-sales technical support.
  • Warranty: Warranty terms depend on the product and order type; we will confirm the applicable coverage in writing.

Questions? Contact sales@icctvzone.com.
Why this model

Product Features

What this model is for, what it does well, and what to confirm before it goes on a project.

Best for

Small retail shops, offices, or home sites that need a compact 4-channel PoE recorder with 4K preview and playback.

Before you orderConfirm your camera count fits the 4-channel limit, that your IP cameras are ONVIF or Dahua-compatible, and check current lead time and stock before ordering.
01
Four PoE Ports

Power and connect up to four PoE IP cameras directly, simplifying cabling for compact installations.

02
4K Preview and Playback

Supports up to 8MP resolution for preview and playback so you can review sharper detail from compatible cameras.

03
Smart Codec Support

Smart H.265+ and Smart H.264+ compression help reduce bandwidth and storage load on your network.
