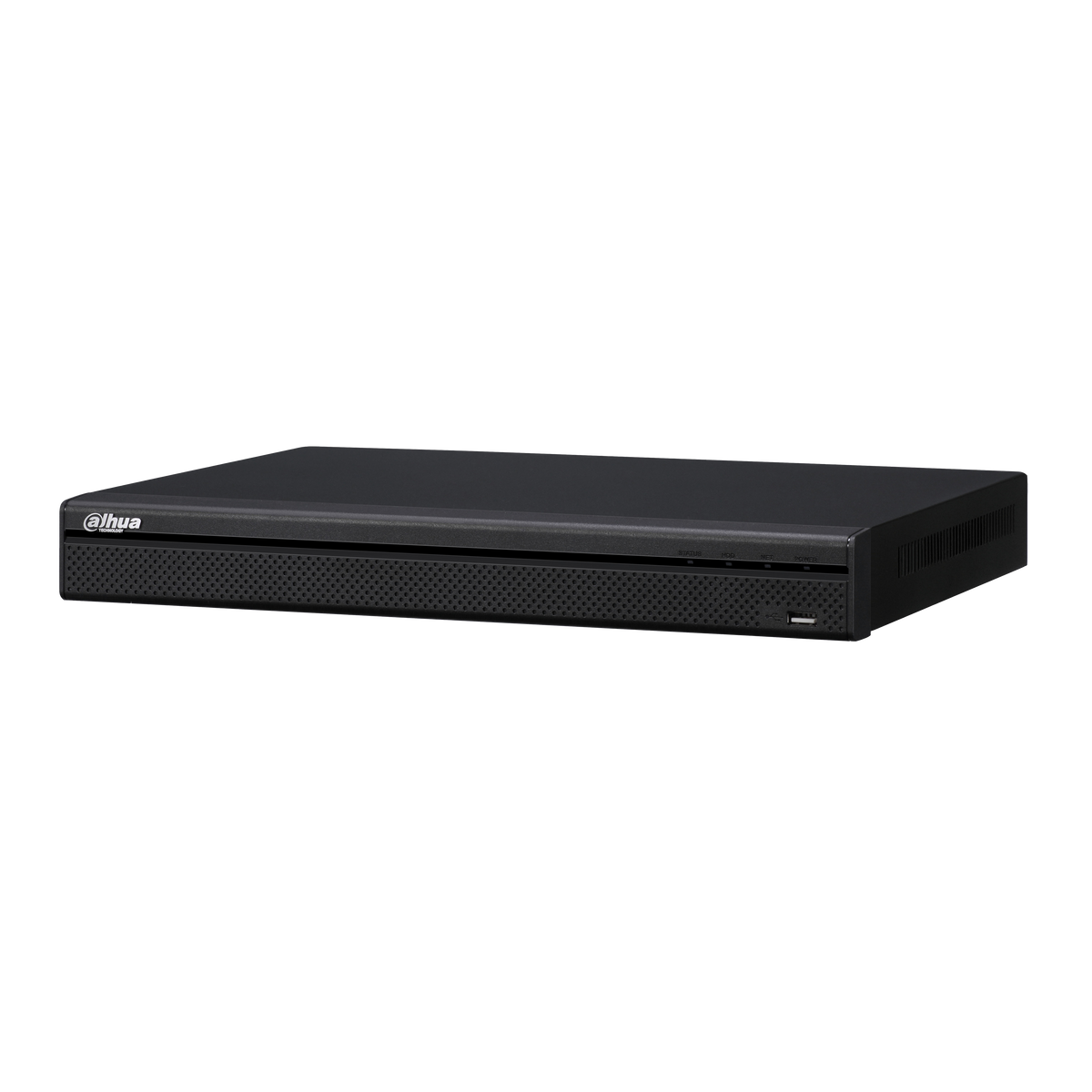

DAHUA NVR2204/2208-4KS2 4/8 Channel 1U 2HDDs Lite 4K H.265 Network Video Recorder
DAHUA NVR2204/2208-4KS2 4/8 Channel 1U 2HDDs Lite 4K H.265 Network Video Recorder
icctvzone

Dahua NVR2204-4KS2 4 Channel 1U 2HDD Lite 4K H.265 Network Video Recorder

In stock
SKU: NVR2204-4KS2
$202.00
Lead time & order confirmation

Most orders ship within 30 working days. Stock status shown on this page is not real-time.

After you place your order, please check the order confirmation email from our team. We will confirm stock, lead time and shipping before dispatch. If an item is out of stock, we may propose a compatible replacement model for your approval.

Working to a project deadline? Contact us before ordering.

Need help with this product?

Our team can confirm specifications, stock and pricing before you order.

Email sales@icctvzone.com or contact us.
Authentic productsGenuine brands, traceable supply
Worldwide shippingTracked delivery to 200+ countries
Technical supportPre-sales and after-sales help
Daniel Levent
Daniel LeventSenior Engineer SalesOnline now

Need help choosing the right model? I can confirm specifications, stock and lead time before you order.

Email meContact us

NVR2204-4KS2

4 Channel 1U 2HDDs Lite 4K H.265 Network Video Recorder

> Smart H.265+/Smart H.264+/H.265/H.264

> Max 80Mbps incoming bandwidth

> Up to 8Mp resolution preview&playback

> Up to 1ch@8MP/4ch@1080P decoding

> HDMI/VGA simultaneous video output



Product Data


System

Main Processor

Dual-core embedded processor

Operating System

Embedded LINUX

Audio and Video

IP Camera Input

4/8 Channel

Two-way Talk

1 Channel Input, 1 Channel Output, RCA

Display

Interface

1 HDMI, 1 VGA

Resolution

HDMI: 3840×2160, 1920×1080, 1280×1024, 1280×720

VGA: 1920×1080, 1280×1024, 1280×720

Decoding Capacity

1ch@8MP 30fps, 4ch@1080P 30fps

Multi-screen Display

4CH: 1/4

8CH: 1/4/8/9

OSD

Camera title, Time, Camera lock, Motion detection, Recording

Recording

Compression

Smart H.265+/H.265/Smart H.264+/H.264

Resolution

8MP/6MP/5MP/4MP/3MP/1080P/720P/D1&etc.

Record Rate

80Mbps

Bit Rate

16Kbps ~ 20Mbps Per Channel

Record Mode

Manual, Schedule (Continuous, MD (Motion Detection), Alarm, IVS)

Record Interval

1~120 min (default: 60 min), Pre-record: 1~30 sec, Post-record: 10~300 sec

Video Detection and Alarm

Trigger Events

Recording, PTZ, Tour, Video Push, Snapshot, and Screen Tips

Video Detection

Motion Detection, MD Zones: 396 (22 × 18),

and Tampering

Alarm input

N/A

Relay Output

N/A

Playback and Backup

Sync Playback

1/4

Search Mode

Time /Date, MD and Exact Search

(accurate to second)

Playback Function

Play, Pause, Stop, Rewind, Fast play, Slow Play, Next File, Previous File, Next Camera, Previous Camera, Full Screen, Shuffle, Backup Selection, Digital Zoom

Backup Mode

USB Device/Network

Third-party Support

Third-party Support

Onvif, RTSP

Network

Interface

1 RJ-45 port (10/100Mbps)

PoE

N/A

Network Function

HTTP/HTTPS, TCP/IP, IPv4/IPv6, RTSP, UDP, NTP, DHCP, DNS, IP Filter, DDNS, IP Search(Support Dahua IP camera, DVR, NVS and etc.), P2P

Optical Fiber Interface

N/A

Max. User Access

128 users

Smart Phone

iPhone, iPad, Android

Interoperability

ONVIF 2.4, SDK, CGI

Storage

Internal HDD

2 SATA III ports, up to 10 TB for a single HDD. The maximum HDD capacity varies with environment temperature

HDD Mode

Single

eSATA

N/A

Auxiliary Interface

USB

2 ports (1 Rear USB2.0, 1 Front USB2.0)

RS232

N/A

RS485

N/A

Electrical

Power Supply

Single, DC12V/4A

Power Consumption

<3W (without HDD)

Environmental

Operating Conditions

-10°C to +55°C (+14°F to +131°F), 86–106kpa

Storage Conditions

0°C to +40°C (+32°F to +104°F), 30–85% RH

Construction

Dimensions(W×D×H)

1U, 375 mm × 275 mm × 53 mm (14.8" × 10.8" × 2.1")

Net Weight

1.5 kg (3.31 lb) (without HDD)

Gross Weight

3.0 kg (6.61 lb) (without HDD)

Certifications

CE

EN55032, EN55024, EN50130-4, EN60950-1

FCC

Part 15 Subpart B, ANSI C63.4-2014

UL

UL60950-1

Order & Pricing Information for Surveillance Products

Please note the following important details when ordering surveillance products from ICCTVZONE:

  • Order confirmation: After you place an order, please check the confirmation email from our team. We will confirm stock, lead time and shipping before dispatch.
  • Stock & replacements: Inventory status is not real-time. If an item is out of stock, we may propose a compatible replacement model for your approval.
  • Final pricing: Prices shown are indicative. The final price is confirmed on the Proforma Invoice (PI) after order confirmation.
  • Project-specific pricing: Some products are configured for project requirements; pricing may vary with quantity and specification.
  • Minimum order: A minimum order value may apply to non-stock or project items; our team will confirm before processing.
  • Shipping costs: Shipping is calculated separately and added to the order total.
  • Duties & taxes: Import duties, taxes and customs clearance fees are not included in the product price or shipping quote. These charges are the customer's responsibility.
  • Genuine products: We supply genuine products from leading brands with current firmware.
  • Technical support: Our engineers provide pre-sales and after-sales technical support.
  • Warranty: Warranty terms depend on the product and order type; we will confirm the applicable coverage in writing.

Questions? Contact sales@icctvzone.com.
Why this model

Product Features

What this model is for, what it does well, and what to confirm before it goes on a project.

Best for

Small four-camera sites that need a 1U Lite-series 4K H.265 network recorder with dual HDD bays.

Before you orderConfirm your camera count, required HDD capacity and current lead time with ICCTVZONE before placing the order.
01
Dual HDD Bays

Two HDD positions give you room to plan storage across your recordings without relying on a single drive.

02
Flexible Compression

Supports Smart H.265+, Smart H.264+, H.265 and H.264 to help you manage recording bandwidth and storage.

03
4K Preview and Playback

Up to 8MP resolution preview and playback with HDMI and VGA simultaneous output for straightforward local monitoring.
