DAHUA NVR1B04/1B08HC/E 4/8 Channel Cooper 1U H.265 Network Video Recorder
DAHUA NVR1B04/1B08HC/E 4/8 Channel Cooper 1U H.265 Network Video Recorder
icctvzone

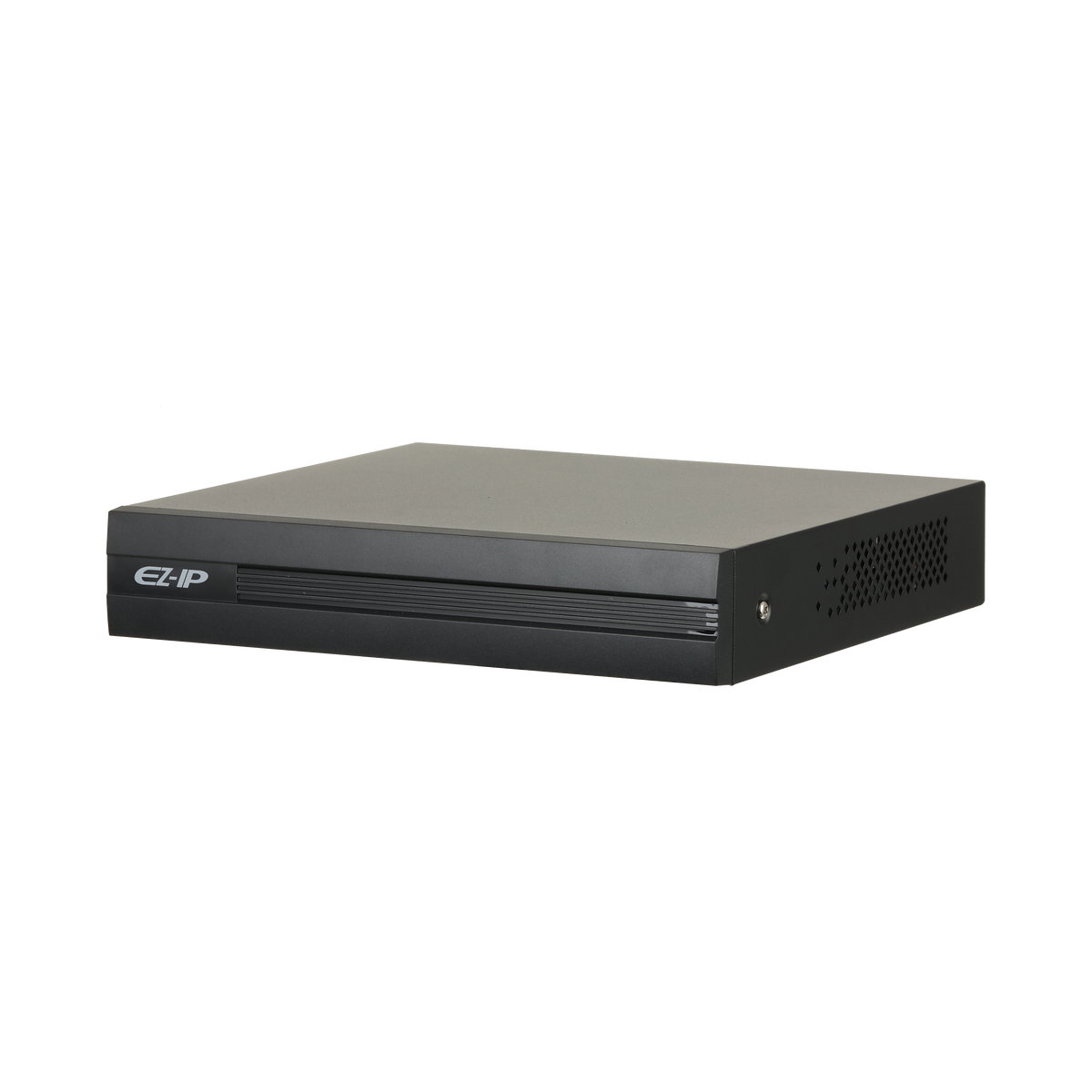

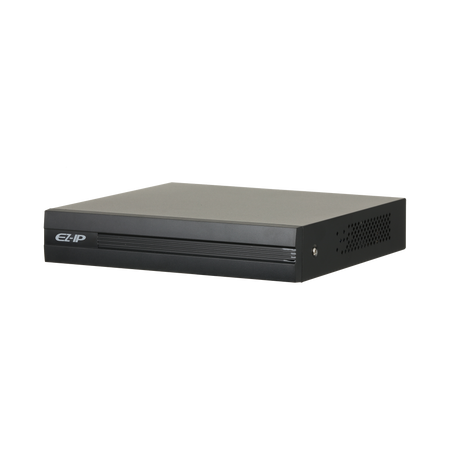

Dahua NVR1B04HC/E 8 Channel 1U H.265 Network Video Recorder

In stock
SKU: NVR1B04HC/E
$98.00
Lead time & order confirmation

Most orders ship within 30 working days. Stock status shown on this page is not real-time.

After you place your order, please check the order confirmation email from our team. We will confirm stock, lead time and shipping before dispatch. If an item is out of stock, we may propose a compatible replacement model for your approval.

Working to a project deadline? Contact us before ordering.

Need help with this product?

Our team can confirm specifications, stock and pricing before you order.

Email sales@icctvzone.com or contact us.
Authentic productsGenuine brands, traceable supply
Worldwide shippingTracked delivery to 200+ countries
Technical supportPre-sales and after-sales help
Daniel Levent
Daniel LeventSenior Engineer SalesOnline now

Need help choosing the right model? I can confirm specifications, stock and lead time before you order.

Email meContact us

NVR1B08HC/E

8 Channel Cooper 1U H.265 Network Video Recorder

> H.265+/H.264+ codec decoding
> Max 40Mbps/20Mpbs incoming/outgoing bandwidth
> Max 4/8 channel IP camera inputs
> Up to 6MP resolution preview&playback
> Up to 1ch@6MP/4ch@1080P 25fps decoding
> HDMI/VGA simultaneous video output



Product Data


System

Main Processor

Dual-core embedded processor

Operating System

Embedded LINUX

Audio and Video

IP Camera Input

4/8 Channel

Two-way Talk

N/A

Display

Interface

1 HDMI, 1 VGA

Resolution

1920×1080, 1280×1024, 1280×720

Decoding Capacity

1ch@6MP 30fps, 4ch@1080P 25fps

Multi-screen Display

4CH: 1/4

8CH: 1/4/8/9

OSD

Camera title, Time, Camera lock, Motion detection, Recording

Recording

Compression

H.265+/H.264+

Resolution

6MP/5MP/4MP/3MP/1080P/ 720P/ D1&etc.

Record Rate

40Mbps

Bit Rate

16Kbps ~ 20Mbps Per Channel

Record Mode

Manual, Schedule(Regular(Continuous), MD, Stop

Record Interval

1~120 min (default: 60 min), Pre-record: 1~30 sec, Post-record: 10~300 sec

Video Detection and Alarm

Trigger Events

Recording, PTZ, Tour, Video Push, Snapshot, and Screen Tips

Video Detection

Motion Detection, MD Zones: 396 (22 × 18),

and Tampering

Alarm input

N/A

Relay Output

N/A

Playback and Backup

Sync Playback

4CH: 1/4

8CH: 1/4/9

Search Mode

Time /Date, MD and Exact Search

(accurate to second)

Playback Function

Play, Pause, Stop, Rewind, Fast play, Slow Play, Next File, Previous File, Next Camera, Previous Camera, Full Screen, Backup Selection, Digital Zoom

Backup Mode

USB Device/Network

Third-party Support

Third-party Support

Arecont Vision, AXIS, Bosch, Brickcom, Canon, CP Plus, Dynacolor, Honeywell, Panasonic, Pelco, Samsung, Sanyo, Sony, Videotec, and more

Network

Interface

1 RJ-45 port (10/100Mbps)

Network Function

HTTP/HTTPS, TCP/IP, IPv4/IPv6, RTSP, UDP, NTP, DHCP, DNS, IP Filter, IP Search(Support IP camera, DVR, NVS and etc.), P2P

Optical Fiber Interface

N/A

Max. User Access

128 users

Smart Phone

iPhone, iPad, Android

Interoperability

ONVIF ,SDK, CGI Conformant

Storage

Internal HDD

1 SATA III Port, up to 4TB capacity for each HDD

HDD Mode

Single

eSATA

N/A

Auxiliary Interface

USB

2 ports (2 Rear USB2.0)

RS232

N/A

RS485

N/A

Electrical

Power Supply

Single, DC12V/1.5A

Power Consumption

<2.57W (without HDD)

Environmental

Operating Conditions

-10°C ~ +45°C (+14°F ~ +113°F), 86 ~ 106kpa

Storage Conditions

-20°C ~ +70°C (-4°F ~ +158°F), 0 ~ 90% RH

Construction

Dimensions(W×D×H)

Cooper 1U, 197mm×196.6mm×41.5mm

(7.76" x 7.74" x 1.63")

Net Weight

1.15 kg (2.54 lb) (without HDD)

Gross Weight

1.65kg(3.64 lb)(without HDD)

Certifications

CE

EN55032, EN55024, EN50130-4, EN60950-1

FCC

Part 15 Subpart B, ANSI C63.4-2014

Order & Pricing Information for Surveillance Products

Please note the following important details when ordering surveillance products from ICCTVZONE:

  • Order confirmation: After you place an order, please check the confirmation email from our team. We will confirm stock, lead time and shipping before dispatch.
  • Stock & replacements: Inventory status is not real-time. If an item is out of stock, we may propose a compatible replacement model for your approval.
  • Final pricing: Prices shown are indicative. The final price is confirmed on the Proforma Invoice (PI) after order confirmation.
  • Project-specific pricing: Some products are configured for project requirements; pricing may vary with quantity and specification.
  • Minimum order: A minimum order value may apply to non-stock or project items; our team will confirm before processing.
  • Shipping costs: Shipping is calculated separately and added to the order total.
  • Duties & taxes: Import duties, taxes and customs clearance fees are not included in the product price or shipping quote. These charges are the customer's responsibility.
  • Genuine products: We supply genuine products from leading brands with current firmware.
  • Technical support: Our engineers provide pre-sales and after-sales technical support.
  • Warranty: Warranty terms depend on the product and order type; we will confirm the applicable coverage in writing.

Questions? Contact sales@icctvzone.com.
Why this model

Product Features

What this model is for, what it does well, and what to confirm before it goes on a project.

Best for

Small to mid-size sites that need an 8-channel 1U network video recorder for H.265 IP camera recording and playback.

Before you orderConfirm your required channel count and camera compatibility, then check current stock and lead time for the NVR1B04HC/E before ordering.
01
Efficient H.265 Recording

H.265+/H.264+ compression helps reduce storage load while keeping your IP camera footage organized and easy to review.

02
Flexible Camera Inputs

Supports up to 4 or 8 IP camera inputs, giving you room to scale a compact surveillance setup as needs grow.

03
Smooth Local Viewing

HDMI and VGA outputs run simultaneously, so live views and playback can be shown on two displays at once.
