Home » Dahua S3024-24GT 24-Port Unmanaged Gigabit Switch
DAHUA S3024-24GT 24-Port Unmanaged Gigabit Switch
DAHUA S3024-24GT 24-Port Unmanaged Gigabit Switch
icctvzone

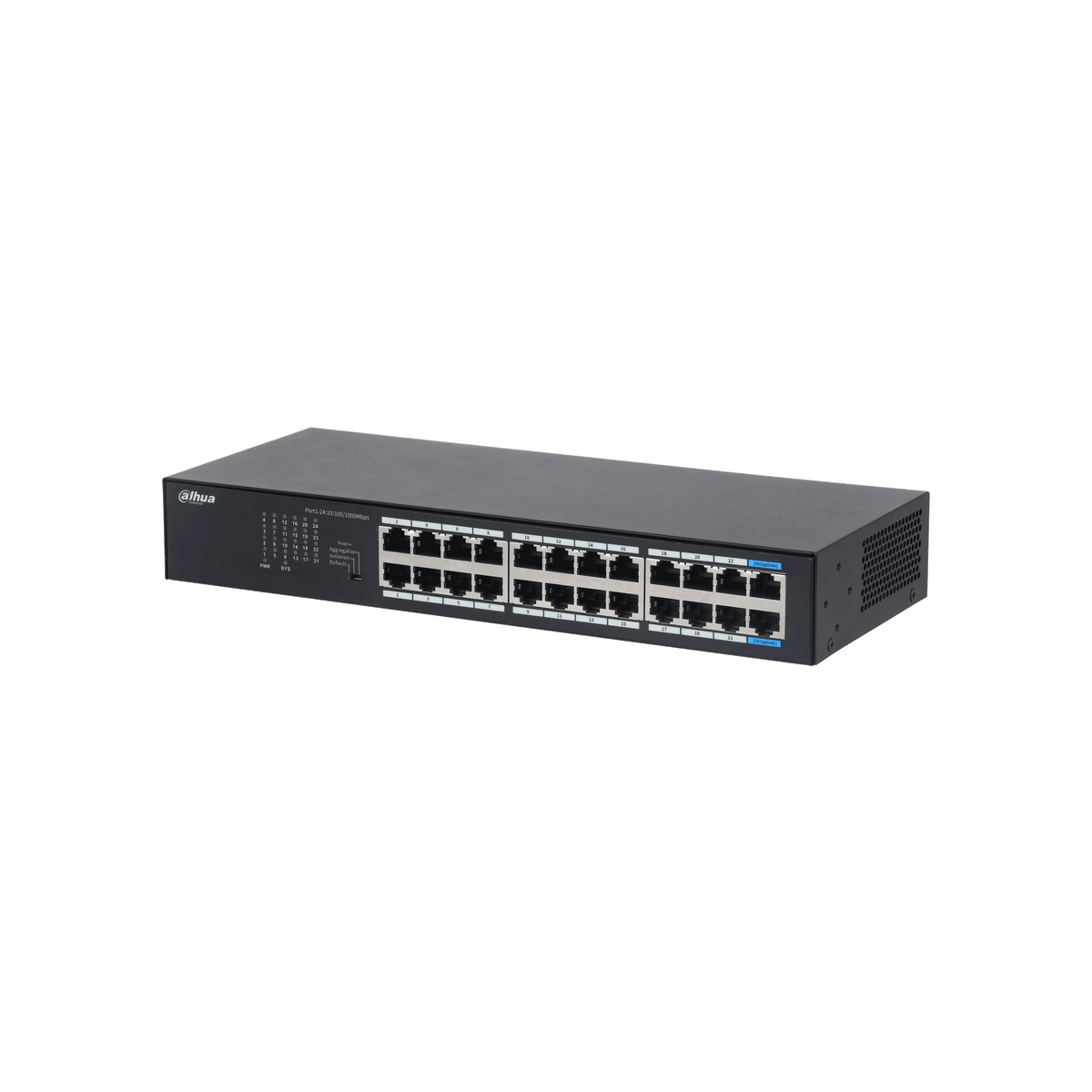

Dahua S3024-24GT 24-Port Unmanaged Gigabit Switch

In stock
SKU: S3024-24GT
$9,999.99
Lead time & order confirmation

Most orders ship within 30 working days. Stock status shown on this page is not real-time.

After you place your order, please check the order confirmation email from our team. We will confirm stock, lead time and shipping before dispatch. If an item is out of stock, we may propose a compatible replacement model for your approval.

Working to a project deadline? Contact us before ordering.

Need help with this product?

Our team can confirm specifications, stock and pricing before you order.

Email sales@icctvzone.com or contact us.
Authentic productsGenuine brands, traceable supply
Worldwide shippingTracked delivery to 200+ countries
Technical supportPre-sales and after-sales help
Daniel Levent
Daniel LeventSenior Engineer SalesOnline now

Need help choosing the right model? I can confirm specifications, stock and lead time before you order.

Email meContact us

S3024-24GT

24-Port Unmanaged Gigabit Switch

> 24 ¡Á RJ-45 10/100/1000 ports.
> The all-gigabit ports transmit data without lag.
> Features aggregation mode which aggregates uplink ports.
> Features isolation mode which isolates all the ports from each other.
> With its solid full metal design, the device has great heat dissipation and no fan.
> Supports rack mount, wall mount and desktop mount.


Basic

Layer



Layer 2

Switching Capacity



48 Gbps

Packet Forwarding Rate



35.712 Mpps

Description of Function Slots



Port 1-22: 22 × RJ-45 10/100/1000 Mbps;

Port 23-24: 2 × RJ-45 10/100/1000 Mbps (uplink)

Operating Temperature



–10 °C to +55 °C (+14 °F to +131 °F)

Operating Humidity



5%–95% (RH), non-condensing

Storage Temperature



–40 °C to +70 °C (–40 °F to +158 °F)

Storage Humidity



5%–95% (RH), non-condensing

Power Supply



Built in power supply: 100–240 VAC, 50/60 Hz, 0.4 A

Power Consumption



Idling: 2.7 W;

Full load: 12.3 W

Statics Protection



Air discharge: 8 kV;

Contact discharge: 6 kV

Lightning Protection



Common mode: 2 kV;

Differential mode: 0.5 kV

Net Weight



0.83 kg (1.82 lb)

Gross Weight



1.34 kg (2.95 lb)

Product Dimensions



294 mm × 119 mm × 44 mm (11.57" × 4.68" × 1.73") (L × W × H)

Packaging Dimensions



353 mm × 215 mm × 75 mm (13.9" × 8.46" × 2.95") (L × W × H)

Casing Material



Sheet Metal

Installation



Desktop mount; wall mount; rack mount

Certifications



CE

Hardware

DIP Switch



Default: Default setting

Post isolation: Prevents traffic from being sent between ports 1-22, but allows ports 1-22 to send its traffic to the uplink ports 23-24. These uplink ports can also send their traffic to 1-22.

Port aggregation: Aggregates uplink ports.

Performance

Packet Buffer Size



8.4 Mbit

Jumbo Frame



12K Byte

MAC Table Size



16K

Communication Standard



IEEE 802.3; IEEE 802.3u; IEEE 802.3x; IEEE 802.3ab; IEEE 802.3ad

Feature

Link Aggregation



Static link aggregation

Port Feature



IEEE 802.3x traffic control

IEEE 802.3x Flow Control



Yes

General

Packing List



1 × User Manual;

1 × Legal and Regulatory Information;

1 × Power Cord;

1 × Rack-mounting Kit;

Order & Pricing Information for Surveillance Products

Please note the following important details when ordering surveillance products from ICCTVZONE:

  • Order confirmation: After you place an order, please check the confirmation email from our team. We will confirm stock, lead time and shipping before dispatch.
  • Stock & replacements: Inventory status is not real-time. If an item is out of stock, we may propose a compatible replacement model for your approval.
  • Final pricing: Prices shown are indicative. The final price is confirmed on the Proforma Invoice (PI) after order confirmation.
  • Project-specific pricing: Some products are configured for project requirements; pricing may vary with quantity and specification.
  • Minimum order: A minimum order value may apply to non-stock or project items; our team will confirm before processing.
  • Shipping costs: Shipping is calculated separately and added to the order total.
  • Duties & taxes: Import duties, taxes and customs clearance fees are not included in the product price or shipping quote. These charges are the customer's responsibility.
  • Genuine products: We supply genuine products from leading brands with current firmware.
  • Technical support: Our engineers provide pre-sales and after-sales technical support.
  • Warranty: Warranty terms depend on the product and order type; we will confirm the applicable coverage in writing.

Questions? Contact sales@icctvzone.com.
Why this model

Product Features

What this model is for, what it does well, and what to confirm before it goes on a project.

Best for

Ideal for expanding a camera network with 24 gigabit RJ-45 ports, including two uplink ports, in small to mid-size surveillance installations.

Before you orderConfirm your camera count fits 24 ports, that unmanaged Layer 2 operation suits your network, and check current stock and lead time before ordering.
01
All-Gigabit Ports

24 RJ-45 10/100/1000 Mbps ports, including two uplink ports, keep camera traffic moving without lag.

02
Isolation and Aggregation

DIP switch modes let you isolate ports 1-22 from each other or aggregate uplink ports for flexible network layouts.

03
Fanless Metal Housing

A solid full metal, fanless design supports rack, wall or desktop mounting with reliable heat dissipation.
