Home » Dahua SF1016L 16-Port 10/100 Mbps Unmanaged Desktop Switch

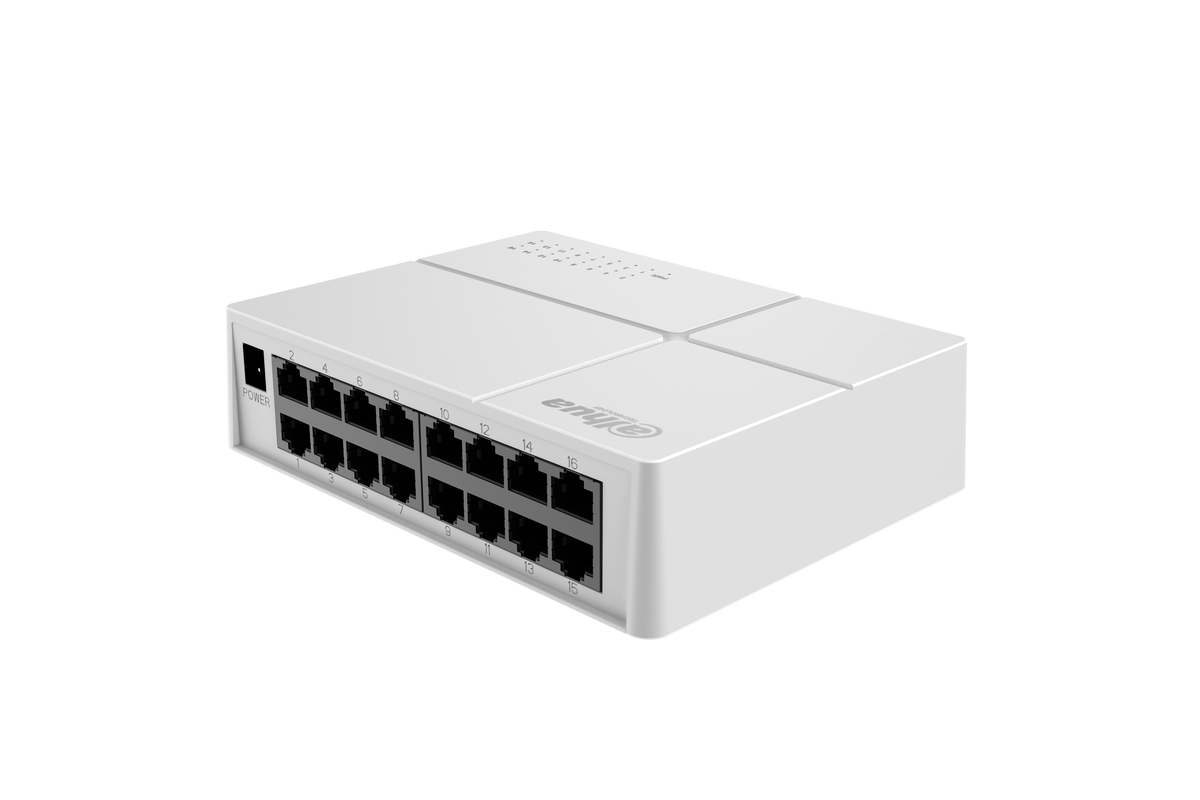

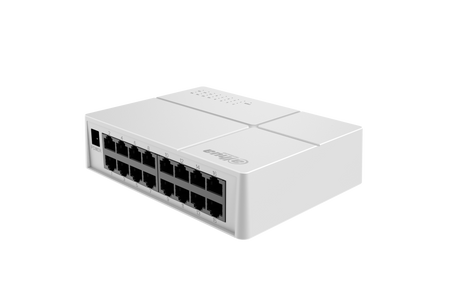

DAHUA SF1016L 16-port Unmanaged Desktop Switch
DAHUA SF1016L 16-port Unmanaged Desktop Switch
icctvzone

Dahua SF1016L 16-Port 10/100 Mbps Unmanaged Desktop Switch

In stock
SKU: SF1016L
$9,999.99
Lead time & order confirmation

Most orders ship within 30 working days. Stock status shown on this page is not real-time.

After you place your order, please check the order confirmation email from our team. We will confirm stock, lead time and shipping before dispatch. If an item is out of stock, we may propose a compatible replacement model for your approval.

Working to a project deadline? Contact us before ordering.

Need help with this product?

Our team can confirm specifications, stock and pricing before you order.

Email sales@icctvzone.com or contact us.
Authentic productsGenuine brands, traceable supply
Worldwide shippingTracked delivery to 200+ countries
Technical supportPre-sales and after-sales help
Daniel Levent
Daniel LeventSenior Engineer SalesOnline now

Need help choosing the right model? I can confirm specifications, stock and lead time before you order.

Email meContact us

SF1016L

> 16 × RJ-45 10/100 Mbps ports.

> Wide operating temperature ranging from –10 °C to +55 °C.

> Easy to install, and is plug and play.

> Supports wall mount and desktop mount.

Basic

Switching Capacity



3.2 Gbps

Packet Forwarding Rate



2.38 Mpps

Description of Function Slots



Port 1-16: 16 × RJ-45 10/100 Mbps

Management Type



No

Operating Temperature



–10 °C to +55 °C (+14 °F to +131 °F)

Operating Humidity



10%–90% (RH), non-condensing

Power Consumption



Idling: 0.7 W;

Full load:1.5 W

Power Supply



12 VDC, 0.5 A

Statics Protection



Air discharge: 8 kV;

Contact discharge: 6 kV

Lightning Protection



Common mode:4 kV;

Differential mode:0.5 kV

Net Weight



0.3 kg (0.66 lb)

Product Dimensions



160 mm × 120 mm × 42 mm (6.30" × 4.72" × 1.65")(L × W × H)

Hardware

Included Power Adapter



Yes

Ethernet Port



16

Ethernet Port Speed



10/100 Mbps

Storage Temperature



–40 °C to +60 °C (–40 °F to +140 °F)

Storage Humidity



10%–90% (RH), non-condensing

Protection



IP30

Performance

Jumbo Frame



1520 Byte

MAC Table Size



8K

Communication Standard



IEEE 802.3; IEEE 802.3u; IEEE 802.3X

General

Gross Weight



0.6 kg (1.32 lb)

Packaging Dimensions



207 mm × 180 mm × 92 mm

(8.14" × 7.08" × 3.62")(L×W×H)

Installation



Desktop mount; wall mount

Certifications



CE

Packing List



1 × User Manual;

1 × Legal and Regulatory Information;

1 × Power Adapter

Order & Pricing Information for Surveillance Products

Please note the following important details when ordering surveillance products from ICCTVZONE:

  • Order confirmation: After you place an order, please check the confirmation email from our team. We will confirm stock, lead time and shipping before dispatch.
  • Stock & replacements: Inventory status is not real-time. If an item is out of stock, we may propose a compatible replacement model for your approval.
  • Final pricing: Prices shown are indicative. The final price is confirmed on the Proforma Invoice (PI) after order confirmation.
  • Project-specific pricing: Some products are configured for project requirements; pricing may vary with quantity and specification.
  • Minimum order: A minimum order value may apply to non-stock or project items; our team will confirm before processing.
  • Shipping costs: Shipping is calculated separately and added to the order total.
  • Duties & taxes: Import duties, taxes and customs clearance fees are not included in the product price or shipping quote. These charges are the customer's responsibility.
  • Genuine products: We supply genuine products from leading brands with current firmware.
  • Technical support: Our engineers provide pre-sales and after-sales technical support.
  • Warranty: Warranty terms depend on the product and order type; we will confirm the applicable coverage in writing.

Questions? Contact sales@icctvzone.com.
Why this model

Product Features

What this model is for, what it does well, and what to confirm before it goes on a project.

Best for

Adding sixteen 10/100 Mbps camera or device connections to a small surveillance network without configuration.

Before you orderConfirm you have enough free 10/100 Mbps ports and a suitable 12 VDC power outlet, and check current lead time before ordering.
01
Sixteen Fast Ethernet Ports

Connect up to sixteen RJ-45 devices at 10/100 Mbps for straightforward camera and device aggregation.

02
Plug-and-Play Setup

Unmanaged operation means no configuration steps, so the switch can be put into service quickly.

03
Flexible Mounting

Install on a desktop or wall using the supported mounting options to suit your cabinet or wall space.
