XVR7108E-4KL-B-X - DAHUA DH-XVR7108E-4KL-B-X 8 Channel Penta-brid 4K Elegant 1U Digital Video Recorder with IoT & POS functionalities Smart Search and Intelligent Video System XVR7108E-4KL-B-X without logo

XVR7108E-4KL-B-X

8 Channel Penta-brid 4K Elegant 1U Digital Video Recorder

> without Logo,English firmware
> 100% original products manufactured by DAHUA

XVR7108E-4KL-B-X - DAHUA DH-XVR7108E-4KL-B-X 8 Channel Penta-brid 4K Elegant 1U Digital Video Recorder with IoT & POS functionalities Smart Search and Intelligent Video System XVR7108E-4KL-B-X without logo OVERVIEW

With the surveillance operators pursuing to HD/UHD which further adds the storage and transmission cost, HDCVI H.265+/H.265 has been released to incredibly decrease the required bitrate while ensuring the video quality in realizing high resolution surveillance such as 4MP/4K. Designed as a collection of intelligent encoding algorithm based on H.265, H.265+ significantly improves encoding efficiency and save bandwidth/storage cost, which fully meet the needs of users facing budget constraints who both require quality and performance. Besides smart codec, the series supports various advanced functions like IoT and POS functionalities, making the whole system smarter and more convenient which is a perfect choice for mid to large-scale business and projects where both high reliability and flexibility are required.

XVR7108E-4KL-B-X - DAHUA DH-XVR7108E-4KL-B-X 8 Channel Penta-brid 4K Elegant 1U Digital Video Recorder with IoT & POS functionalities Smart Search and Intelligent Video System XVR7108E-4KL-B-X without logo FUNCTIONS

Long Distance

Transmission The HDCVI system supports long distance transmission over coaxial cable and UTP, max. 700m for 4K/4MP, 800m for 1080P and 1200m for 720P.

Smart H.265+

Smart Codec, H.265+ can reduce up to 90% bit rate and storage requirements compared with H.264 without having to invest in new cameras.

HDCVI/AHD/TVI/CVBS

Auto-detect The XVR can auto recognize the signal of front-camera without any setting. It makes operation more friendly and convenient.

High Definition Camera Input

The XVR supports up to 8MP HD resolution (3840 x 2160) HDCVI camera and 12MP IP camera input.

Coaxial Audio/Upgrade/Alarm

The integrated design can reduce wiring troubles which makes it much more cost-effective and convenient for installation.

 IoT Functionality

HDCVI IoT can achieve multi-dimensional surveillance by integrating sensors with monitoring video, which not only can generate the report for analysis but also prevent risk in advance.

POS Functionality

This funcion is mainly used in retail programs which can superimpose POS ticket information on the video channel to preview and record.

Smart Fan Design

The smart fan can automatically turn on or turn off according to the CPU temperature. This function can effectively reduce the fan noise to provide a better user experience.

Spot Output

HDMI2 port is made for a secondary monitor. This allows the operator to view one special monitor that assigned to selected cameras or video inputs from higher security areas.

Intelligent Video System (IVS)

With built-in intelligent video analytics, the XVR has the ability to detect and analyze moving objects for improved video surveillance. The XVR provides optional standard intelligence at the edge allowing detection of multiple object behaviors such as abandoned or missing objects. IVS also supports Tripwire analytics, allowing the camera to detect when a pre-determined line has been crossed.

Face Detection

It is a typical technology being used in a variety of applications that search or identify individuals which show front cameras.

Smart Search

This function helps you get more motion detect video during a short time through drawing a region when playback. It is very useful when an emergency occurs.

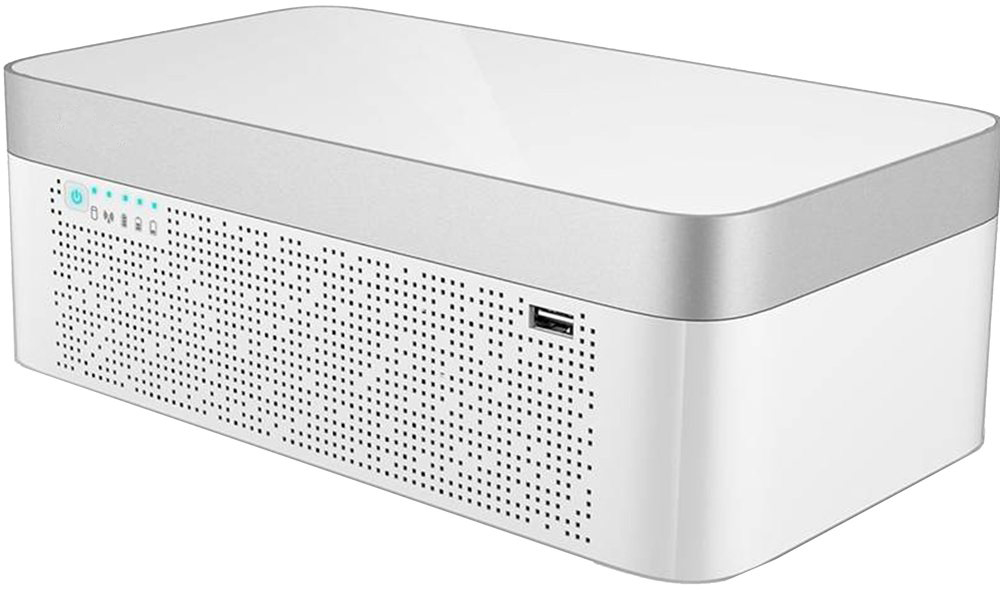

XVR7108E-4KL-B-X - DAHUA DH-XVR7108E-4KL-B-X 8 Channel Penta-brid 4K Elegant 1U Digital Video Recorder with IoT & POS functionalities Smart Search and Intelligent Video System XVR7108E-4KL-B-X without logo Picture

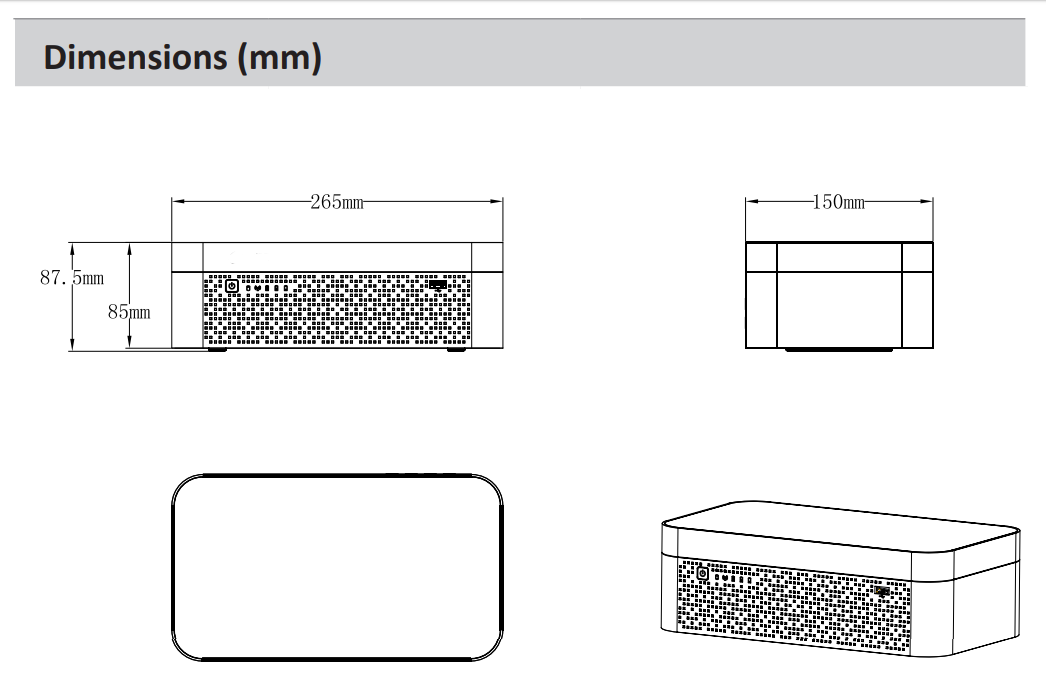

XVR7108E-4KL-B-X - DAHUA DH-XVR7108E-4KL-B-X 8 Channel Penta-brid 4K Elegant 1U Digital Video Recorder with IoT & POS functionalities Smart Search and Intelligent Video System XVR7108E-4KL-B-X without logo Dimension

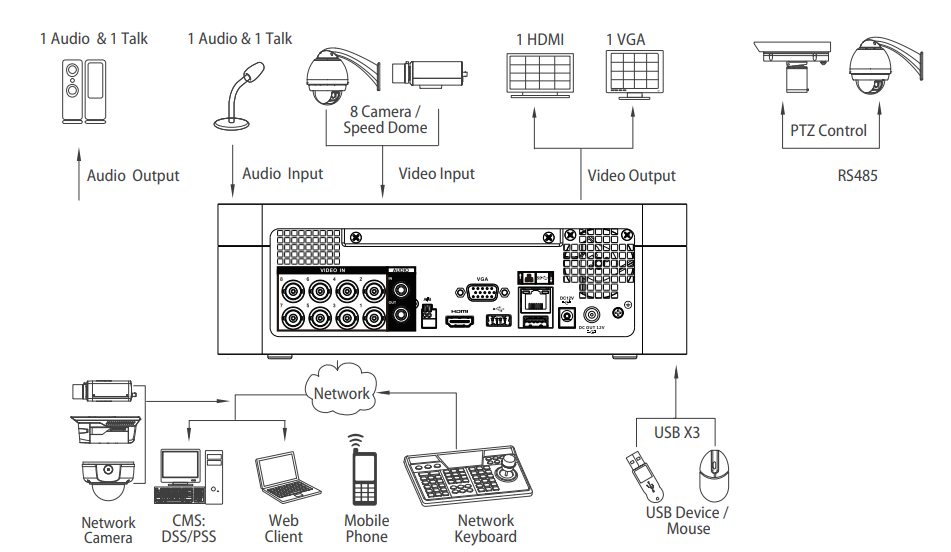

XVR7108E-4KL-B-X - DAHUA DH-XVR7108E-4KL-B-X 8 Channel Penta-brid 4K Elegant 1U Digital Video Recorder with IoT & POS functionalities Smart Search and Intelligent Video System XVR7108E-4KL-B-X without logo Rear Panel
