XVR5104C-4KL-X - DAHUA DH-XVR5104C-4KL-X 4 Channel Penta-brid 4K Smart 1U Digital Video Recorder With Smart Search and Intelligent Video System HDCVI/AHD/TVI/CVBS/IP video inputs XVR5104C-4KL-X without logo

In stock

SKU

XVR5104C-4KL-X-1

Rating:

100% of 100

1 Review Add Your Review

$76.00

PAL/NTSC

Brand

Qty

XVR5104C-4KL-X

4 Channel Penta-brid 4K Smart 1U Digital Video Recorder

> H.265+/H.265 dual-stream video compression
> Supports HDCVI/AHD/TVI/CVBS/IP video inputs
> Max 6 channels IP camera inputs, each channel up to 8MP; Max 24Mbps Incoming Bandwidth
> Smart Search and Intelligent Video System

> without Logo,English firmware
> 100% original products manufactured by DAHUA

Special Note:

Because the product always maintains a fast inventory flow, the model you ordered may take longer to produce (about 3 weeks or more days), we will push the factory and try our best to ship to you as soon as possible, thank you for your waiting.

Can upgrade, DAHUA original firmware,2 year guarantee

Skip to the end of the images gallery

Skip to the beginning of the images gallery

XVR5104C-4KL-X - DAHUA DH-XVR5104C-4KL-X 4 Channel Penta-brid 4K Smart 1U Digital Video Recorder With Smart Search and Intelligent Video System HDCVI/AHD/TVI/CVBS/IP video inputs XVR5104C-4KL-X without logo

XVR5104C-4KL-X

4 Channel Penta-brid 4K Smart 1U Digital Video Recorder

> without Logo,English firmware
> 100% original products manufactured by DAHUA

XVR5104C-4KL-X - DAHUA DH-XVR5104C-4KL-X 4 Channel Penta-brid 4K Smart 1U Digital Video Recorder With Smart Search and Intelligent Video System HDCVI/AHD/TVI/CVBS/IP video inputs XVR5104C-4KL-X without logo OVERVIEW

With the surveillance operators pursuing to HD/UHD which further adds the storage and transmission cost, HDCVI H.265+/H.265 has been released to incredibly decrease the required bitrate while ensuring the video quality in realizing high resolution surveillance such as 4MP/4K. Designed as a collection of intelligent encoding algorithm based on H.265, H.265+ significantly improves encoding efficiency and save bandwidth/storage cost, which fully meet the needs of users facing budget constraints who both require quality and performance. Besides smart codec, the series supports various advanced functions like IoT and POS functionalities, making the whole system smarter and more convenient which is a perfect choice for mid to large-scale business and projects where both high reliability and flexibility are required.

XVR5104C-4KL-X - DAHUA DH-XVR5104C-4KL-X 4 Channel Penta-brid 4K Smart 1U Digital Video Recorder With Smart Search and Intelligent Video System HDCVI/AHD/TVI/CVBS/IP video inputs XVR5104C-4KL-X without logo FUNCTIONS

Long Distance

Transmission The HDCVI system supports long distance transmission over coaxial cable and UTP, max. 700m for 4K/4MP, 800m for 1080P and 1200m for 720P.

Smart H.265+

Smart Codec, H.265+ can reduce up to 90% bit rate and storage requirements compared with H.264 without having to invest in new cameras.

HDCVI/AHD/TVI/CVBS

Auto-detect The XVR can auto recognize the signal of front-camera without any setting. It makes operation more friendly and convenient.

High Definition Camera Input

The XVR supports up to 8MP HD resolution (3840 x 2160) HDCVI camera and 12MP IP camera input.

Coaxial Audio/Upgrade/Alarm

The integrated design can reduce wiring troubles which makes it much more cost-effective and convenient for installation.

Smart Fan Design

The smart fan can automatically turn on or turn off according to the CPU temperature. This function can effectively reduce the fan noise to provide a better user experience.

Spot Output

HDMI2 port is made for a secondary monitor. This allows the operator to view one special monitor that assigned to selected cameras or video inputs from higher security areas.

Intelligent Video System (IVS)

With built-in intelligent video analytics, the XVR has the ability to detect and analyze moving objects for improved video surveillance. The XVR provides optional standard intelligence at the edge allowing detection of multiple object behaviors such as abandoned or missing objects. IVS also supports Tripwire analytics, allowing the camera to detect when a pre-determined line has been crossed.

Face Detection

It is a typical technology being used in a variety of applications that search or identify individuals which show front cameras.

Smart Search

This function helps you get more motion detect video during a short time through drawing a region when playback. It is very useful when an emergency occurs.

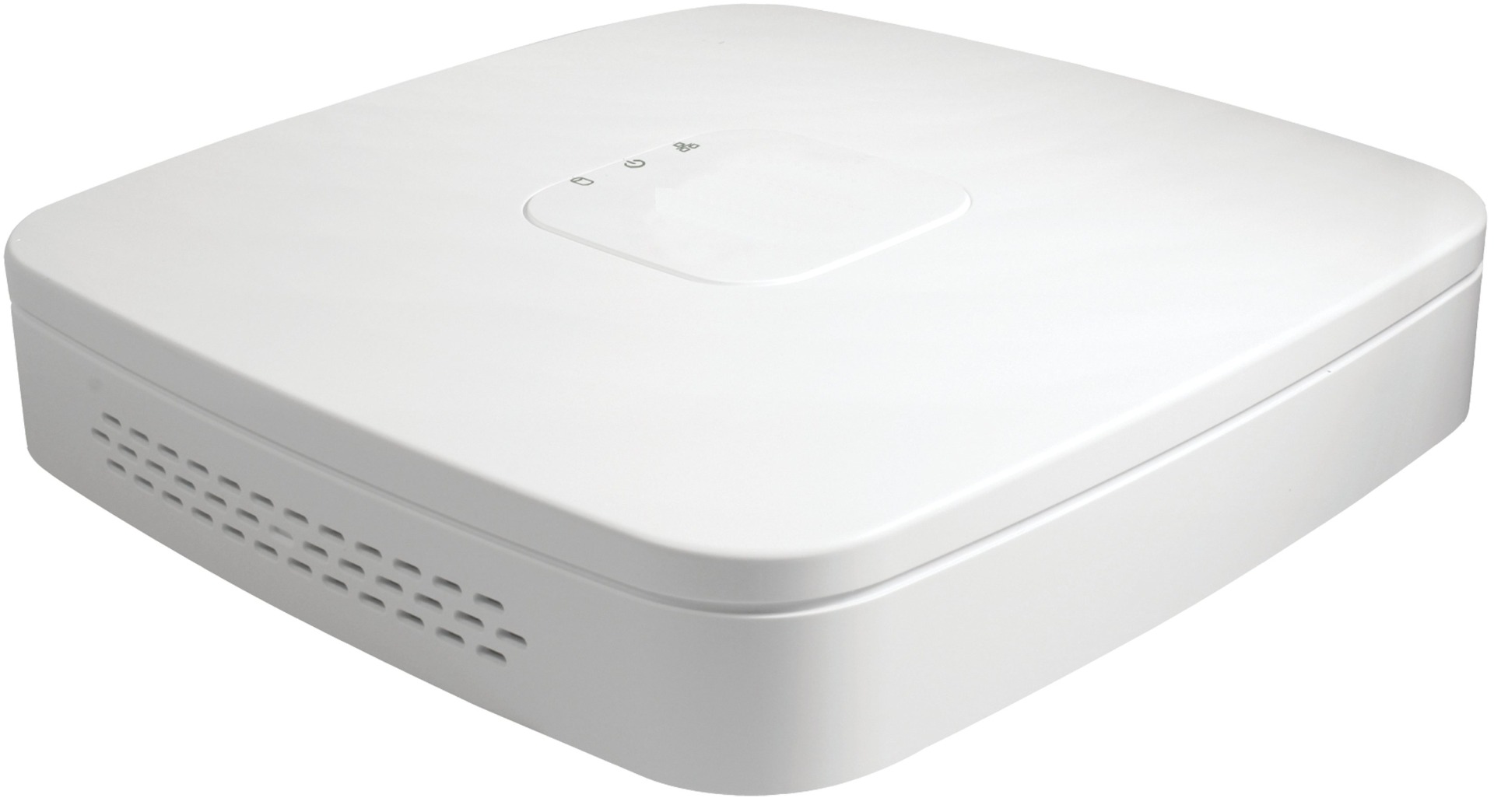

XVR5104C-4KL-X - DAHUA DH-XVR5104C-4KL-X 4 Channel Penta-brid 4K Smart 1U Digital Video Recorder With Smart Search and Intelligent Video System HDCVI/AHD/TVI/CVBS/IP video inputs XVR5104C-4KL-X without logo Picture

DAHUA DH-XVR5104C-4KL-X

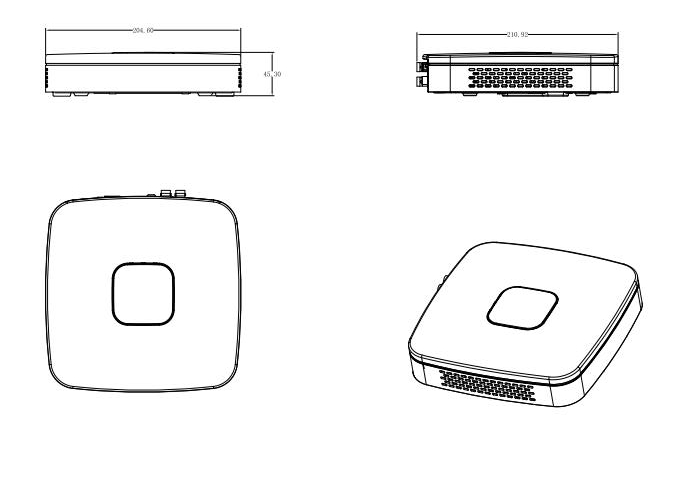

XVR5104C-4KL-X - DAHUA DH-XVR5104C-4KL-X 4 Channel Penta-brid 4K Smart 1U Digital Video Recorder With Smart Search and Intelligent Video System HDCVI/AHD/TVI/CVBS/IP video inputs XVR5104C-4KL-X without logo Dimension

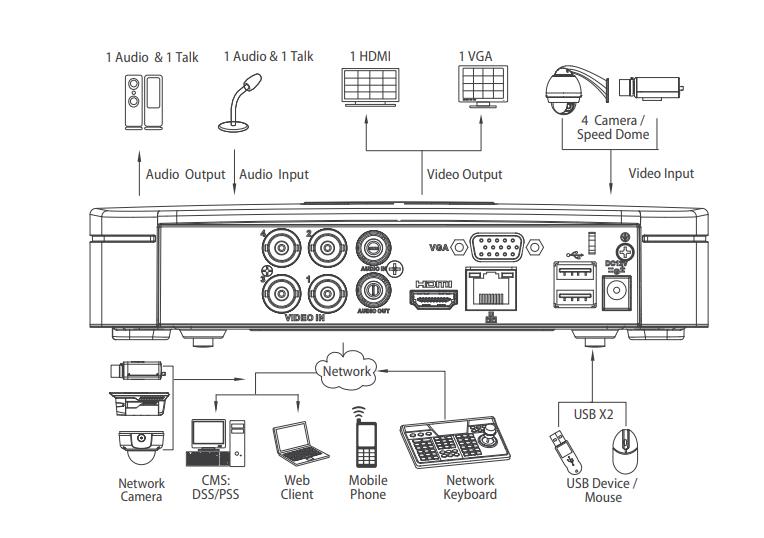

XVR5104C-4KL-X - DAHUA DH-XVR5104C-4KL-X 4 Channel Penta-brid 4K Smart 1U Digital Video Recorder With Smart Search and Intelligent Video System HDCVI/AHD/TVI/CVBS/IP video inputs XVR5104C-4KL-X without logo Rear Panel

XVR5104C-4KL-X - DAHUA DH-XVR5104C-4KL-X 4 Channel Penta-brid 4K Smart 1U Digital Video Recorder With Smart Search and Intelligent Video System HDCVI/AHD/TVI/CVBS/IP video inputs XVR5104C-4KL-X without logo Specification

Technical Specifications

***

Technical Speciﬁcation

System

Main Processor

Embedded Processor

Operating System

Embedded LINUX

Video and Audio

Analog Camera Input

4 Channel, BNC

HDCVI Camera

4K, 6MP, 5MP, 4MP, 1080P@25/30fps, 720P@50/60fps, 720P@25/30fps

AHD Camera

5MP, 4MP, 3MP, 1080P@25/30, 720P@25/30fps

TVI Camera

5MP, 4MP, 3MP, 1080P@25/30, 720P@25/30fps

CVBS Camera

PAL/NTSC

IP Camera Input

4+2 Channel, each channel up to 8MP

Audio In/Out

1/1, RCA

Two-way Talk

Reuse audio in/out, RCA

Recording

Compression

H.265+/H.265/H.264+/H.264

Resolution

4K, 6MP, 5MP, 4K-N, 4MP, 3MP, 4M-N, 1080P, 720P, 960H, D1, CIF

Record Rate

Main stream: the 1st channel 4K(1~7fps), 6MP(1~10fps), 5MP(1~12fps), 4MP/3MP(1~15fps), others 4K-N(1~7fps), 4MP/3MP(1~15fps);

4M-N/1080P/720P/960H/D1/CIF (1~25/30fps)

Sub stream:960H(1~15fps);

D1/CIF(1~25/30fps)

Bit Rate

32Kbps ~ 6144Kbps Per Channel

Record Mode

Manual, Schedule (General, Continuous), MD (Video detection: Motion Detection, Video Loss, Tampering), Alarm, Stop

Record Interval

1 ~ 60 min (default: 60 min), Pre-record: 1 ~ 30 sec, Post-record: 10 ~ 300 sec

Audio Compression

AAC(only for the 1st channel), G.711A, G.711U, PCM

Audio Sample Rate

8KHz, 16 bit Per Channel

Audio Bit Rate

64Kbps Per Channel

Display

Interface

1 HDMI, 1 VGA

Resolution

HDMI:3840×2160, 2560×1440, 1920×1080, 1280×1024, 1280×720

VGA: 1920×1080, 1280×1024, 1280×720

Multi-screen Display

When IP extension mode not enabled: 1/4

When IP extension mode enabled: 1/4/6

OSD

Camera title, Time, Video loss, Camera lock, Motion detection, Recording

Network

Interface

1 RJ-45 Port (100M)

Network Function

HTTP, HTTPS, TCP/IP, IPv4/IPv6, Wi-Fi, 3G/4G, UPnP, RTSP, UDP, SMTP, NTP, DHCP, DNS, IP Filter, PPPoE,DDNS, FTP, Alarm Server, P2P,IP Search (Supports IP camera, DVR, NVS, etc.)

Max. User Access

128 users

Smart Phone

iPhone, iPad, Android

Interoperability

ONVIF 16.12, CGI Conformant

Video Detection and Alarm

Trigger Events

Recording, PTZ, Tour, Video Push, Email, FTP, Snapshot, Buzzer and Screen Tips

Alarm input

Motion Detection, MD Zones: 396 (22 × 18), Video Loss , Tampering and Diagnosis

Alarm input

N/A

Relay Output

N/A

Playback and Backup

Playback

1/4

Search Mode

Time /Date, Alarm, MD and Exact Search (accurate to second)

Playback Function

Play, Pause, Stop, Rewind, Fast play, Slow Play, Next File, Previous File, Next Camera, Previous Camera, Full Screen, Repeat, Shuffle, Backup Selection, Digital Zoom

Backup Mode

USB Device/Network

Storage

Internal HDD

1 SATA Port, up to 10TB capacity

eSATA

N/A

Auxiliary Interface

USB

2 USB Ports (2 USB 2.0)

RS232

N/A

RS485

N/A

Electrical

Power Supply

DC12V/2A

Power Consumption

(without HDD)

<10W

Construction

Dimensions

Smart 1U, 205mm×211mm×45mm (8.1“×8.3”×1.8“)

Net Weight

(without HDD)

0.5kg (1.1lb)

Gross Weight

1.1kg (2.4lb)

Installation

Desktop installation

Environmental

Operating Conditions

-10°C ~ +55°C (+14°F ~ +131°F), 10%~ 90% RH

Storage Conditions

-20°C ~ +70°C (-4°F ~ +158°F) , 0~ 90% RH

Third-party Support

Arecont Vision, AXIS, Bosch, Brickcom, Canon, CP Plus, Dynacolor, Honeywell, Panasonic, Pelco, Samsung, Sanyo, Sony, Videotec, Vivotek, and more

Certifications

FCC: Part 15 Subpart B

CE: CE-LVD: EN 60950-1/IEC 60950-1

CE-EMC: EN 61000-3-2, EN 61000-3-3, EN 55032, EN 50130, EN 55024

UL: UL 60950-1

*****
