SD5A445XA-HNR - DAHUA DH-SD5A445XA-HNR 4MP 45x Starlight IR PTZ AI Network Camera With Starlight technology Auto-tracking and IVS SMD Plus PoE+ IR distance up to 150m SD5A445XA-HNR

SD5A445XA-HNR

4MP 45x Starlight IR PTZ AI Network Camera

SD5A445XA-HNR - DAHUA DH-SD5A445XA-HNR 4MP 45x Starlight IR PTZ AI Network Camera With Starlight technology Auto-tracking and IVS SMD Plus PoE+ IR distance up to 150m SD5A445XA-HNR SYSTEM OVERVIEW

 AI series products adopt the most advanced AI technologies, including deep learning algorithms that primarily target people and vehicles, which provides higher flexibility and accuracy for end-users. This enables the Dahua AI series to offer various advanced applications such as Face Recognition, ANPR, Metadata, People Counting, traffic data statistics, etc. The complete lineup of Dahua AI includes network (PTZ) cameras, network video recorders, servers, and more devices. Beyond seeing the world, the power of AI allows devices to perceive the environment and understand the world in a better way.

Featuring powerful optical zoom and accurate pan/tilt/zoom performance, this camera provides an all-in-one solution for capturing long distance video surveillance for outdoor applications. Together with Starlight Technology, the camera is the perfect solution for dark, lowlight applications. The series combines a day/night mechanical IR cut filter for the highest image quality in variable lighting conditions during the day, and True WDR for applications with direct sunlight or glare.

SD5A445XA-HNR - DAHUA DH-SD5A445XA-HNR 4MP 45x Starlight IR PTZ AI Network Camera With Starlight technology Auto-tracking and IVS SMD Plus PoE+ IR distance up to 150m SD5A445XA-HNR FUNCTIONS

Starlight+ Technology

For challenging low-light applications, Dahua’s Starlight Ultra-low Light Technology offers best-in-class light sensitivity, capturing color details in low light down to 0.001 lux. The camera uses a set of optical features to balance light throughout the scene, resulting in clear images in dark environments.

Wide Dynamic Range

The camera achieves vivid images, even in the most intense contrast lighting conditions, using industry-leading wide dynamic range (WDR) technology. For applications with both bright and low lighting conditions that change quickly, True WDR (120 dB) optimizes both the bright and dark areas of a scene at the same time to provide usable video.

Auto-tracking

This feature controls the pan/tilt/zoom actions of the camera to automatically track an object in motion and to keep it in the scene. The tracking action can be triggered manually or automatically by defined rules. Once a rule is triggered, the camera can zoom in and track the defined target automatically

PFA Technology

PFA technology has innovatively introduced new methods of judgment to ensure the accuracy and predictability of the direction of subject distance adjustment. The result is a set of advanced focusing algorithms. PFA ensures clarity of the image throughout the process of zooming and shortens focus time. The realization of PFA technology substantially improves user experience and increases product value.

Perimeter Protection

Automatically filtering out false alarms caused by animals, rustling leaves, bright lights, etc. Enables system to act secondary recognition for the targets. Improving alarm accuracy. Face Detection 6 attributes and 8 expressions: Gender, age, glasses, expressions (anger, sadness, disgust, fear, surprise, calm, happiness and confusion), mask, beard; Face matting setting: face, single inch photo; Three snapshot methods: real-time snapshot, priority snapshot, quality priority.

Environmental

Dahua cameras operate in extreme temperature environments, rated for use in temperatures from -40 °C to +70 °C (-40 °F to +158 °F) with 95% humidity. The camera complies with the IK10 Vandal Resistance impact rating. Subjected to rigorous dust and water immersion tests and certified to the IP67 Ingress Protection rating makes it suitable for demanding outdoor applications.

Protection

The camera allows for ±25% input voltage tolerance, suitable for the most unstable conditions for outdoor applications. Its 8KV lightning rating provides effective protection for both the camera and its structure against lightning.

Interoperability

The camera conforms to the ONVIF (Open Network Video Interface Forum) specifications, ensuring interoperability between network video products regardless of manufacturer.

SMD  With Deep-Learning Algorithm, Dahua SMD Plus filters the motion detection alarm triggered by non-concerned target and recognizes human and vehicle effectvely, sending alarms when human and vehicle intrude

Protection

IP67; TVS 8000V lightning proof; Surge protection.

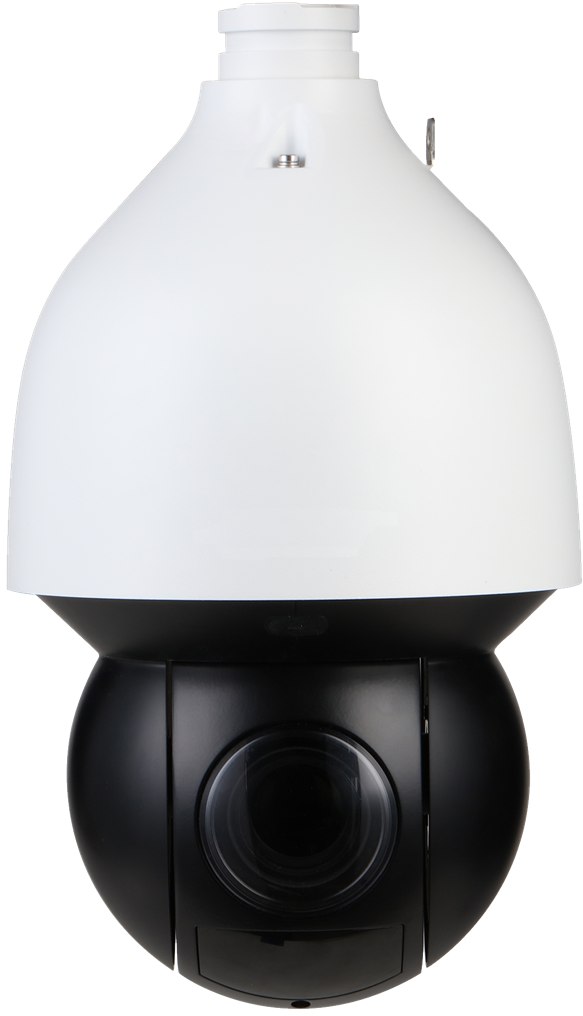

SD5A445XA-HNR - DAHUA DH-SD5A445XA-HNR 4MP 45x Starlight IR PTZ AI Network Camera With Starlight technology Auto-tracking and IVS SMD Plus PoE+ IR distance up to 150m SD5A445XA-HNR PICTURE

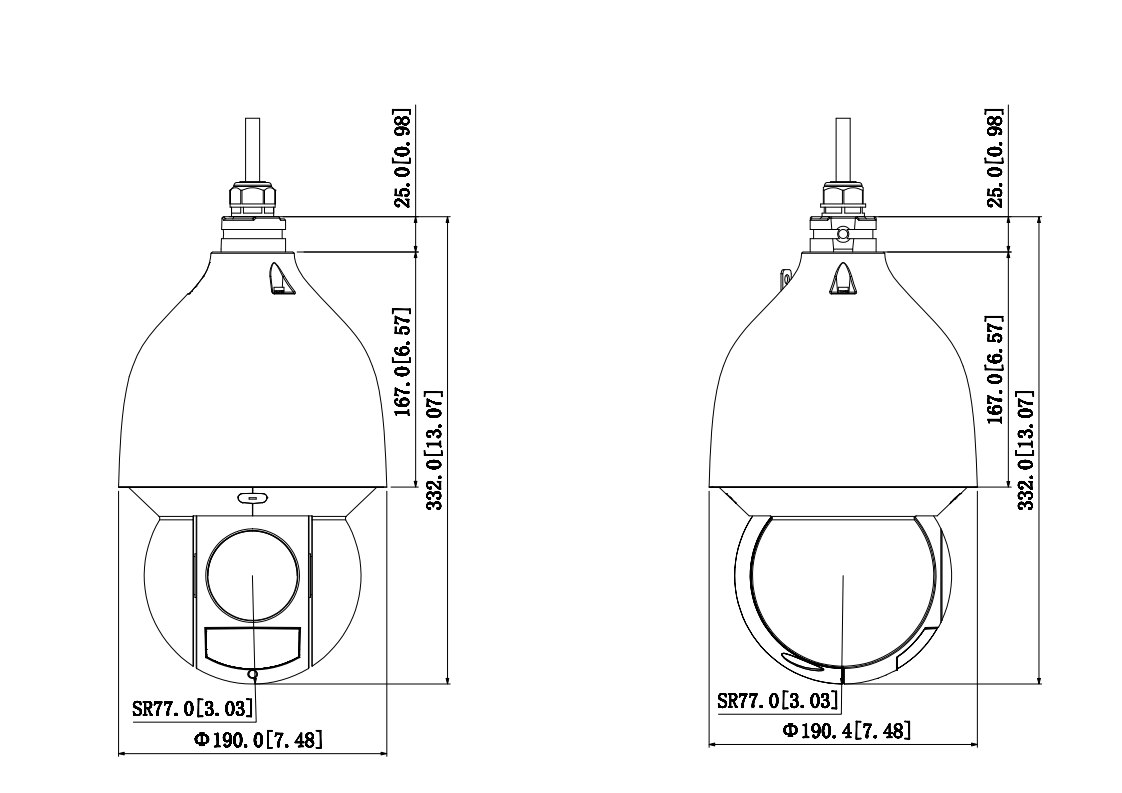

SD5A445XA-HNR - DAHUA DH-SD5A445XA-HNR 4MP 45x Starlight IR PTZ AI Network Camera With Starlight technology Auto-tracking and IVS SMD Plus PoE+ IR distance up to 150m SD5A445XA-HNR  DIMENSIONS

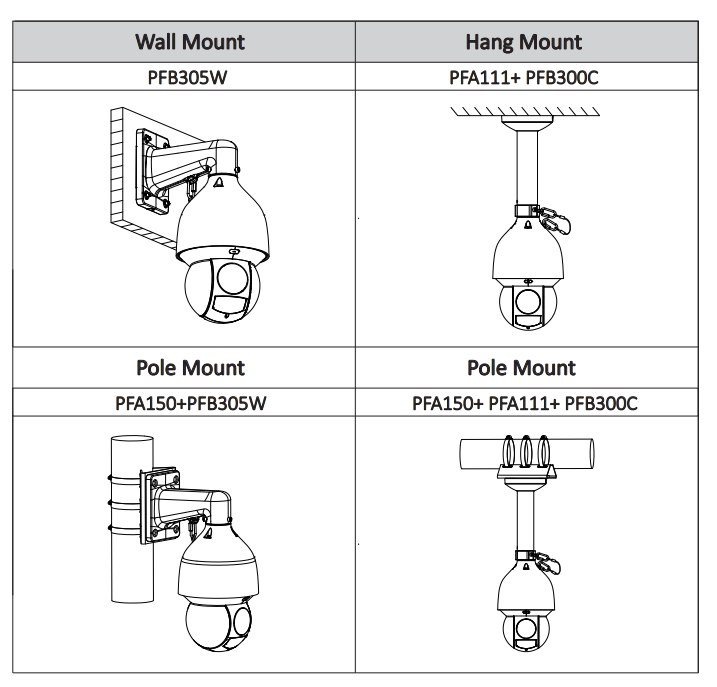

SD5A445XA-HNR - DAHUA DH-SD5A445XA-HNR 4MP 45x Starlight IR PTZ AI Network Camera With Starlight technology Auto-tracking and IVS SMD Plus PoE+ IR distance up to 150m SD5A445XA-HNR  INSTALLATION
